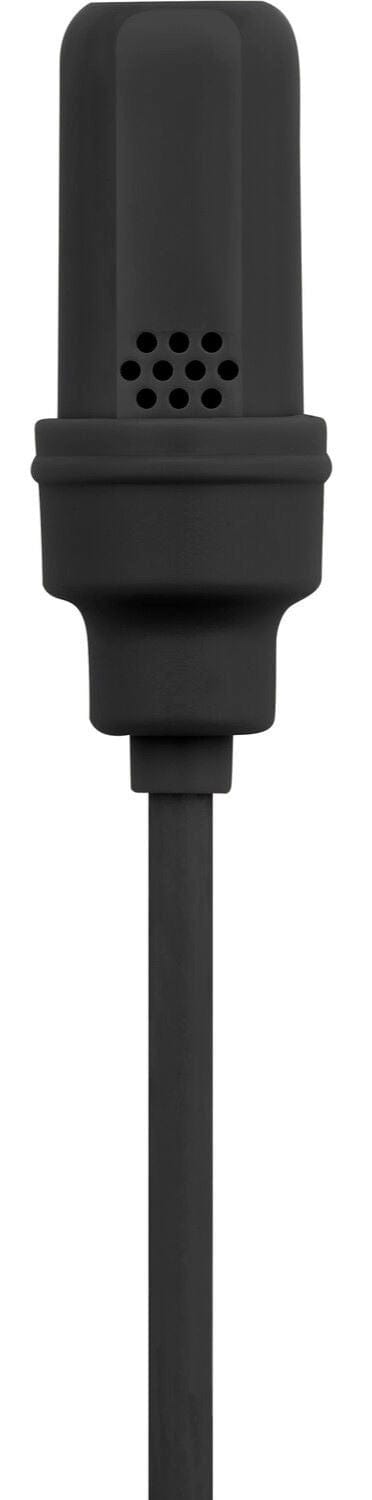

Shure UL4 Lavalier Microphone
Model UL4B-C-MTQG-A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

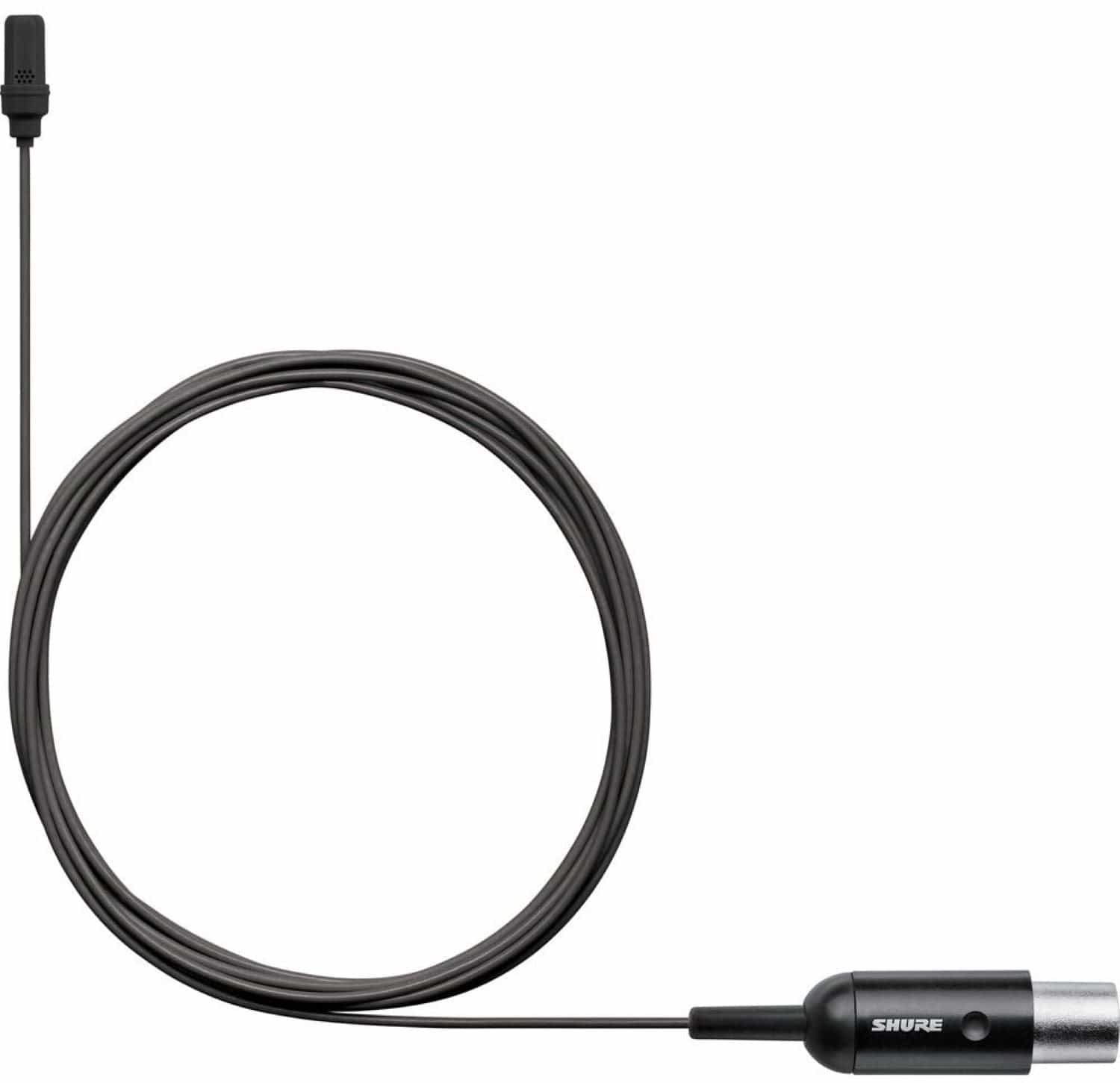

Shure UL4 UniPlex Cardioid Lavalier Microphone
The Shure UniPlex UL4 is a professional MEMS lavalier microphone that is ideal for speech and performance applications in broadcast, corporate, and conference environments. The subminiature design and custom cardioid element provide robust audio performance. Each microphone is supplied with a storage pouch, single tie clip, and snap fit windscreen.
The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero “memory effect,” won’t kink, and is fully paintable.
The Shure UL4 Lavalier Microphone is available with LM3, XLR, or MTQG connectors. It is also available in black, white, tan or cocoa.
See it in detail
Product Video
Why this product
Key Benefits
-
5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
-
Professional sound quality for speech and presentation applications
-
Advanced 1.6 mm Shure Plex cable
:
-
Dual redundant ground in cable serves as secondary shield for unprecedented longevity
-
Immune to memory effect and kinks
-
Fully paintable with typical theater paints, pens, and polishes
-
Available in four colors: Black, Cocoa, Tan, White
-
Available in two connector types: : TA4F (mTQG), LEMO*, and XLR
-

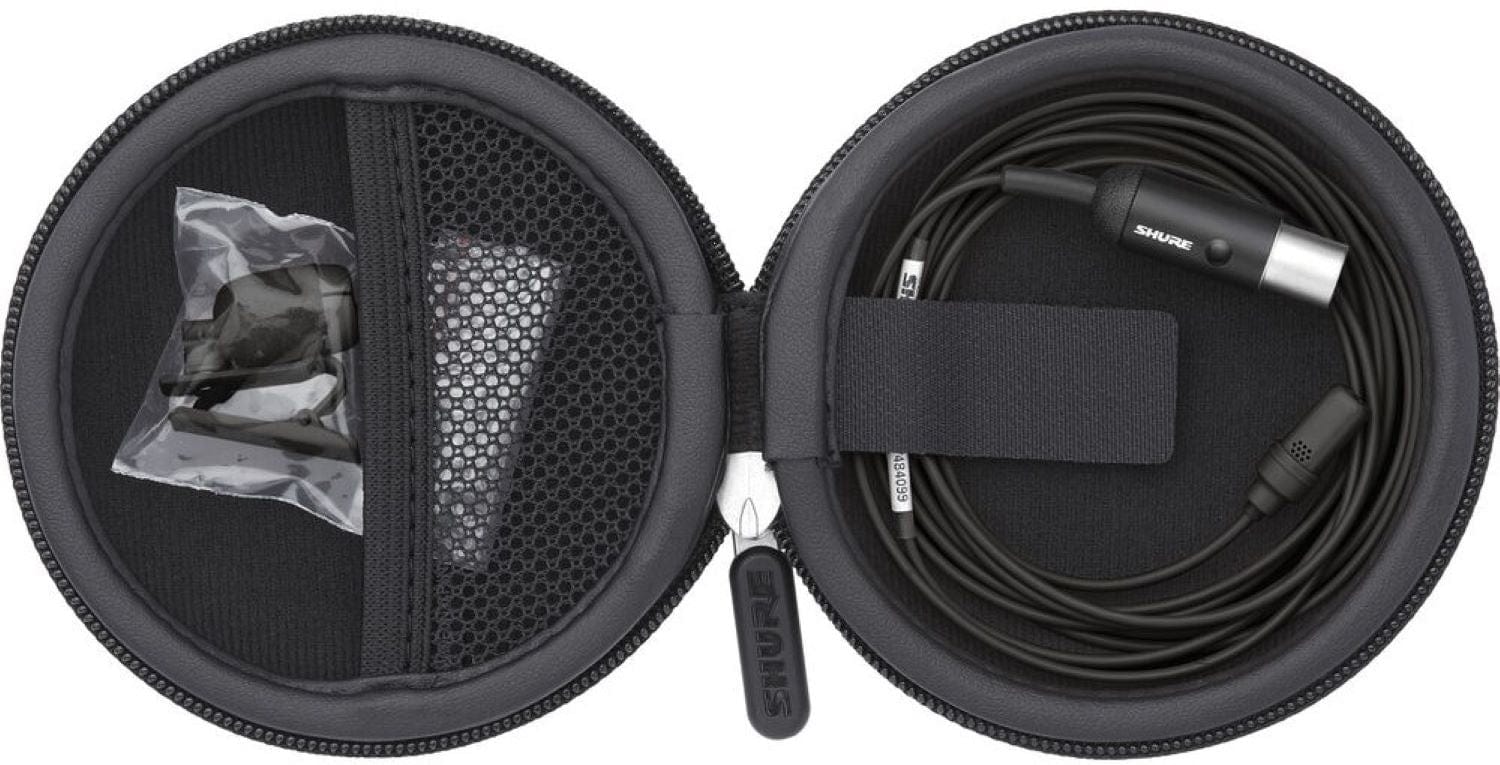

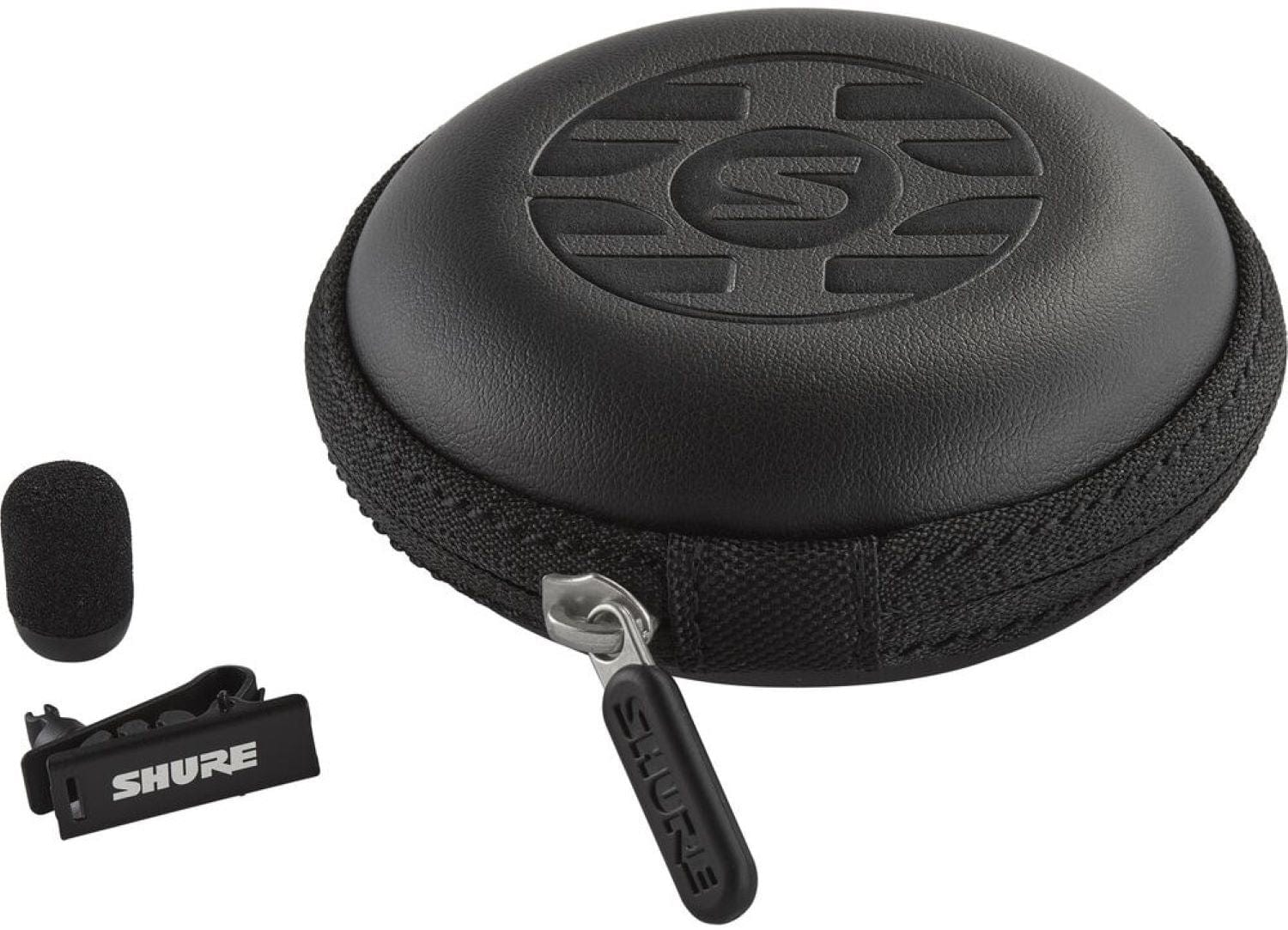

Kit includes the following accessories: Case, Snap-fit Windscreen, Single Tie Clip
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- MEMS
- Polar Pattern
- Cardioid
- Frequency Response
- 40 Hz to 20 kHz
- Sensitivity
- –42.5 dBV/Pa (Pa=94 dB SPL)
- Self-Noise
- 32 dB SPL-A
- Signal-to-Noise Ratio
- 62 dB-A
- Dynamic Range
- 98 dB (Typical)
Connectivity
- Cable Diameter
- 1.6 mm
- Cable Length
- 66.0 in (1.67 m)
Power
- Microphone Current Draw
- 530 µA, maximum
Physical
- Housing
- Molded ABS
- Net Weight
- 12.5 g (0.44 oz)
- Capsule Dimensions (L × D)
- 17 mm × 5 mm
General
- MTQG
- Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- LEMO
- Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
More details
Additional Information
Specifications:
- Maximum SPL: 130.0 dB SPL (1 kHz @ 1% THD, typical)
- Bias Voltage (Recommended Operating Voltage): 3.5-5 VDC (5.5VDC MAX)
- Polarity:
