Product details
Overview

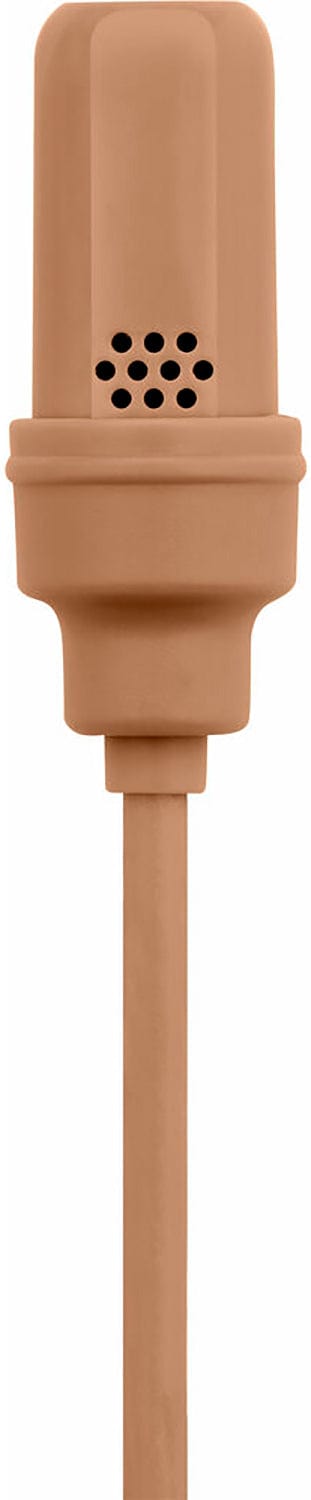

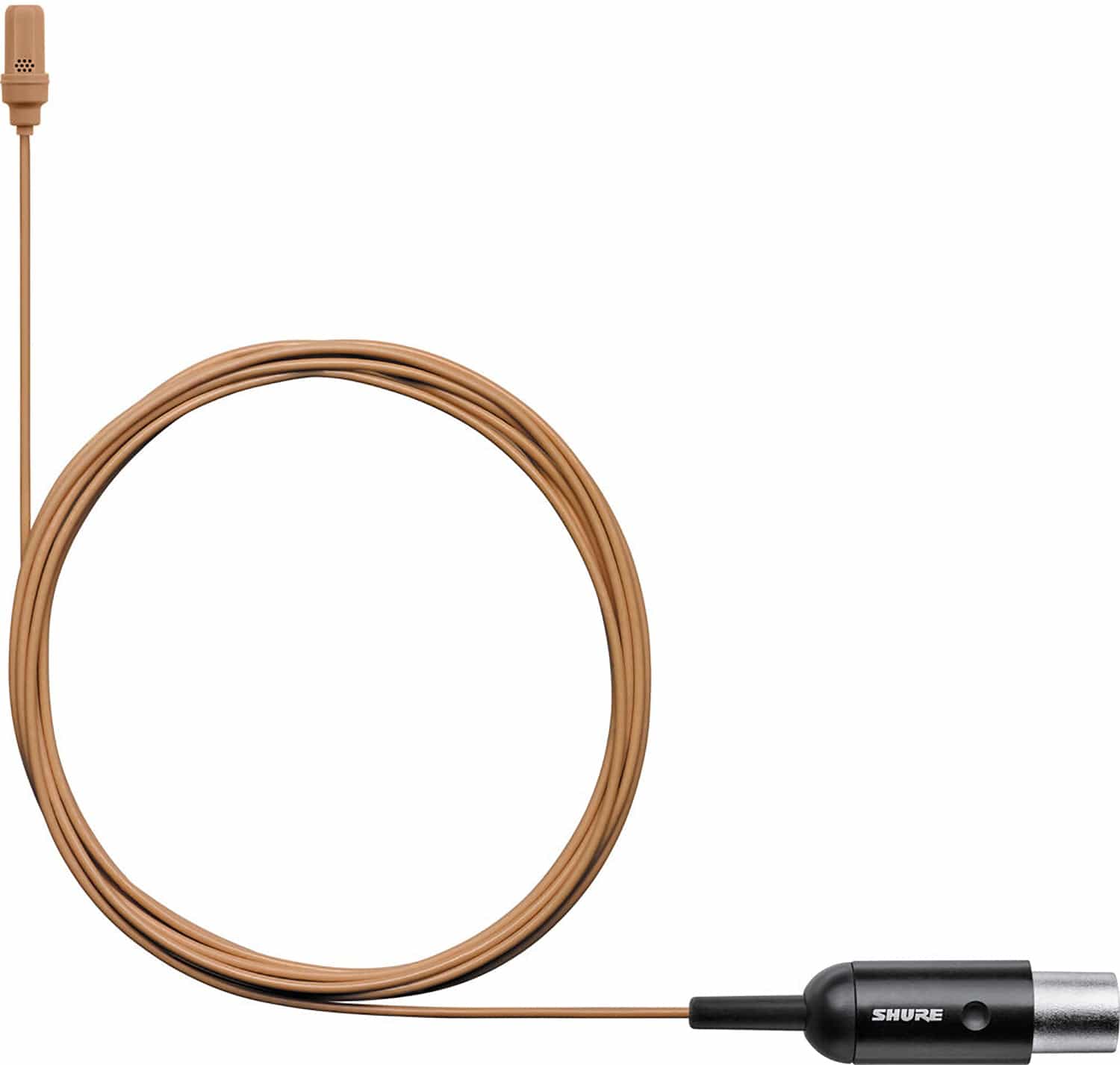

Shure UL4T/C-MTQG-A UniPlex Cardioid Subminiature Lavalier Microphone with MTQG Connector - Tan
The Shure UniPlex UL4 is a professional MEMS lavalier microphone that is ideal for speech and performance applications in broadcast, corporate, and conference environments. The subminiature design and custom cardioid element provide robust audio performance. Each microphone is supplied with a storage pouch, single tie clip, and snap-fit windscreen.
The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground that doubles as a secondary shield. It also offers virtually zero “memory effect,” does not kink, and is fully paintable.
Why this product
Key Benefits
-
5 mm cardioid subminiature design for discrete placement and improved gain-before-feedback
-
Professional sound quality for speech and presentation applications
-
Advanced 1.6 mm Shure Plex cable
:
-
Dual redundant ground in cable serves as secondary shield for unprecedented longevity
-
Immune to memory effect and kinks
-
Fully paintable with typical theater paints, pens, and polishes
-
Colors: Tan
-
Connector type: TA4F (mTQG)
-

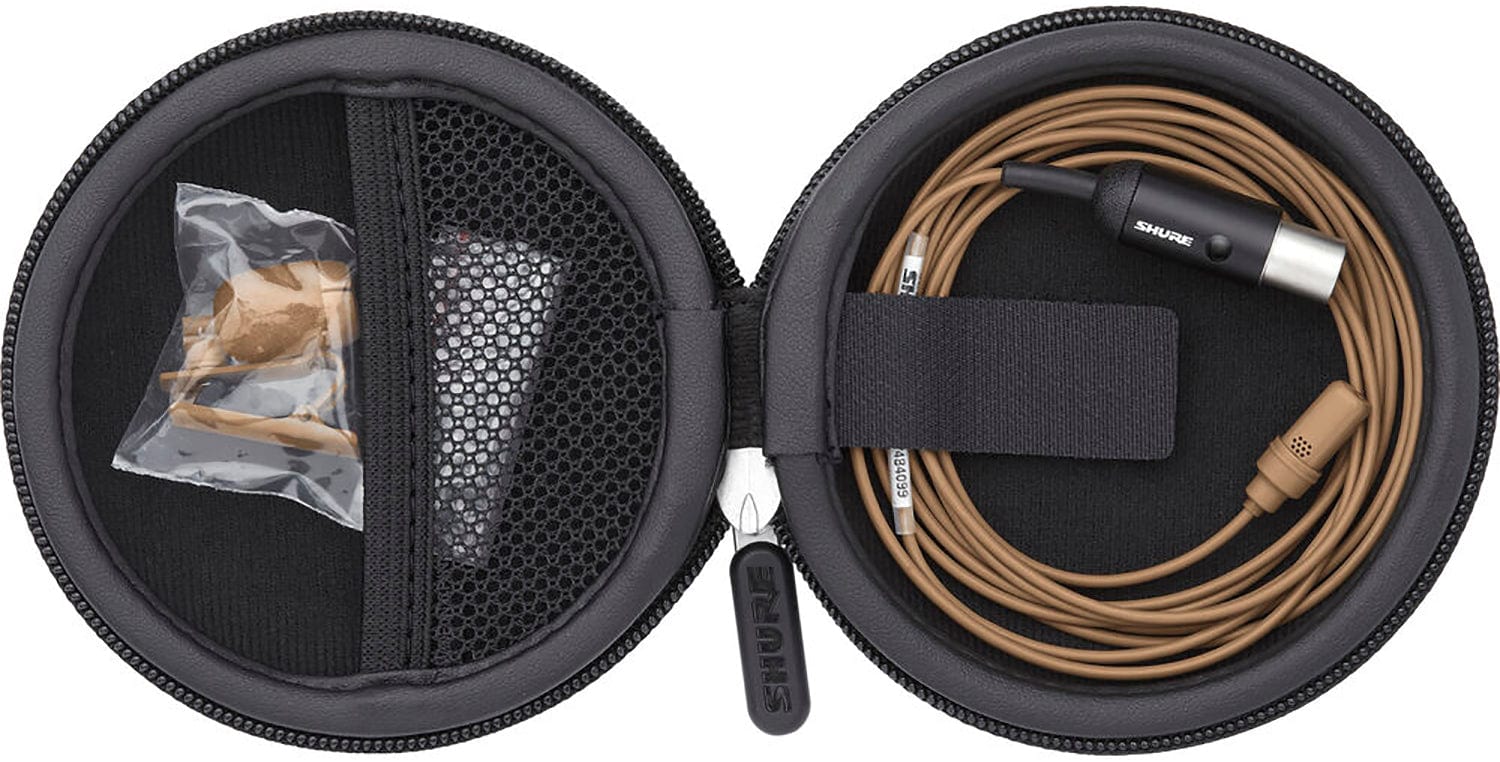

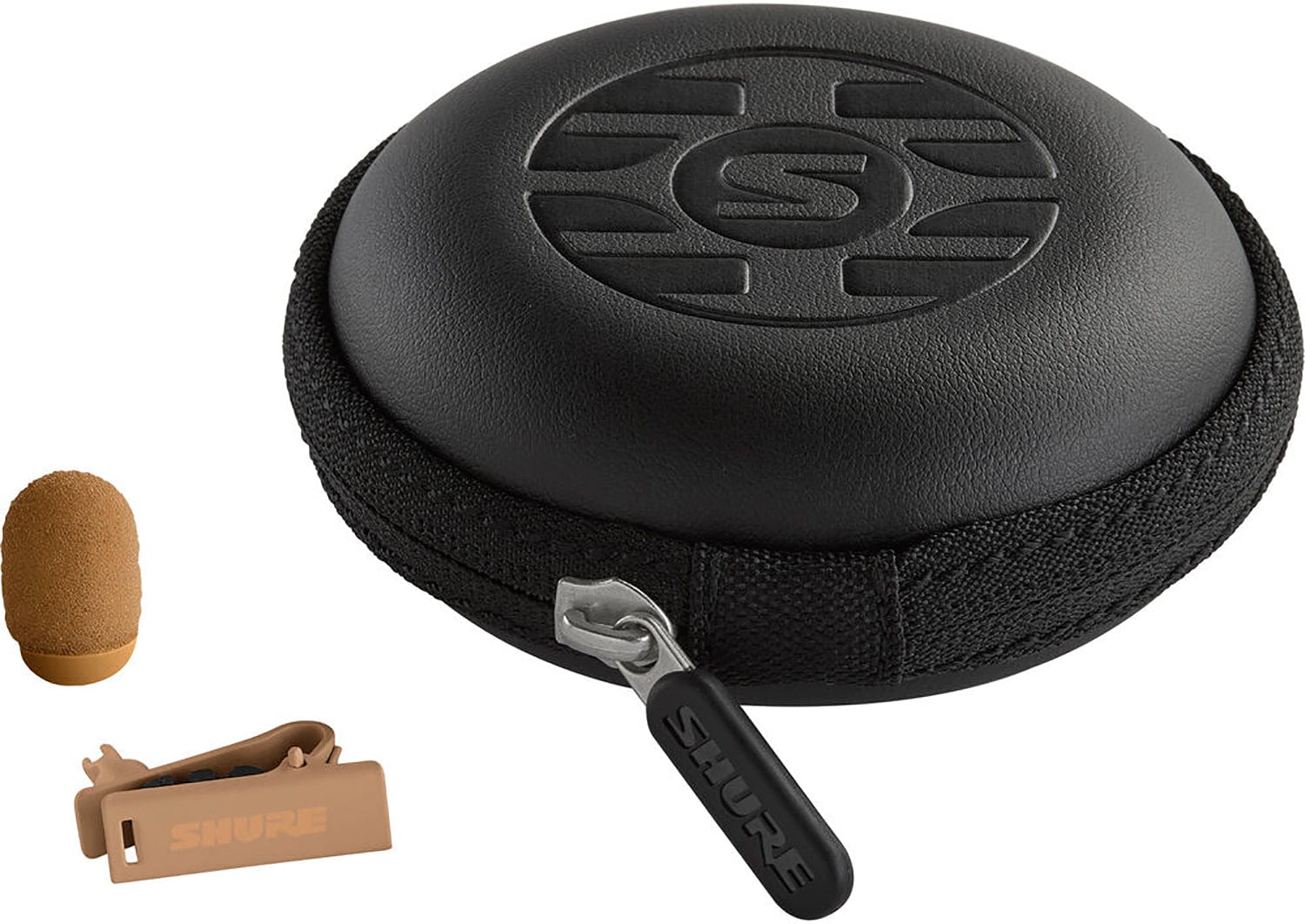

Kit includes the following accessories: Case, Snap-fit Windscreen, Single Tie Clip
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- MEMS
- Polar Pattern
- Cardioid
- Frequency Response
- 40 Hz to 20 kHz
- Sensitivity
- –42.5 dBV/Pa (Pa=94 dB SPL)
- Self-Noise
- 32 dB SPL-A A-weighted, Equivalent Acoustical
- Signal-to-Noise Ratio
- 62 dB-A
- Dynamic Range
- 98 dB Typical
Connectivity
- Polarity
- MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- Cable Diameter
- 1.6 mm
- Cable Length
- 66.0 in (1.67 m)
Power
- Microphone Current Draw
- 530 µA, maximum
Physical
- Housing
- Molded ABS
- Net Weight
- 12.5 g (0.44 oz)
- Capsule Dimensions (L × D)
- 17 mm × 5 mm
More details
Additional Information
Specifications:
- Maximum SPL: 130.0 dB SPL 1 kHz @ 1% THD, typical
- Bias Voltage Recommended Operating Voltage: 3.5-5 VDC (5.5VDC MAX)
