Shure ULXD1LEMO3 Digital Bodypack Transmitter - J50A Band
Model ULXD1LEMO3-J50A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

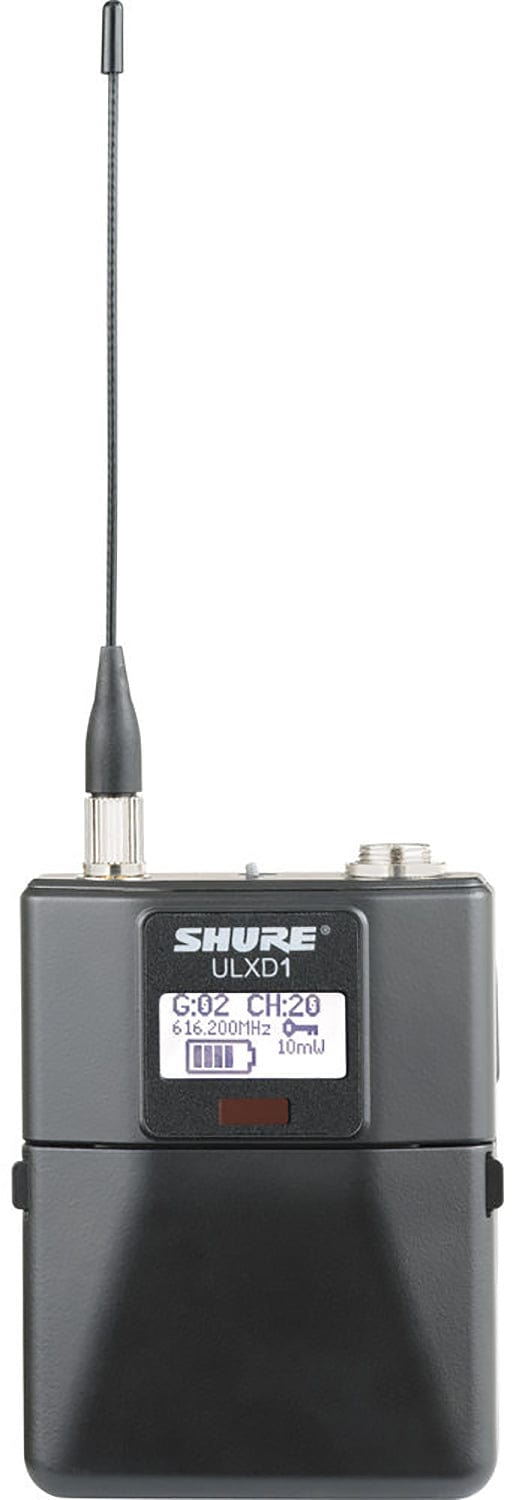

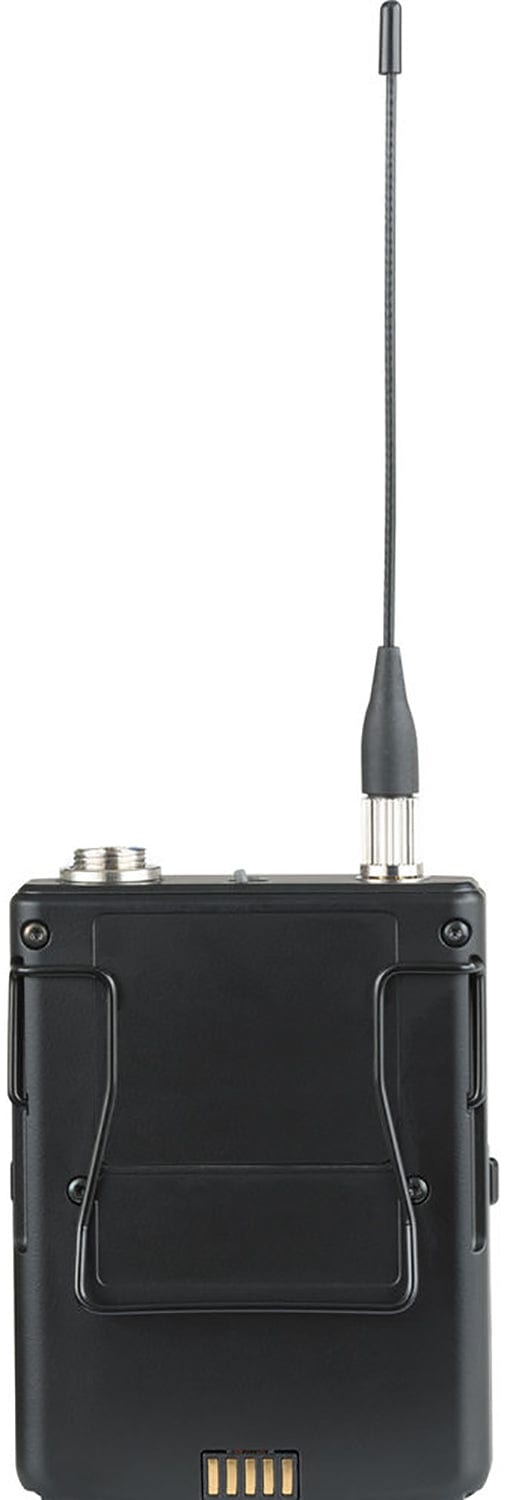

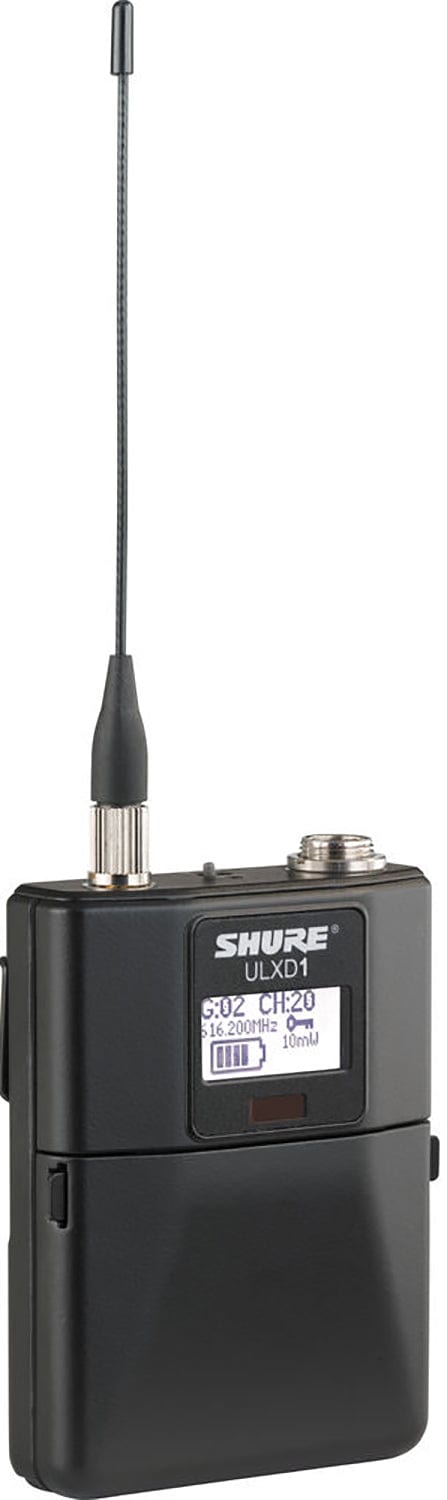

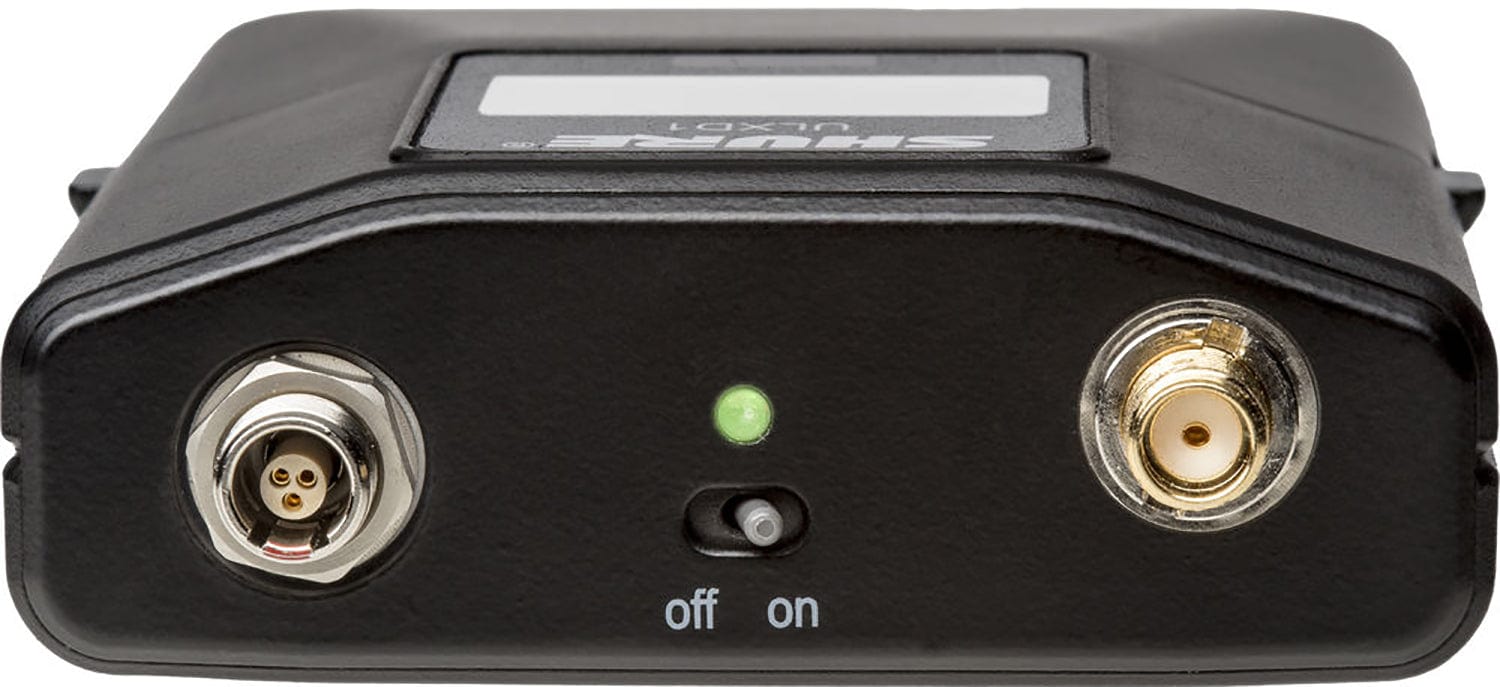

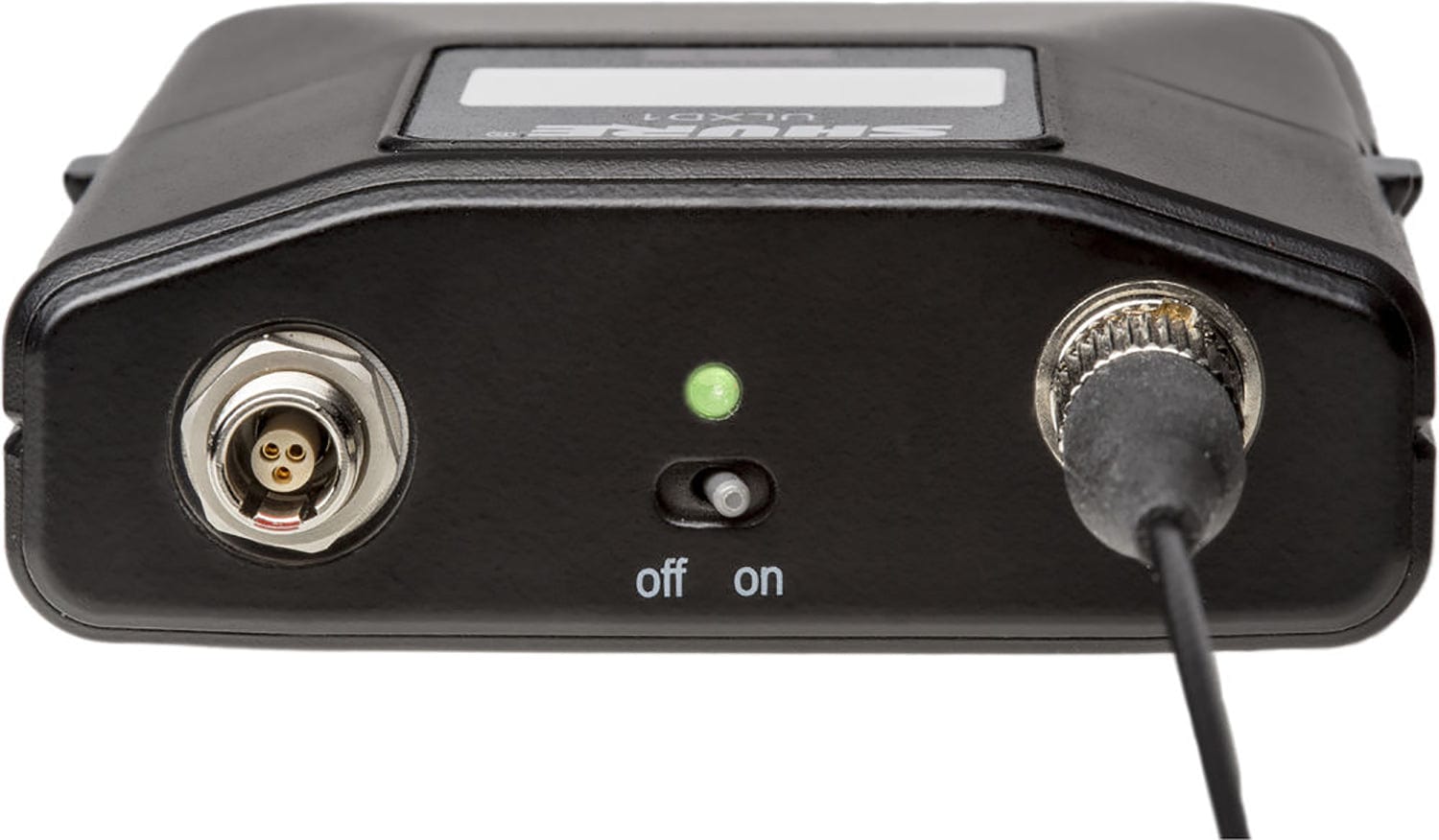

Shure ULXD1LEMO3 Digital Bodypack Transmitter - J50A Band
The Shure ULXD1 is a digital wireless bodypack transmitter compatible with ULX-D receivers. With rugged, yet lightweight aluminum housing, it delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.
Why this product
Key Benefits
-
For ULX-D Digital Systems
-
Use with Lav/Headset Mic or Instrument
-
TA4M Connector
-
Automatic Gain Adjustment
-
1/10/20mW RF Output Power
-
Detachable Antenna
-
Mute Mode, Backlit LCD
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
12-Hour SB900A Rechargeable Battery
Technical details
Technical Specifications
Microphone
- Audio Input Level
- 20.5 dBV (Max, Pad On)
- Gain Range
- 0 to +21 dB (3 dB Steps)
Wireless
- RF Frequency Band
- J50A (572 to 608 MHz - 614 to 616 MHz)
- RF Bandwidth
- 44 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 328.1' / 100 m
- Latency
- < 2.9 ms
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Bodypack
- RF Output Power
- 1 / 10 / 20 mW
- Sync Method
- IR
- Antenna
- 1 x 1/4 Wave External, Detachable (Beltpack)
Battery
- Battery Type
- 2 x AA
- Approx. Battery Life
- 11 Hours (Alkaline)
Connectivity
- Sample Rate/Resolution
- 48 kHz / 24-Bit
- Audio I/O
- 1 x LEMO 3-Pin Female Unbalanced Input
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1 x Backlit LCD (Channel, Group, Mute, Power, RF Output Power)
- Housing
- Aluminum
- Dimensions
- 2.6 x 3.4 x 0.9" / 66 x 86 x 23 mm
- Weight
- 5 oz / 142 g (without Batteries)
Shipping & Packaging
- Package Weight
- 0.95 lb
- Box Dimensions (LxWxH)
- 12.7 x 4.9 x 3.4"
General
- Muting
- Off/On Switch
