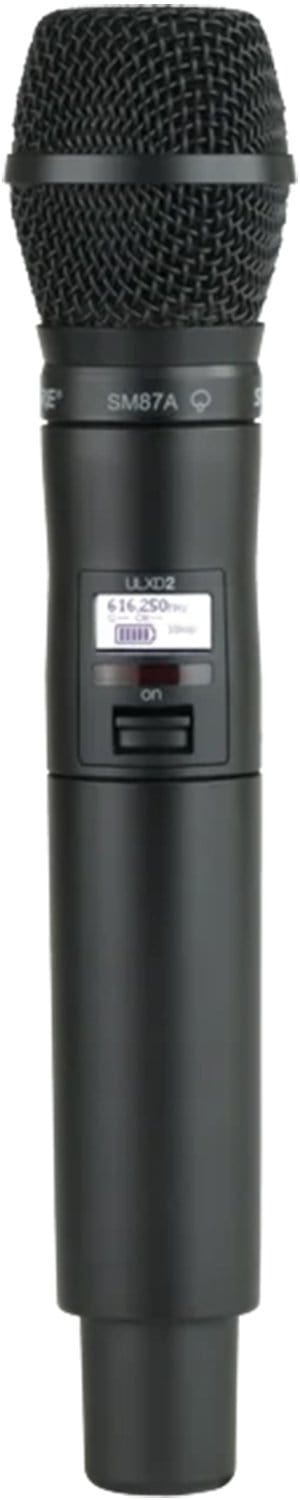

Shure ULXD2-H50 Digital Handheld Transmitter H50
Model TZ-ULXD2-H50
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure ULXD2-H50 Digital Handheld Transmitter H50
The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D® Digital Wireless Systems. Offering premium 20 Hz – 20 kHz audio quality, advanced rechargeability options, and a wide selection of interchangeable Shure microphone heads, the ULXD2 delivers uncompromising wireless performance for professional sound reinforcement applications. The ULXD2 is offered with SM58®, SM86, SM87A, Beta 58A®, Beta 87A, and Beta 87C.
Why this product
Key Benefits
-
20 Hz to 20 kHz range with flat frequency response (actual response is microphone dependent)
-
AES 256-bit encryption-enabled for applications where secure transmission is needed
-
>120 dB dynamic range
-
1, 10, and 20 mW selectable RF output power
-
5 segment battery fuel gauge
-
Shure lithium-ion rechargeable battery pack provides up to 9 hours of battery life, precision metering, and zero memory effect
-
Up to 8 hours continuous use with 2 x AA batteries
-
Backlit LCD with easy to navigate menu and controls
-
Available with TA4M and LEMO3 input connectors
-
100 meter (300 ft) operating range
-
Rugged metal construction
-
Frequency and power lockout
Technical details
Technical Specifications
Microphone
- Gain Offset Range
- 0 to 21 dB (in 3 dB steps)
Wireless
- V50, V51 Bands
- 278 mm × 51 mm (10.9 in. × 2.0 in.) L × Dia.
- V50, V51 Bands
- 348 g (12.3 oz.), without batteries
- Antenna Type
- Integrated Single Band Helical
- Occupied Bandwidth
- <200 kHz
- Modulation Type
- Shure Proprietary Digital
Battery
- Battery Type
- Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Power
- Power
- 1 mW, 10 mW, 20 mW
Physical
- Housing
- Machined aluminum
General
- Shure SB900A
- up to 9
- Alkaline
- 8 hours
- Configuration
- Unbalanced
- Note
- Dependent on microphone type
More details
Additional Information
Specifications:
- Battery Runtime @ 10 mW:
- Dimensions:
- 256 mm × 51 mm (10.1 in. × 2.0 in.) L × Dia.
- Weight:
- 340 g (12.0 oz.), without batteries
- AUDIO INPUT
- Maximum Input Level 1 kHz at 1% THD:
- 145 dB SPL (SM58), typical
- Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20: 120 dBV, A-weighted, typical
- Maximum Input Level 1 kHz at 1% THD:
- RF OUTPUT
