Shure ULXD2/KSM9 Digital Handheld Transmitter
Model ULXD2-KSM9-G50
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

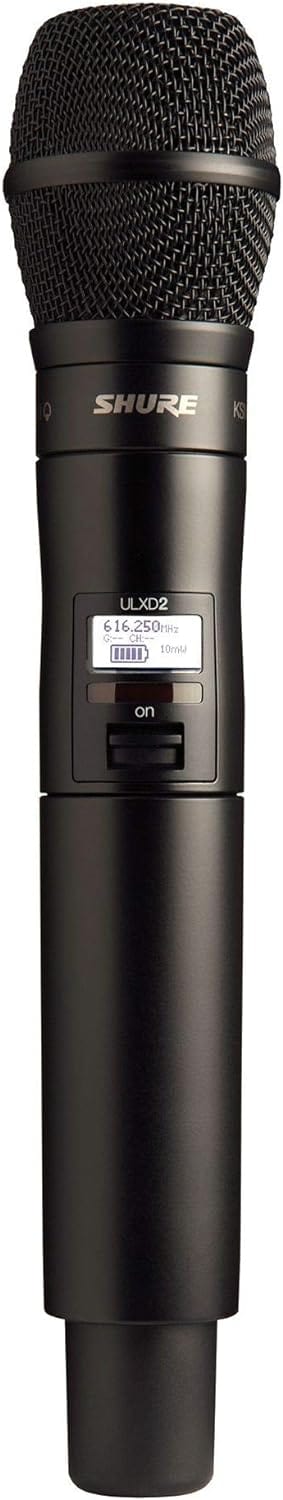

Shure ULXD2/KSM9 Digital Handheld Transmitter with KSM9 Capsule
The Shure ULXD2/KSM9 is a digital handheld wireless microphone transmitter compatible with ULX-D receivers. It comes equipped with a dual-diaphragm KSM9 condenser capsule that captures sonic nuances with superior detail, delivering precise vocal reproduction for high-end live performance.
The Shure ULXD2/KSM9 Digital Handheld Transmitter is available with G50, V50 or X52 frequency bands.
Why this product
Key Benefits
-
For ULX-D Digital Systems
-
KSM9 Condenser Mic Capsule
-
Supercardioid/Cardioid Polar Pattern
-
Interchangeable Capsule Design
-
Automatic Gain Adjustment
-
1/10/20mW RF Output Power
-
Mute Mode, Backlit LCD
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
12 Hr with SB900A Rechargeable Battery
Technical details
Technical Specifications
Microphone
- Gain Range
- 0 to 21 dB (3 dB Steps)
- Microphone Type
- Handheld
- Sound Field
- Mono
- Capsule
- Electret Condenser
- Polar Pattern
- Cardioid, Supercardioid
- Frequency Range
- 50 Hz to 20 kHz
- SNR
- 72 dB
- Hypercardioid
- 130.8 dB
- Wide-Angle Cardioid
- 131.3 dB
- Maximum SPL
- 152 dB SPL
- Sensitivity
- -51 dBV/Pa at 1 kHz
Wireless
- RF Frequency Band
- G50 (470 to 534 MHz)
- RF Bandwidth
- 64 MHz
- Frequency Step Size
- 25 kHz
- Max Operating Range
- 328.1' / 100 m
- Latency
- < 2.9 ms
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Handheld
- RF Output Power
- 1 / 10 / 20 mW (Switchable)
- Sync Method
- IR
- Antenna
- 1 x Internal Single-Band Helical
Connectivity
- Audio I/O
- No
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1 x Backlit LCD (Battery Status, Channel, Group, Mute, RF Output Power, Sync)
- Housing
- Aluminum
- Dimensions
- 10.1 x 2" / 256 x 51 mm
- Weight
- 12 oz / 340 g
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
Shipping & Packaging
- Package Weight
- 1.575 lb
- Box Dimensions (LxWxH)
- 12.75 x 4.9 x 3.55"
General
- Muting
- Off/On Switch
- Med.
- 11 Hours (Alkaline)
- Med.
- 12 Hours (Lithium Shure SB900A)
More details
Additional Information
Specifications:
- Transmitter:
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Battery Type:
- Microphone:
- Dynamic Range:
- Dynamic Range:
- Packaging Info:
