Shure ULXD2/SM87 Digital Handheld Transmitter with SM87 Capsule - X52 Band
Model ULXD2-SM87-X52
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

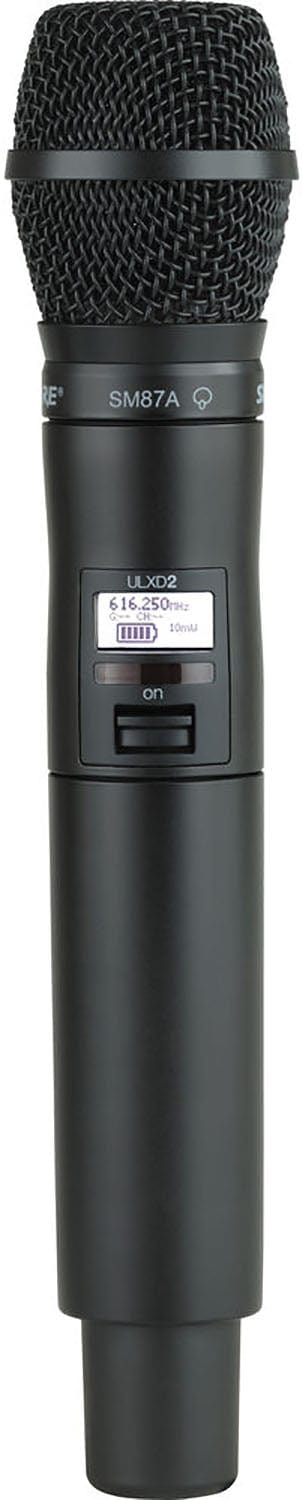

Shure ULXD2/SM87 Digital Handheld Transmitter with SM87 Capsule - X52 Band
The Shure ULXD2/SM87 is a digital handheld wireless microphone transmitter compatible with ULX-D receivers. It comes equipped with the SM87A supercardioid condenser capsule designed to withstand extreme sound pressure levels, while still delivering a remarkably smooth frequency response for vocal performers and presenters. The capsule features a supercardioid polar pattern that rejects off-axis background noise, helping to reduce feedback.
Why this product
Key Benefits
-
For ULX-D Digital Systems
-
SM87A Supercardioid Condenser Mic
-
Interchangeable Capsule Design
-
Automatic Gain Adjustment
-
1/10/20mW RF Output Power
-
Mute Mode, Backlit LCD
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
12 Hr with SB900A Rechargeable Battery
Technical details
Technical Specifications
Microphone
- Gain Range
- 0 to 21 dB (3 dB Steps)
- Microphone Type
- Handheld Capsule
- Sound Field
- Mono
- Capsule
- Electret Condenser
- Polar Pattern
- Supercardioid
- Frequency Range
- 50 Hz to 20 kHz
- SNR
- 70 dB
- Maximum SPL
- 147 dB SPL
- Sensitivity
- -52.5 dBV/Pa
- Dynamic Range
- 116.5 dB A-Weighted
Wireless
- RF Frequency Band
- X52 (902 to 928 MHz)
- RF Bandwidth
- 26 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 328.1' / 100 m
- Latency
- < 2.9 ms
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Handheld
- RF Output Power
- 1 / 10 / 20 mW (Switchable)
- Sync Method
- IR
- Antenna
- 1 x Internal Single-Band Helical
Connectivity
- Sample Rate/Resolution
- 48 kHz / 24-Bit
- Audio I/O
- No
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1 x Backlit LCD (Battery Status, Channel, Group, Mute, RF Output Power, Sync)
- Housing
- Aluminum
- Dimensions
- 10.1 x 2" / 256 x 51 mm
- Weight
- 12 oz / 340 g
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
Shipping & Packaging
- Package Weight
- 1.45 lb
- Box Dimensions (LxWxH)
- 12.7 x 4.9 x 3.5"
General
- Muting
- Off/On Switch
- Med.
- 11 Hours (Alkaline)
- Med.
- 12 Hours (Lithium Shure SB900A)
More details
Additional Information
Specifications:
- Transmitter:
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Battery Type:
- Microphone:
- Packaging Info:
