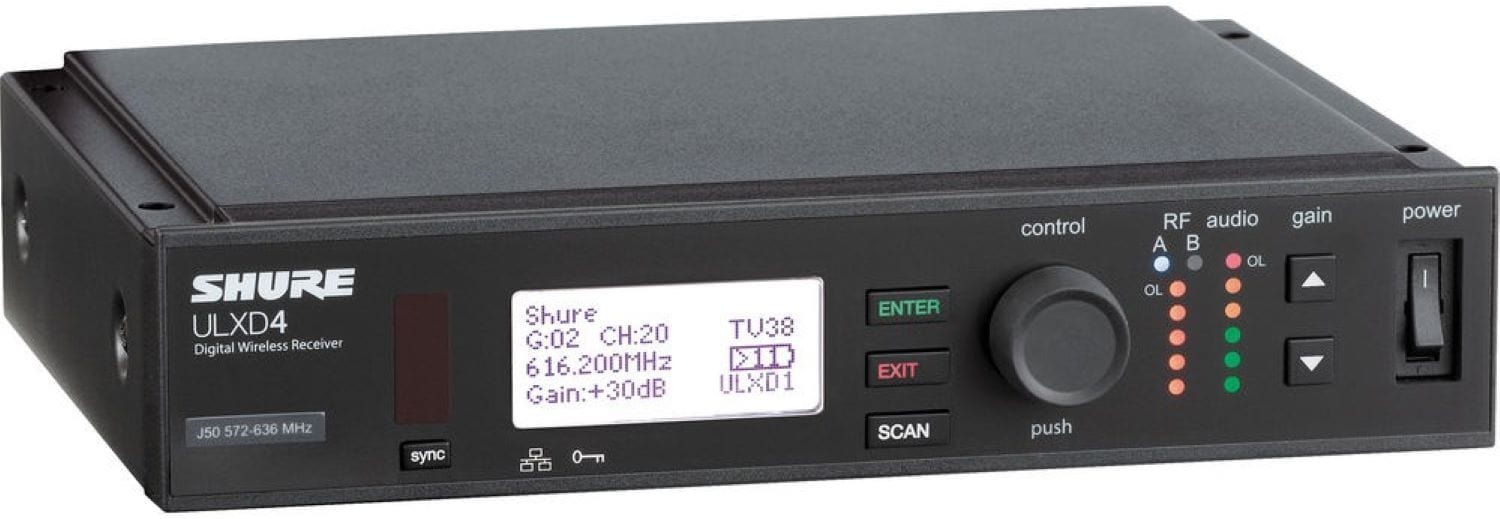

Shure ULXD4 Digital Wireless Receiver - G50 Band
Model ULXD4-G50
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure ULXD4 Digital Wireless Receiver - G50 Band
Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.
Why this product
Key Benefits
-
Digital Predictive Switching Diversity
-
Up to 72 MHz tuning range (region dependent)
-
Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
-
Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
-
Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
-
Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control
-
Compatible with AMX and Crestron control systems
-
Interference detection and alerts
-
Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
-
Removable half wave antennas
-
24 bit / 48 kHz digital audio
-
20 Hz – 20 kHz frequency range with flat response
-
Greater than 120 dB dynamic range
-
Up to 22 active transmitters in one 8 MHz TV channel in standard mode; High Density mode enables up to 63 active transmitters in one 8 MHz TV channel
-
AES-256 bit encryption equipped for secure wireless transmission
Technical details
Technical Specifications
Microphone
- Gain Range
- -18 to +42 dB (1 dB Steps)
- Pad
- 30 dB
- Frequency Response
- 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Wireless
- Wireless Technology
- Digital UHF
- Diversity
- Antenna Diversity
- Max Operating Range
- 328.1' / 100 m
- Receiver Type
- Tabletop
- Number of RF Channel Frequencies
- 2560
- RF Bandwidth
- 64 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Transmitters per Band
- 60
- Latency
- < 2.9 ms
- Modulation
- Proprietary
- Antenna
- 2 x 1/2 Wave External, BNC (Rear-Mount)
- Approximate RF Sensitivity
- -98 dBm
- Adjacent Channel Isolation
- >70 dB
Connectivity
- Number of Audio Channels
- 1
- Network I/O
- 1 x RJ45 (10/100 Mb/s)
- XLR Output
- +18 dBV (Line Level)
- XLR Output
- -12 dBV (Mic Level)
- 1/4" Output
- +12 dBV (Consumer Level, Instrument Level)
- Network Protocols
- DHCP, Manual IP
- Standalone Audio Interface Capable
- No
- XLR Output
- 100 Ohms (Balanced)
Power
- Power Requirements
- AC/DC Power Adapter
- Antenna Bias Voltage
- 12 to 13 VDC, 150 mA (per Antenna)
- Phantom Power Protection
- On 1/4", XLR Outputs
- AC/DC Power Adapter
- 15 VDC at 600 mA (Included)
- DC Input Power
- 15 VDC at 600mA
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz at 250 mA
Physical
- Mounting Options
- Rackmount, Tabletop (with Included Hardware)
- Housing
- Steel
- Dimensions
- 6.7 x 1.7 x 7.8" / 171 x 44 x 197 mm
- Weight
- 2 lb / 0.9 kg
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
Shipping & Packaging
- Package Weight
- 6.5 lb
- Box Dimensions (LxWxH)
- 18.347 x 14.567 x 3.622"
General
- G50
- 470 to 534 MHz
- Timecode Support
- No
- Yes
- Android & iOS
- App Name
- ShurePlus Channels
- Functionality
- Remote Control
- Rackmount Size
- 1 RU (1/2 Rack)
- Rejection
- >80 dB
More details
Additional Information
Specifications
- Key Specs:

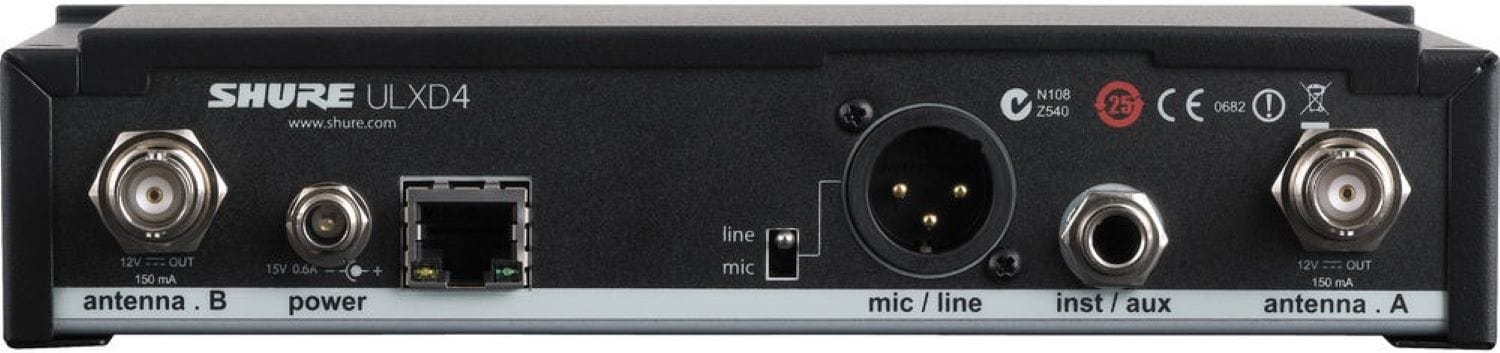

- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4" TRS Female Balanced Output
- RF Frequency Band:
- Mobile App Compatible:
- OS Compatibility:
- Windows 10 or Later
- macOS 10.14 or Later
- Receiver:
- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4" TRS Female Balanced Output
- Audio Output Level :
- Impedance:
- Spurious:
- Display & Indicators:
- 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
- 2 x Multi-Segment LED (AF Level, Output Level, Peak)
- Audio I/O:
- Packaging Info:
