Product details
Overview

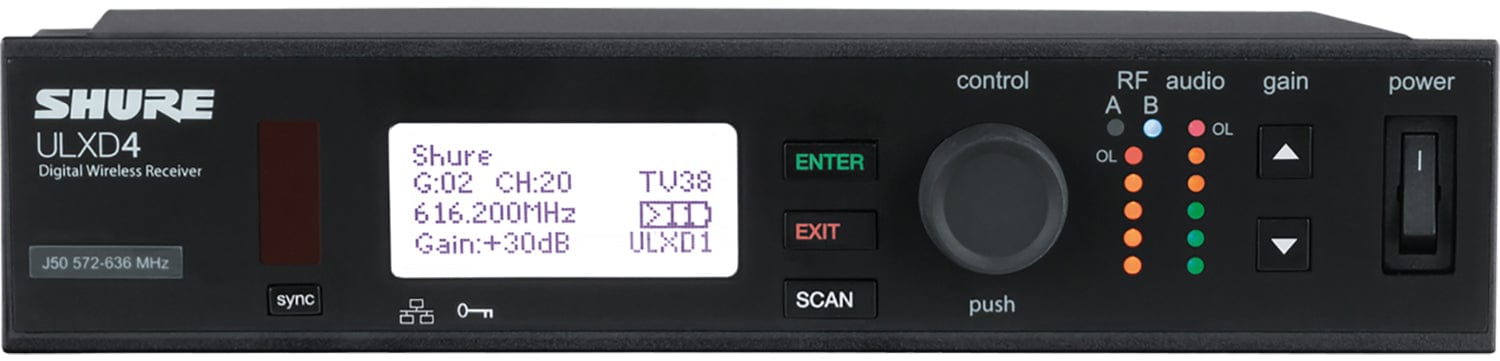

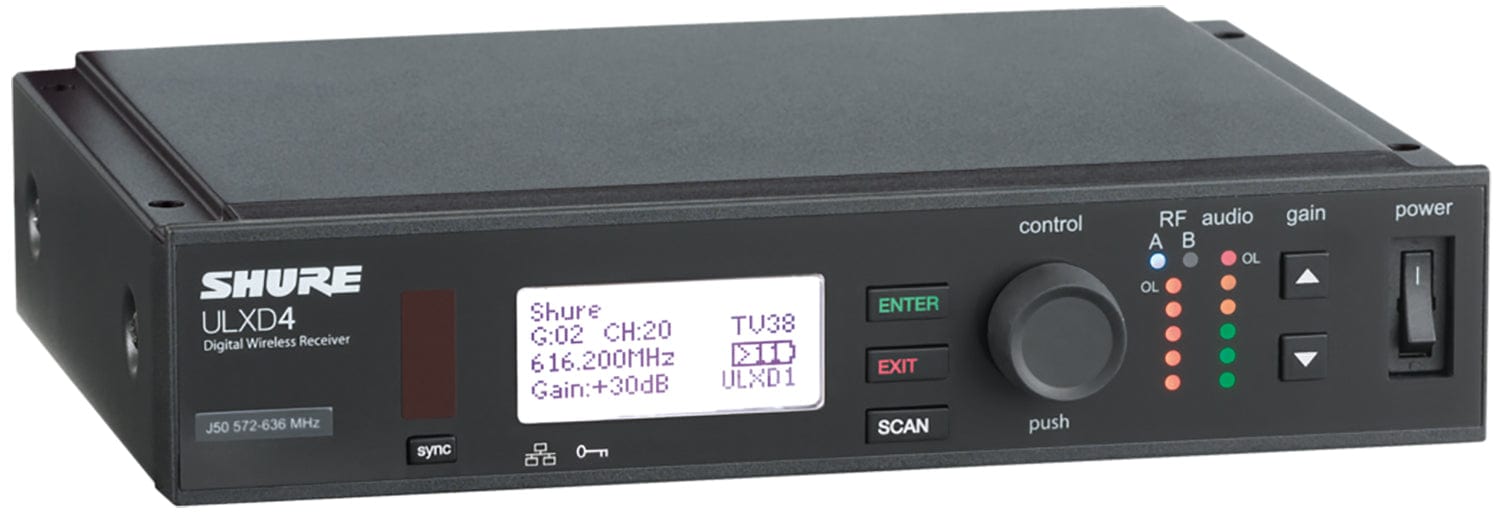

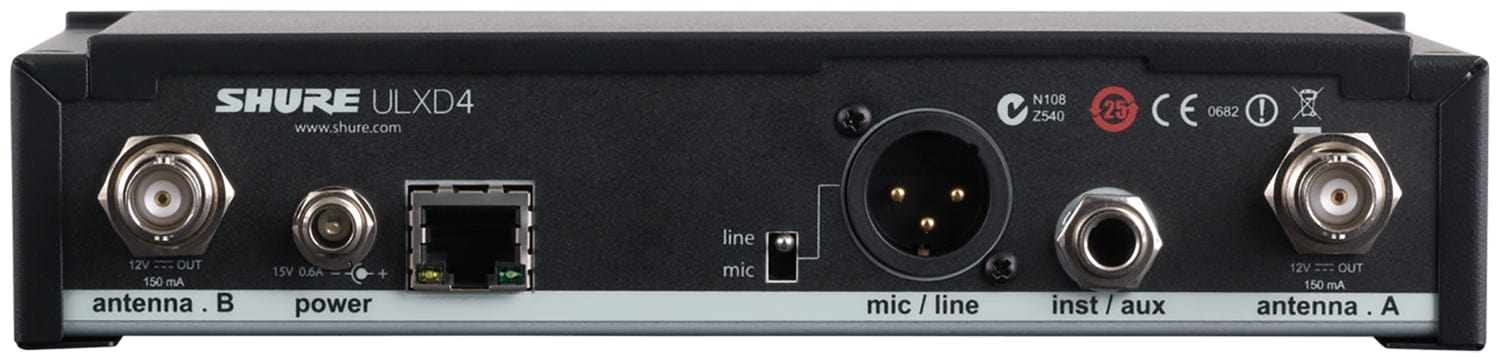

Shure ULXD4 Digital Wireless Receiver
The ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D digital wireless systems. With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.
Why this product
Key Benefits
-
Digital Predictive Switching Diversity
-
Up to 72 MHz tuning range (region dependent)
-
Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
-
Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
-
Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
-
Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control
-
Compatible with AMX and Crestron control systems
-
Interference detection and alerts
-
Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
-
Removable half wave antennas
-
24 bit / 48 kHz digital audio
-
20 Hz – 20 kHz frequency range with flat response
-
Greater than 120 dB dynamic range
-
Up to 22 active transmitters in one 8 MHz TV channel in standard mode; High Density mode enables up to 63 active transmitters in one 8 MHz TV channel
-
AES-256 bit encryption equipped for secure wireless transmission
Technical details
Technical Specifications
Microphone
- Gain Range
- -18 to +42 dB (1 dB Steps)
- Pad
- 30 dB
- Frequency Response
- 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Wireless
- Number of RF Channel Frequencies
- 2560
- Diversity
- Antenna Diversity
- RF Bandwidth
- 64 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 328.1' / 100 m
- Max Transmitters per Band
- 60
- Latency
- < 2.9 ms
- Modulation
- Proprietary
- Receiver Type
- Tabletop
- Antenna
- 2 x 1/2 Wave External, BNC (Rear-Mount)
- Approximate RF Sensitivity
- -98 dBm
- Adjacent Channel Isolation
- >70 dB
Connectivity
- Number of Audio Channels
- 1
- XLR Output
- +18 dBV (Line Level)
- XLR Output
- -12 dBV (Mic Level)
- 1/4" Output
- +12 dBV (Consumer Level, Instrument Level)
- Network I/O
- 1 x RJ45 (10/100 Mb/s)
- Network Protocols
- DHCP, Manual IP
- Impedance
- XLR Output (100 Ohms (Balanced))
Power
- Antenna Bias Voltage
- 12 to 13 VDC, 150 mA (per Antenna)
- Phantom Power Protection
- On 1/4", XLR Outputs
- Power Requirements
- AC/DC Power Adapter
- AC/DC Power Adapter
- 15 VDC at 600 mA (Included)
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz at 250 mA
Physical
- Mounting Options
- Rackmount, Tabletop (with Included Hardware)
- Housing
- Steel
- Dimensions
- 6.7 x 1.7 x 7.8" / 171 x 44 x 197 mm
- Weight
- 2 lb / 0.9 kg
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
Shipping & Packaging
- Package Weight
- 6.5 lb
- Box Dimensions (LxWxH)
- 18.346 x 14.882 x 3.622"
General
- Rackmount Size
- 1 RU (1/2 Rack)
- Spurious
- Rejection ( >80 dB)
More details
Additional Information
Specifications:
- Receiver:
- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4" TRS Female Balanced Output
- Audio Output Level:
- Display & Indicators:
- 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
- 2 x Multi-Segment LED (AF Level, Output Level, Peak)
- Audio I/O:
- Packaging Info:
