Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver - J50A Band
Model ULXD4DGV-J50A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver - J50A Band

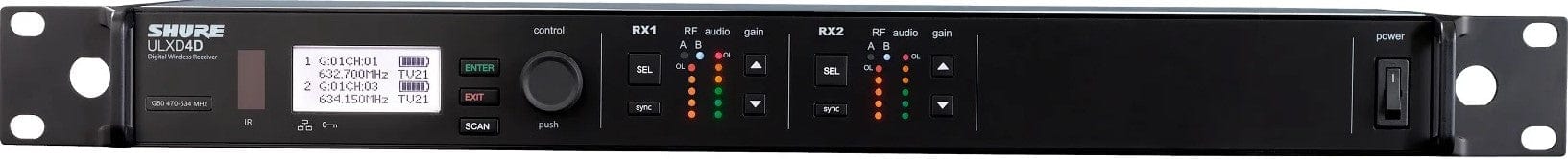

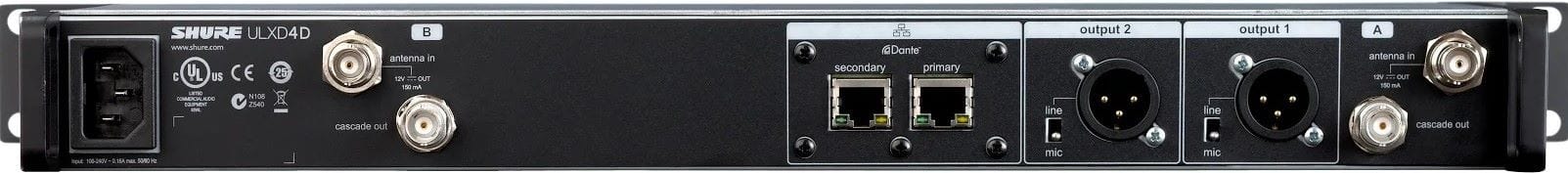

Part of the ULX-D wireless series, the Shure ULXD4D houses 2 independent digital receivers in a rugged, single-rack unit with an internal power supply. This GV version of the receiver features always-on AES-256 encryption and is designed for government and high-level executive applications where sensitive audio information may be transmitted. Two Ethernet ports support Dante digital audio, while RF cascade ports allow for antenna signal distribution to another receiver unit. Audio summing enables the receiver to function as a 2-channel mixer.
Why this product
Key Benefits
-
Secure Always-On AES-256 Encryption
-
For Sensitive Government & Business Work
-
2 x Digital Audio Channels, 1 Rackspace
-
64 MHz Tuning Range
-
Expandable up to 60 Channels
-
2 x Ethernet/Dante Ports
-
2 x RF Cascade Ports
-
Audio Summing
Technical details
Technical Specifications
Microphone
- Gain Range
- -18 to +42 dB (1 dB Steps)
- Pad
- 30 dB
- Frequency Response
- 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Wireless
- Number of RF Channel Frequencies
- 1760
- Diversity
- Antenna Diversity
- RF Frequency Band
- J50A (572 to 608 MHz - 614 to 616 MHz)
- RF Bandwidth
- 44 MHz
- Frequency Step Size
- 25 kHz
- Max Operating Range
- 328.1' / 100 m
- Max Transmitters per Band
- 60
- Latency
- < 2.9 ms
- Modulation
- Proprietary
- Receiver Type
- Rackmount
- Antenna
- 2 x 1/2 Wave External, BNC (Rear-Mount)
- Approximate RF Sensitivity
- -98 dBm
- Adjacent Channel Isolation
- >70 dB
Connectivity
- Number of Audio Channels
- 2
- Audio I/O
- 2 x XLR 3-Pin Male Balanced Output
- XLR Outputs
- +18 dBV (Line Level, Balanced)
- XLR Output
- -12 dBV (Mic Level)
- Network I/O
- 2 x RJ45 (1 Gb/s)
- Network Protocols
- DHCP, Dante, Manual IP
- Impedance
- XLR Output: 100 Ohms (Balanced)
Power
- Antenna Bias Voltage
- 12 to 13 VDC, 150 mA (per Antenna)
- Phantom Power Protection
- On XLR Outputs
- Power Requirements
- AC Input
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz at 0.32 A
Physical
- Mounting Options
- Rackmount (with Included Hardware)
- Housing
- Steel
- Dimensions
- 19 x 1.7 x 10.8" / 482 x 44 x 274 mm
- Weight
- 7.4 lb / 3.4 kg
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
General
- Rackmount Size
- 1 RU (1/2 Rack)
- Spurious
- Rejection (>80 dB)
More details
Additional Information
Specifications:
- Receiver:
- Audio Output Level:
- Display & Indicators:
- 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
- 2 x Multi-Segment LED (AF Level, Output Level, Peak)
- Audio Output Level:
