Shure ULXD4Q Wireless Receiver
Model ULXD4Q-H50
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

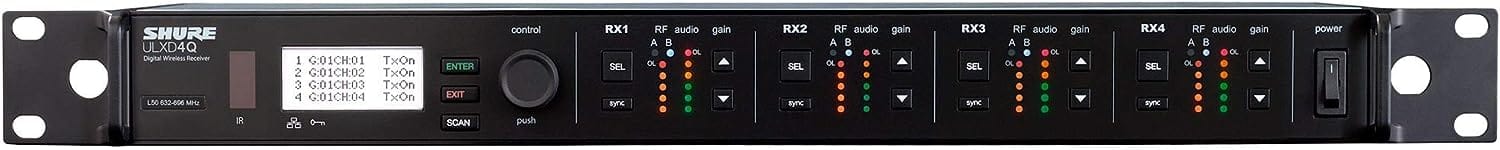

Shure ULXD4Q Quad-Channel Digital Wireless Receiver

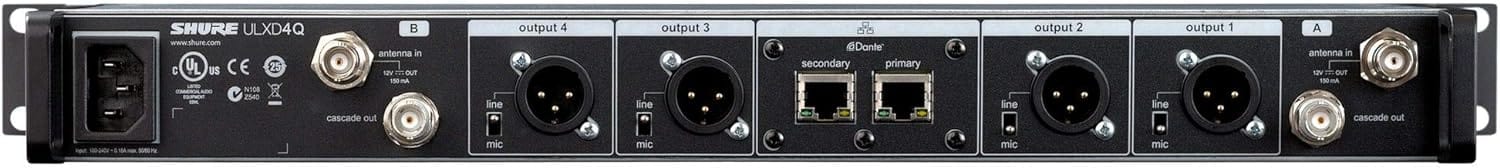

Part of the ULX-D wireless series, the Shure ULXD4Q houses 4 independent digital receivers in a rugged, single-rack unit with an internal power supply. Two Ethernet ports support Dante digital audio, while RF cascade ports allow for antenna signal distribution to another receiver unit. Audio summing enables the receiver to function as a 4-channel mixer.
Why this product
Key Benefits
-
For Large Venues & A/V Installations
-
4 x Digital Audio Channels, 1 Rackspace
-
64 MHz Tuning Range
-
Expandable up to 60 Channels
-
2 x Ethernet/Dante Ports
-
2 x RF Cascade Ports
-
Audio Summing
-
Secure AES-256 Encryption
Technical details
Technical Specifications
Microphone
- Gain Range
- -18 to +42 dB (1 dB Steps)
- Pad
- 30 dB
- Frequency Response
- 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Wireless
- Number of RF Channel Frequencies
- 2560
- Diversity
- Antenna Diversity
- RF Frequency Band
- H50 (534 to 598 MHz)
- RF Bandwidth
- 64 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 328.1' / 100 m
- Max Transmitters per Band
- 60
- Latency
- < 2.9 ms
- Modulation
- Proprietary
- Receiver Type
- Rackmount
- Antenna
- 2 x 1/2 Wave External, BNC (Rear-Mount)
- Approximate RF Sensitivity
- -98 dBm
- Adjacent Channel Isolation
- >70 dB
Connectivity
- Number of Audio Channels
- 4
- Audio I/O
- 4 x XLR 3-Pin Male Balanced Output
- XLR Outputs
- +18 dBV (Line Level, Balanced)
- XLR Output
- -12 dBV (Mic Level)
- Network I/O
- 2 x RJ45 (1 Gb/s)
- Network Protocols
- DHCP, Dante, Manual IP
- Impedance
- XLR Output: 100 Ohms (Balanced)
Power
- Antenna Bias Voltage
- 12 to 13 VDC, 150 mA (per Antenna)
- Phantom Power Protection
- On XLR Outputs
- AC/DC Power Adapter
- 15 VDC at 600 mA (Included)
- Power Requirements
- AC/DC Power Adapter
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz at 0.32 A
Physical
- Mounting Options
- Rackmount (with Included Hardware)
- Housing
- Steel
- Dimensions
- 19 x 1.7 x 10.8" / 482 x 44 x 274 mm
- Weight
- 7.6 lb / 3.4 kg
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
Shipping & Packaging
- Package Weight
- 12.3 lb
- Box Dimensions (LxWxH)
- 27.5 x 17.5 x 4"
General
- Rackmount Size
- 1 RU (1/2 Rack)
- Spurious
- Rejection (>80 dB)
More details
Additional Information
Specifications:
- OS Compatibility:
- Windows 10 to 11
- macOS 10.14 to 11.0
- Receiver:
- Audio Output Level:
- Display & Indicators:
- 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
- 2 x Multi-Segment LED (AF Level, Output Level, Peak)
- Audio Output Level:
- Packaging Info:
