Product details
Overview
Shure ULXD6 Wireless Boundary Microphone Transmitter - J50A Band

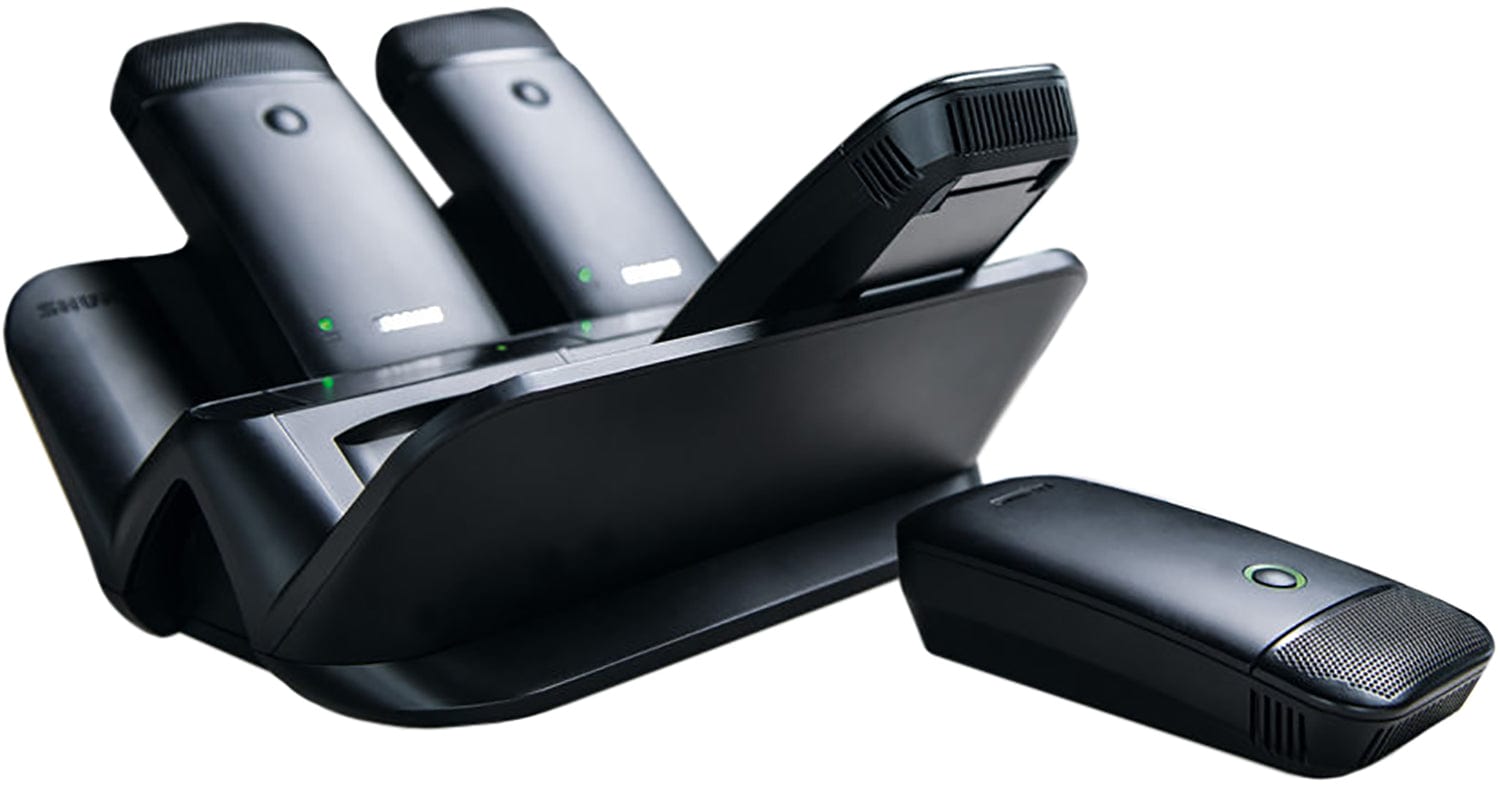

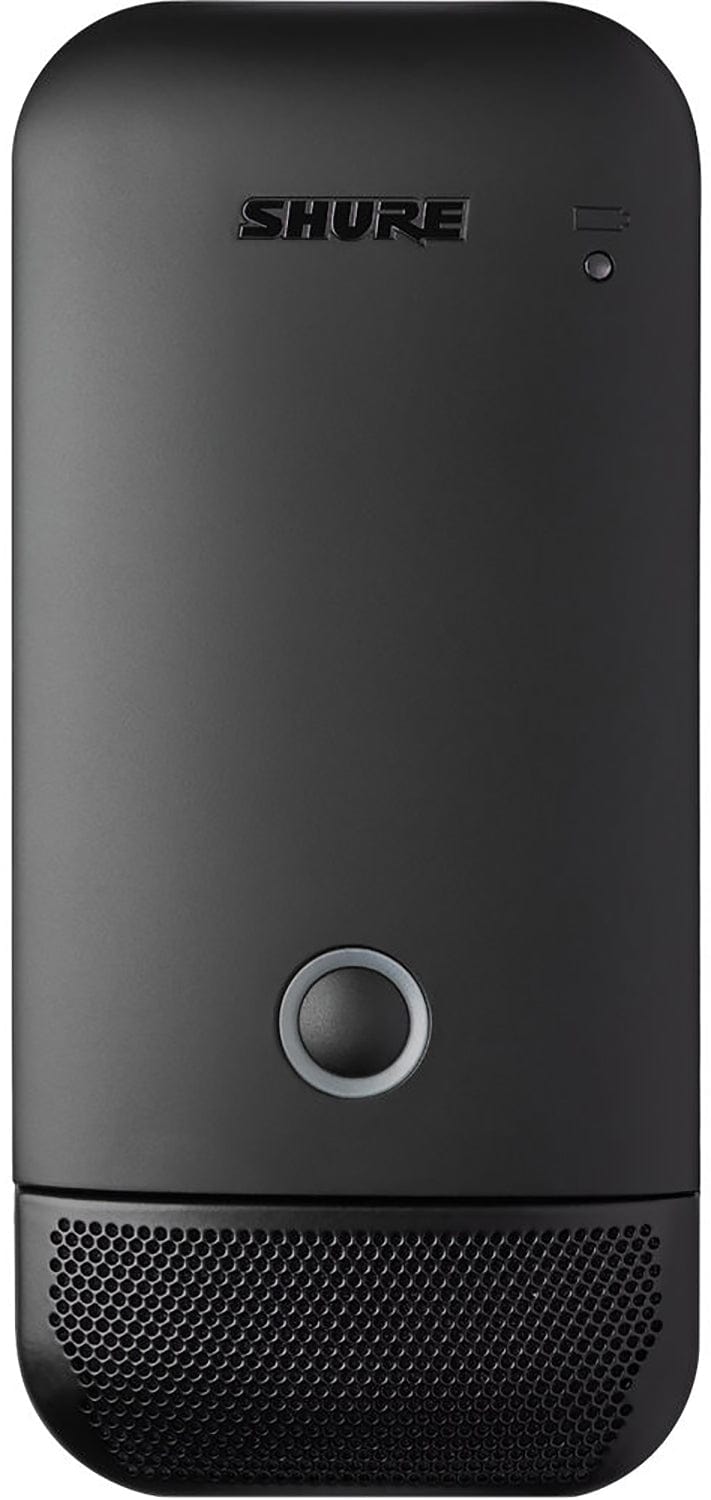

The black Shure ULXD6/C is a digital tabletop transmitter equipped with a cardioid boundary mic and compatible with ULX-D receivers. The cardioid polar pattern focuses audio capture in front of the mic and rejects much of the off-axis ambient noise, great for picking up one speaker or allowing two panelists sitting next to each other at a large table to share a single mic. The unit's low profile is ideal for applications such as video-conferencing where minimum visibility is required. A smart choice for situations where wired mics are impractical, this tabletop transmitter enables quick setup and tear down, and can be put away in a docking station (available separately) for storing and charging when the mic is not in use.
Why this product
Key Benefits
-
For ULX-D Digital Wireless Systems
-
Built-In Cardioid Boundary Mic
-
1/10/20mW RF Output Power
-
Configurable Mute Button with Status LED
-
High-Pass Filter Reduces Noise
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
9 Hr with SB900A Rechargeable Battery
Technical details
Technical Specifications
Microphone
- Gain Range
- 0 to 21 dB (3 dB Steps)
- Microphone Type
- Boundary
- Sound Field
- Mono
- Polar Pattern
- Cardioid
Wireless
- RF Frequency Band
- J50A (572 to 608 MHz - 614 to 616 MHz)
- RF Bandwidth
- 44 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 328.1' / 100 m
- Latency
- < 3 ms
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Tabletop
- RF Output Power
- 1 / 10 / 20 mW
- Sync Method
- IR
- Antenna
- 1 x Internal
Connectivity
- Sample Rate/Resolution
- 48 kHz / 24-Bit
- Audio I/O
- No
- USB/Lightning I/O
- 1 x USB-A (Charging, Host Connection)
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1 x LED (Mute)
- Housing
- Plastic
- Dimensions
- 2.4 x 1.3 x 4.5" / 62 x 34 x 114 mm
- Weight
- 8.5 oz / 241 g (with Batteries)
Shipping & Packaging
- Package Weight
- 0.95 lb
- Box Dimensions (LxWxH)
- 6.6 x 4.3 x 3.3"
General
- Muting
- Programmable Mute Switch
- Signal Processing
- High-Pass Filter (-12 dB at 150 Hz, 12 dB/Octave Slope?)
- Med.
- 8 Hours (Alkaline)
- Med.
- 9 Hours (Lithium Shure SB900A)
More details
Additional Information
Specifications:
- Transmitter:
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included)
- Approx. Battery Life:
- Battery Type:
- Microphone:
- Packaging Info:
