Shure UR4D H4 Double Receiver UHF 518-578 Megahertz
Model TZ-UR4DH4
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure UR4D H4 Double Receiver UHF 518-578 Megahertz

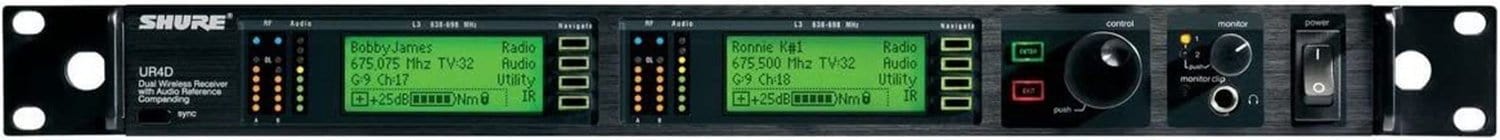

The Shure UR4D Dual Diversity Receiver is a durable, single space, rack-mountable unit that is designed to receive signals from two transmitters simultaneously. The UR4D's diversity design, aids in minimizing Radio Frequency (RF) interference and noise. Dual backlit LCDs provide access to all programmable parameters. Audio outputs include a microphone / line level switchable balanced XLR with ground lift and 1/4" phone connectors. USB and Ethernet connections are provided for direct integration with a PC and network arrays, and Wireless Workbench software is included and enables arrays to be controlled and configured from a PC.
Why this product
Key Benefits
-
2400 Selectable frequencies across 60 MHz bandwidth
-
Track tuning filtering technology
-
Up to 60 preset compatible systems/band (140 w/multiple bands, region dependent)
-
Networked automatic frequency selection
-
Automatic transmitter setup (including custom group upload)
-
Flash memory to store six 60-channel custom frequency groups
-
Shure patented audio reference companding
-
Multi-function Bit-mapped backlit LCD
-
Built-in USB & Ethernet network compatibility
-
Shure Wireless Workbench control/monitoring software
-
Remote able antennas
-
Shure microprocessor-controlled diversity
Technical details
Technical Specifications
Microphone
- Overall Frequency Response
- 40Hz to 18kHz +/- 1dB
Wireless
- Approx. Working Range
- 500 feet (150 meters) typical conditions
- # Of Channels
- 2400 Selectable Frequencies Across 60 MHz Bandwidth
- RF Carrier Frequency Range
- H4 / 518-578Mhz
- Type of Receiver
- UR4D Dual Receiver - Diversity
- Antenna Type
- Two band dependent antennas
Battery
- Battery Type/Approx. Life
- None - AC power only

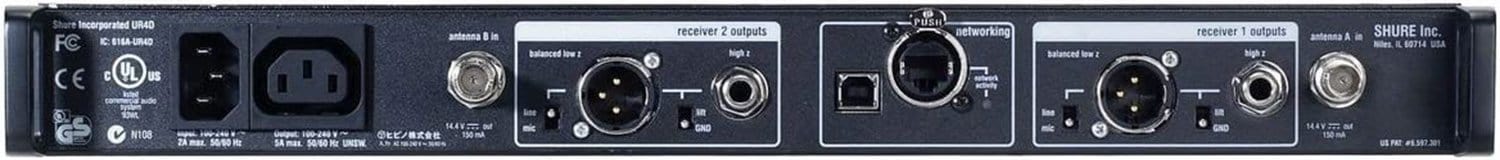

Connectivity
- XLR 3-pin
- Mic / Line Switchable, Balanced Low-Z with Ground Lift Switch
- USB
- Computer Interface
- Headphone Monitoring
- 1/4" Phone with level control dial
Physical
- Mounting Options
- Rack Mount Hardware (Included)
- Dimensions
- 1.72 x 19 x 14.39" (44 x 483 x 366mm) (HxWxD)
- Weight
- 11 lbs. (5 kg)
General
- 1/4" Phone
- 200 ohms
- RJ-45
- Ethernet Network Interface
- Backlit LCD
- Group and Channel, Frequency, Automatic Transmitter Sync, Receiver name, Output Level, Squelch, Receiver Lock, LCD View, Contrast, ToneKey, Network Parameters
More details
Additional Information
Specifications
- Signal-to-Noise Ratio:
- Ultimate Quieting (ref. 45 kHz deviation)
- <100 dB, A-weighted
- Type of Outputs:
- Power Requirements:
- 100 to 240 Vac, 50/60Hz
- 0.8 Amps max.
- Display:
