Shure WH30LEMO Condenser Microphone Headset for WH30
Model TZ-WH30LEMO
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

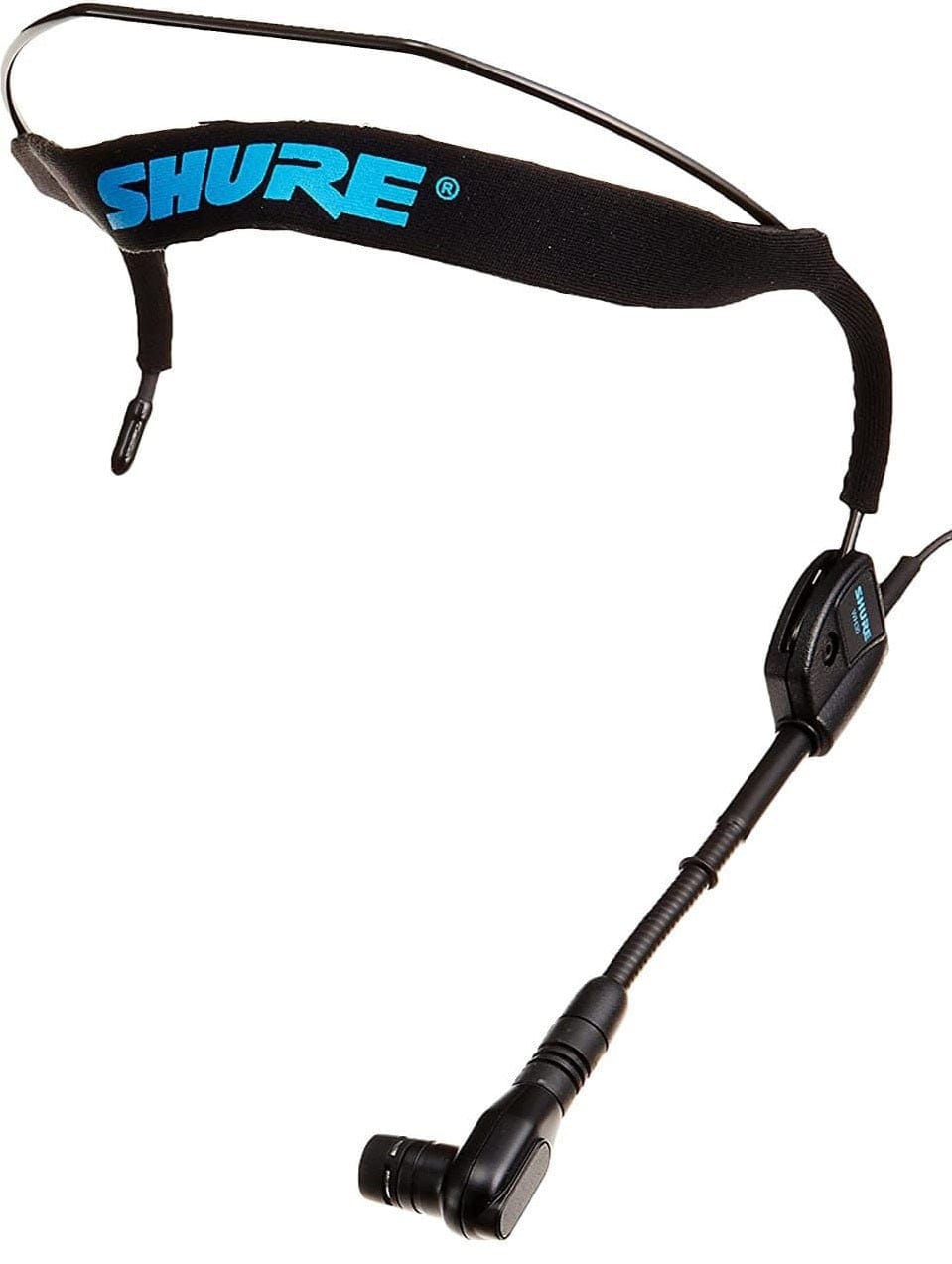

Shure WH30LEMO Condenser Microphone Headset for WH30
The Shure Model WH30 is a light yet rugged headset microphone. Designed for vocalists and instrument-playing vocalists, the WH30 utilizes a high quality electret-condenser cartridge suitable for all applications where mobility, comfort, low microphone-visibility, and high sound quality are required. Because of its cardioid (unidirectional) pickup pattern, the WH30 provides isolation from extraneous sound sources and high gain-before-feedback. The wireframe and gooseneck adjust to any head size and shape. An integrated elastic headband comfortably pads and secures the headset. The WH30 is supplied with two snap-on windscreens, clothing clip, storage bag and cable-management device.
Why this product
Key Benefits
-
Smooth, natural frequency response comparable to professional condenser hand-held microphones
-
Lightweight wireframe and headband adjust for a secure, comfortable fit
-
Extra-strong, small-diameter microphone cable resists breakage
-
Moisture-proof cartridge housing
-
Sturdy gooseneck-boom holds mic securely in place
-
lsolation shock mount for reduced handling noise
-
Matte black finish for low visibility
-
High input clipping level helps avoid overload distortion
-
Low self-noise and high sound pressure level capability
-
Reliable at temperature and humidity extremes
Technical details
Technical Specifications
Microphone
- Frequency Response
- 40 to 20,000 Hz
- Polar Pattern
- Unidirectional
Connectivity
- Output Noise (equivalent SPL)
- 31 dB (typical, A-weighted)
- Cable
- 1.2 m (4 ft.) two-conductor, shielded
Physical
- Headset and cord
- 60 g (2.1 oz)
Environmental
- Humidity
- 0 to 95% (operating or storage)
General
- WH30TQG
- Condenser, electret bias
- WH30XLR
- Condenser, electret bias with integrated preamplifier
- WH30TQG
- 2400 Ω
- WH30XLR
- Rated 150 Ω (actual) (Tolerates loads as low as 150 Ω with reduced clipping level)
- WH30TQG
- –55.5 dB (1.7 mV)
- WH30XLR
- –54.5 dB (1.9 mV)
- WH30TQG
- –22 dBV (0.08 V)
- 2.5KΩ Load
- –8 dBV (0.4V)
- 1 KΩ Load
- –8 dBV (0.4V)
- WH30TQG
- 130 dB
- 2.5KΩ Load
- 142 dB
- 1 KΩ Load
- 142 dB
- WH30TQG
- 99 dB
- WH30XLR
- 111 dB
- WH30TQG
- 5 VDC
- WH30XLR
- 11-52 VDC Phantom power
- WH30TQG
- Positive sound pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1 (ground) on the mini TA4F connector.
- WH30XLR
- Positive sound pressure on the diaphragm produces positive voltage on pin 2 relative to pin 3 of preamplifier output connector.
- WH30TQG
- Headset: 65 g (2.3 oz)
- Preamplifier
- 99 g (3.5 oz)
More details
Additional Information
Specifications:
- Type:
- Output Impedance (at 1kHz):
- Output Level (at 1 kHz; 0 dB = 1 V/Pascal):
- Signal to noise ratio (ref. A-weighted noise): 63.0 dB at 94 dB SPL (IEC 651)
- Output Clipping Level (at 1000 Hz):
- WH30XLR:
- WH30XLR:
- Maximum SPL:
- WH30XLR:
- WH30XLR:
- Dynamic Range (max. SPL to A-weighted noise level):
- Recommended Operating Voltage:
- Polarity:
- Environmental Conditions:
- Operating Temperature –7° to 49° C (20° to 120° F)
- Storage Temperature –29° to 74° C (–20° to 165° F)
- Cable Connector:
- LEMO Connector
- LEMO Connector
- Net Weight:
- WH30XLR:
- WH30XLR:
