Product details
Overview

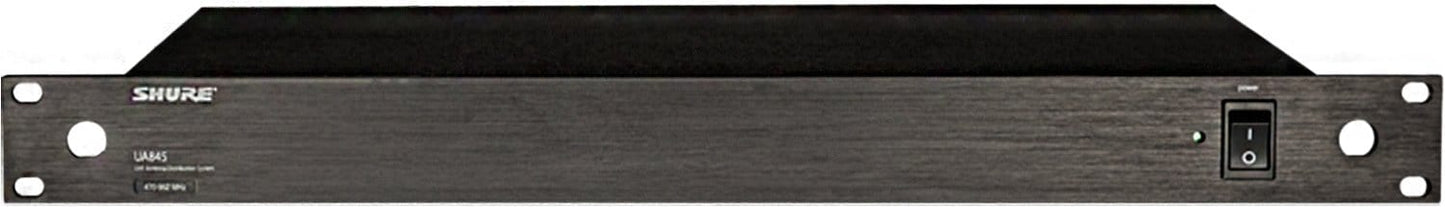

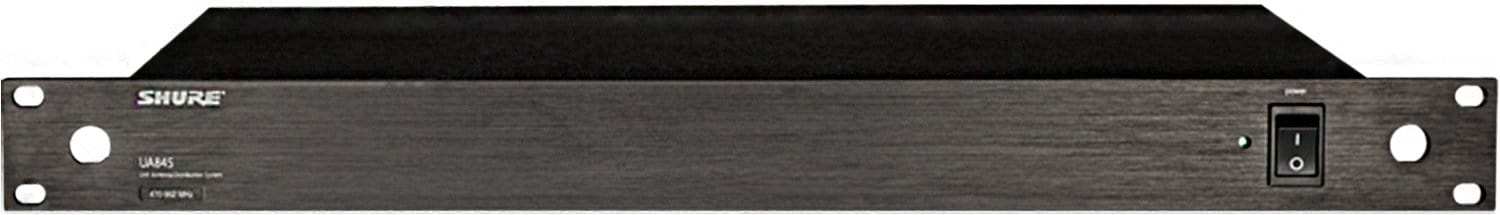

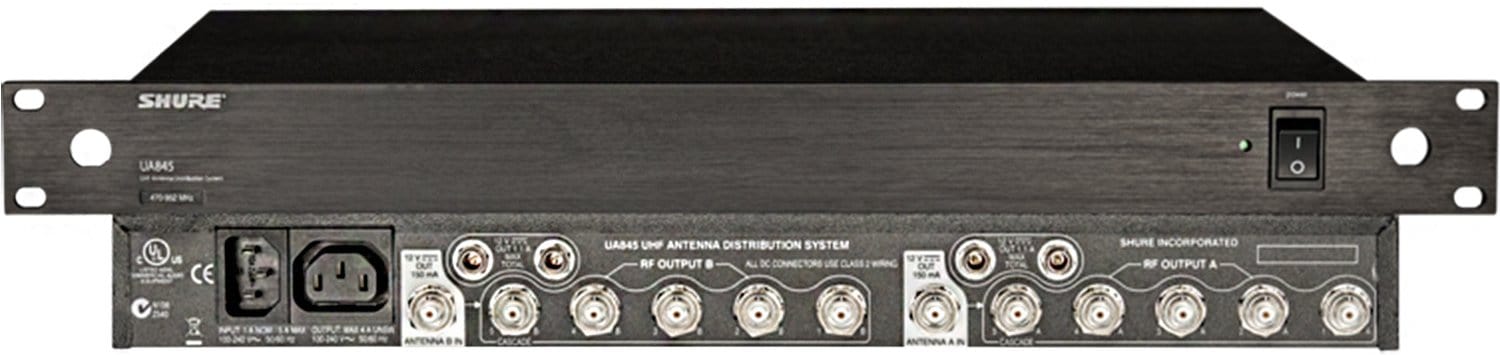

Shure UA845 Wideband UHF 5-Way Antenna and Power Distribution System

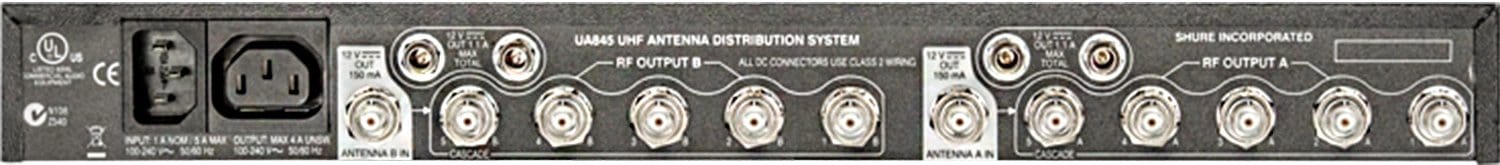

The Shure UA845 is a UHF antenna distribution amplifier system designed to integrate with the Shure U4S, U4D, or UC4 wireless microphone receivers. The UA845 receives incoming RF signal using dual antennas, then distributes the signal via 4 BNC type connections. The UA845 also compensates for insertion loss by amplifying the signal on output. Each UA845 allows up to four receivers to use the same antennas. CASCADE connectors allows connections to a fifth receiver or a second UA845. There are also power connectors for powering Shure UHF and UC Wireless systems directly from the UA845.
Technical details
Technical Specifications
Wireless
- Carrier Frequency Range
- US: 500 - 900 MHz
Connectivity
- Connector Type
- BNC-type x4
- Impedance
- 50 ohms
Physical
- Weight
- 7 lbs, 5 oz. (3.32 Kg)
- Dimensions
- 1.75 x 19 x 11.63" (44.5 x 482.6 x 295.3) (HxWxD)
Shipping & Packaging
- Package Weight
- 12.1 lbs.
- Box Dimensions (LxWxH)
- 23.3 x 17.8 x 3"
More details
Additional Information
Specifications:
- Gain Control:
- 3dB typical, 0dB to 3.5dB from antenna input (Output ports 1-4)
- 1dB typical, -1.6dB to +1.8dB from antenna input (Cascade port)
- Operating Voltage:
- AC Power Consumption
- 15W per unit typical (when used with 4UC4's, 55W max.)
