Yealink CM20 16-Mic AI Beamforming Ceiling Array Microphone

Model CM20

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 16 omnidirectional microphones in 8 pickup zones
  • Up to 4.5 m effective pickup radius; 3.2 m high-quality full-duplex radius under Yealink's stated test conditions
  • Integrated DSP with AES67 and PoE
  • In-ceiling, pendant or on-ceiling mounting
Video Conferencing & Hybrid Workspaces Part of our complete AV solutions Explore Solutions

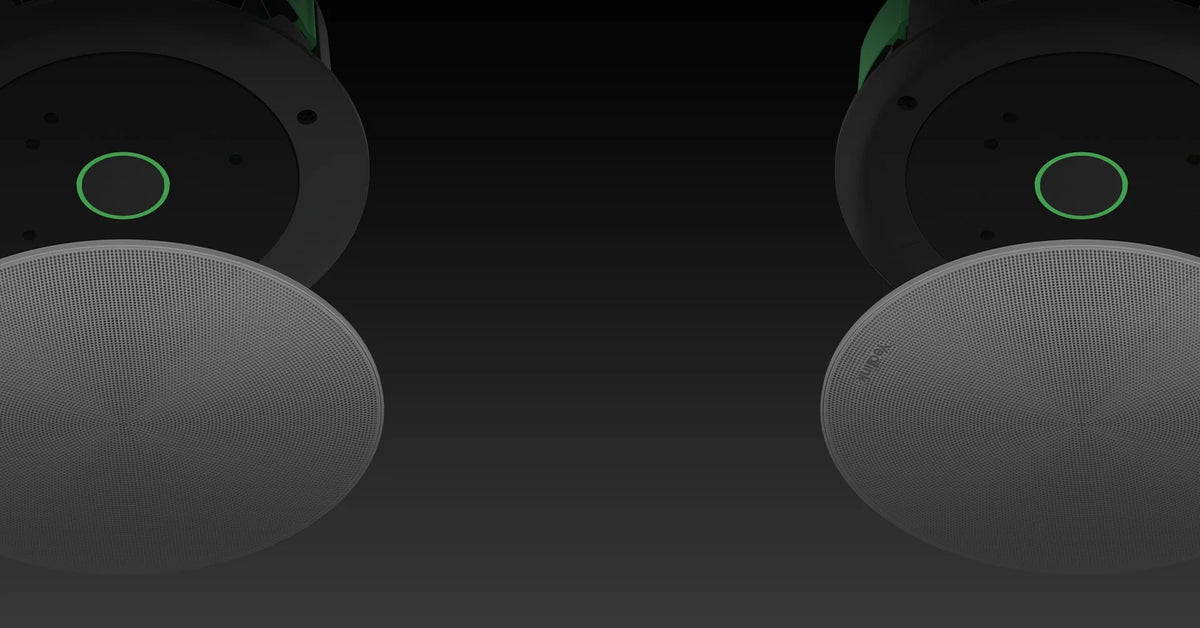

Yealink CM20 ceiling microphone product view 1
  • Authorized Yealink Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Yealink CM20?

The Yealink CM20 is a beamforming ceiling array microphone with 16 omnidirectional microphones across 8 pickup zones and a built-in DSP. It captures voices up to a up to 4.5 m effective pickup radius, which suits medium and large meeting rooms in the UAE that use Yealink 4th-generation MVC S50, S80, S90 and S98 systems.

The Yealink CM20 is an AI-powered ceiling microphone that picks up a room from above with 16 omnidirectional microphone units. Because the DSP is built in, it works with Yealink 4th-generation MVC S50, S80, S90 and S98 systems without an extra audio processor. Power and audio run over one Ethernet cable.

Why this product

Key Benefits

  • Even voice pickup in large rooms

    Sixteen omnidirectional microphones in 8 independent pickup zones cover a up to 4.5 m effective pickup radius, with a 3.2 m high-quality radius for full-duplex capture.

  • AI noise and reverberation control

    AI Dynamic Noise Reduction and AI Reverberation Suppression adjust to the room and reduce noise and echo.

  • No separate processor needed

    The integrated DSP gives plug-and-play operation with the compatible Yealink MVC systems, and 8 beam outputs support speaker tracking with room cameras.

  • Single cable for power and audio

    The CM20 runs on PoE (IEEE 802.3af, Class 3) and supports AES67 for audio networks.

  • Flexible ceiling positions

    It can be mounted in the ceiling, on the ceiling or on a pole, and the detachable magnetic mesh cover keeps the look discreet.

Use cases

Applications

  • Medium and large meeting rooms

    A 4 m nominal pickup radius covers tables where a single tabletop microphone would fall short.

  • Boardrooms with Yealink MVC systems

    Yealink lists compatibility with its 4th-generation MVC S50, S80, S90 and S98 systems.

  • Rooms with a camera that tracks speakers

    The 8 beam outputs integrate with room cameras for speaker tracking.

Technical details

Technical Specifications

Microphone

Microphone Type
Beamforming ceiling array
Polar Pattern
Omnidirectional units, 8 pickup zones
Frequency Response
120 Hz to 16 kHz
Sensitivity
0 dBV/Pa at 94 dB SPL, 1 kHz
Microphone Coverage
Up to 4.5 m effective radius; 3.2 m high-quality full-duplex radius under Yealink's stated test conditions

Connectivity

Output Connector
1 × RJ-45
Network Audio
AES67

Power

PoE
IEEE 802.3af, Class 3
Power Consumption
5.7 W typical, 9 W rated

Physical

Dimensions
Φ223 × H83 mm with cover mesh; Φ215 × H81 mm without
Weight
615 g

Environmental

Operating Temperature
0 °C to 50 °C

Certifications & Warranty

Certifications
UL 2043 plenum rated

In the box

What's Included

  • Yealink CM20 microphone

  • White and black mesh covers, as listed in Yealink's datasheet

  • Quick start documentation

  • Assembly fixing bracket

  • Dust cover

  • Bracing bridge × 1 pair

  • Fixing screws and bolts listed for the selected deployment kit

Installation

Installation & Mounting

Recommended Yealink Room System

For a compatible room system, consider the Yealink MVC S50 or Yealink MVC S80. Yealink documents CM20 use with its supported MVC deployments. Confirm the exact bundle generation, firmware, audio topology and PoE budget before ordering; sharing the Yealink brand alone does not establish compatibility.

Installation

Yealink provides a CM-MountKIT deployment accessories kit for the CM20 and a video of the in-ceiling, on-ceiling and pole deployment methods. The datasheet lists a bracing bridge, expansion bolts and screws, plus an optional length-adjustable pole and suspend pole adapter. For the CM-MountKIT or a compatible Yealink MVC S-series system, contact our team: call +971 56 498 8088, WhatsApp us or email info@corporateav.ae.

Ownership and support

Ownership & Support

Support

For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.

Complete your solution

Recommended Accessories

Expert FAQs

What pickup pattern does the Yealink CM20 ceiling microphone use?

The Yealink CM20 uses 16 omnidirectional microphone units arranged in 8 independent pickup zones, with 8 beam outputs. Its nominal coverage radius is 4 m, and Yealink's datasheet gives a 3 m high-quality radius for full-duplex capture (the STIPA test figures use a 3.2 m radius).

What pickup area does the Yealink CM20 cover?

Yealink's current datasheet states high-quality full-duplex capture over a 3.2 m radius (about 30 m²) and effective coverage up to a 4.5 m radius (about 60 m²). These figures were measured with a 2.8 m mounting height and specified noise and reverberation conditions. Actual room acoustics and ceiling height affect the result; assess coverage for the installation rather than treating the maximum as a guarantee.

Does the Yealink CM20 need an external DSP?

No. The Yealink CM20 has an integrated DSP that works plug-and-play with the compatible Yealink MVC systems, so no external audio processor is required. It also supports AES67 for audio networks.

How is the Yealink CM20 powered?

The Yealink CM20 is powered over Ethernet using PoE (IEEE 802.3af, Class 3) on its 1 RJ-45 port. It draws 5.7 W typically and 9 W rated, and audio runs over the same cable.

Which Yealink systems work with the Yealink CM20?

Yealink lists the Yealink CM20 as compatible with its 4th-generation MVC series: MVC S50, S80, S90 and S98.

How can the Yealink CM20 be mounted?

The Yealink CM20 can be mounted in the ceiling, on the ceiling or on a pole, and Yealink provides a CM-MountKIT for it. It measures Φ223 × H83 mm with the cover mesh and weighs 615 g.

What is the signal-to-noise ratio and operating range of the Yealink CM20?

The Yealink CM20 has a signal-to-noise ratio of 86 dB at under 1% THD. It is plenum rated to UL 2043 and works from 0 °C to 50 °C.

How can I request a Yealink CM20 16-Mic AI Beamforming Ceiling Array Microphone quotation in the UAE?

Request a project quotation from Corporate AV for Dubai, Abu Dhabi or elsewhere in the UAE. Share the room dimensions, ceiling height and exact Yealink host system so the proposal can identify compatible equipment and installation requirements. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, lead time, regional warranty and separately sold accessories with the quotation.
