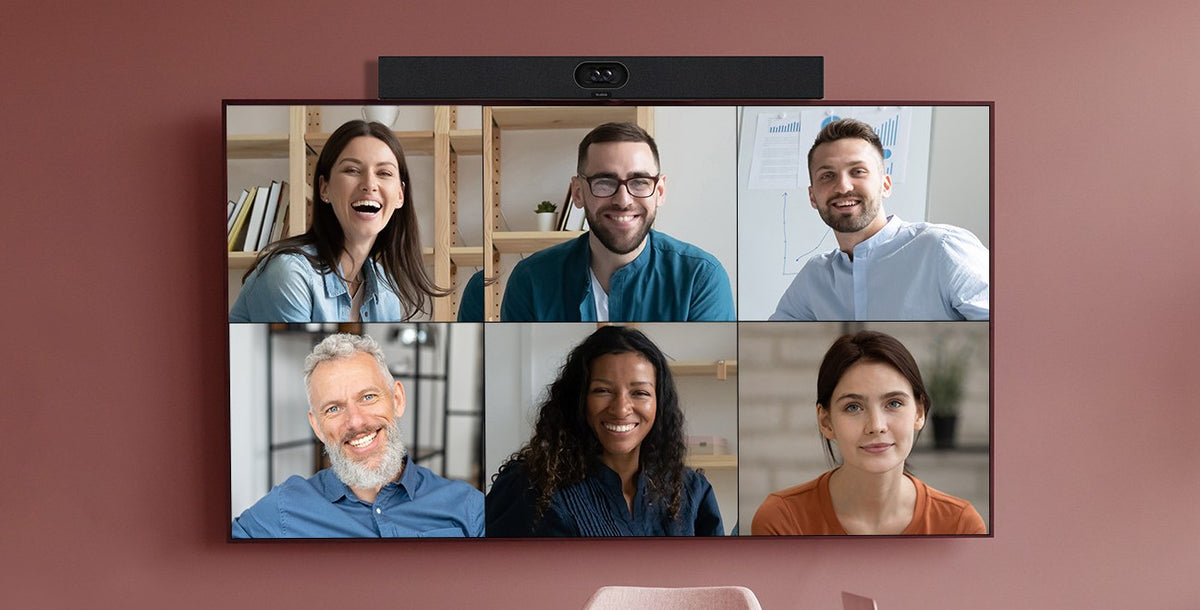

Choose by room size. The Yealink MVC S40 is designed for small to medium rooms with a dual 48 MP camera and 6 m pickup, the MVC S50 for medium to large rooms with the MeetingBar A50 and 10 m pickup, and the MVC S80 for large rooms with the four-lens SmartVision 80.

The MVC S90 and MVC S98 combine several cameras for boardrooms and Pro-AV rooms, and all of them use the MCore 4 mini PC with an MTouch Plus controller.

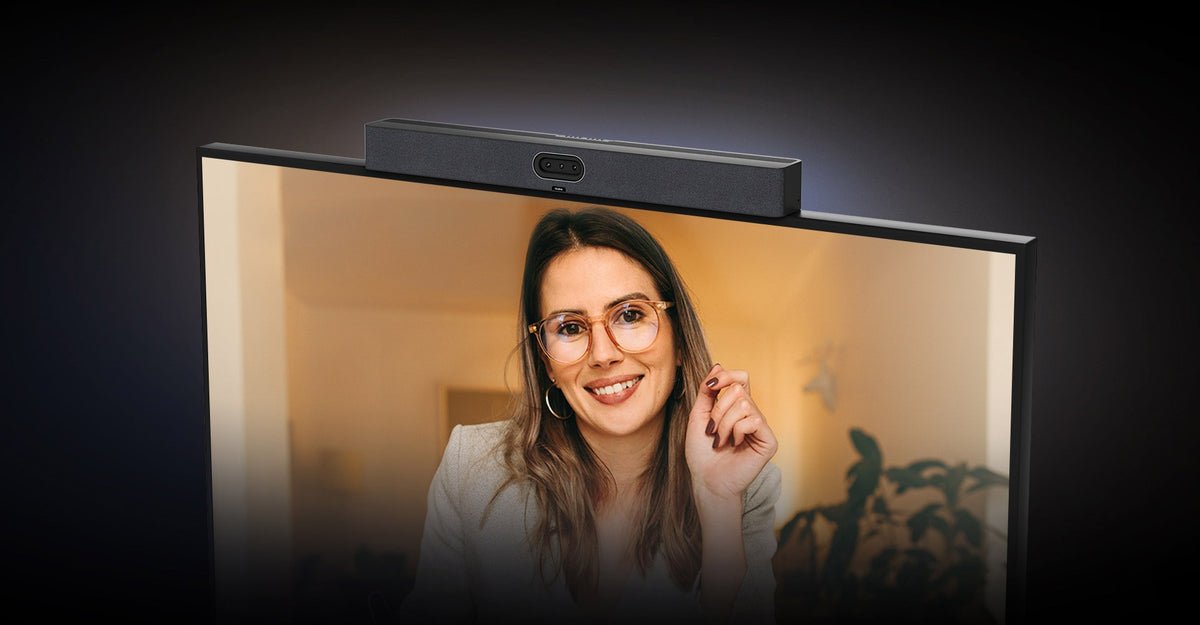

The Yealink MeetingBar A40 suits rooms for up to 12 people, with 8 MEMS microphones, 6 m pickup and dual 48 MP lenses combining into a 120° view. The MeetingBar A50 suits up to 16 people, with 16 MEMS microphones, 10 m pickup and a triple 50 MP camera with two telephoto lenses.

Both run Android 13 on the Microsoft Device Ecosystem Platform and connect to the CTP25 touch console with one Cat5e cable.

Yes. Yealink describes the MVC S series as Microsoft Teams Rooms systems on Windows, and it offers the MeetingBar A10, A30, A40, A50 and MeetingBoard Pro in Microsoft Teams Rooms and Zoom Rooms versions.

Yealink states that the MVC S90 is rigorously tested and certified for Microsoft Teams. Order the version that matches the room's platform, because the platform software differs between versions.

The Yealink MCore 4 is the meeting compute in the MVC S40, S50, S80, S90 and S98 kits. It uses an Intel Core Ultra 5 processor with a built-in NPU rated at 34 TOPS, 16 GB of DDR5 memory and a 256 GB SSD.

It has 3 HDMI outputs with CEC, an HDMI input for 4K content sharing, 4 USB 3.0 ports and an RJ45 port for the MTouch Plus or MTouch E2 controller.

The Yealink SmartVision 80 is a four-lens intelligent camera for large rooms, with a panoramic lens, two telephoto lenses and a PTZ lens with 20x optical zoom. It tracks a presenter at distances of up to 20 m.

It has a built-in 4-microphone array, supports NDI|HX3 output and is Dante compatible. It is the camera in the Yealink MVC S80 and MVC S98 kits.

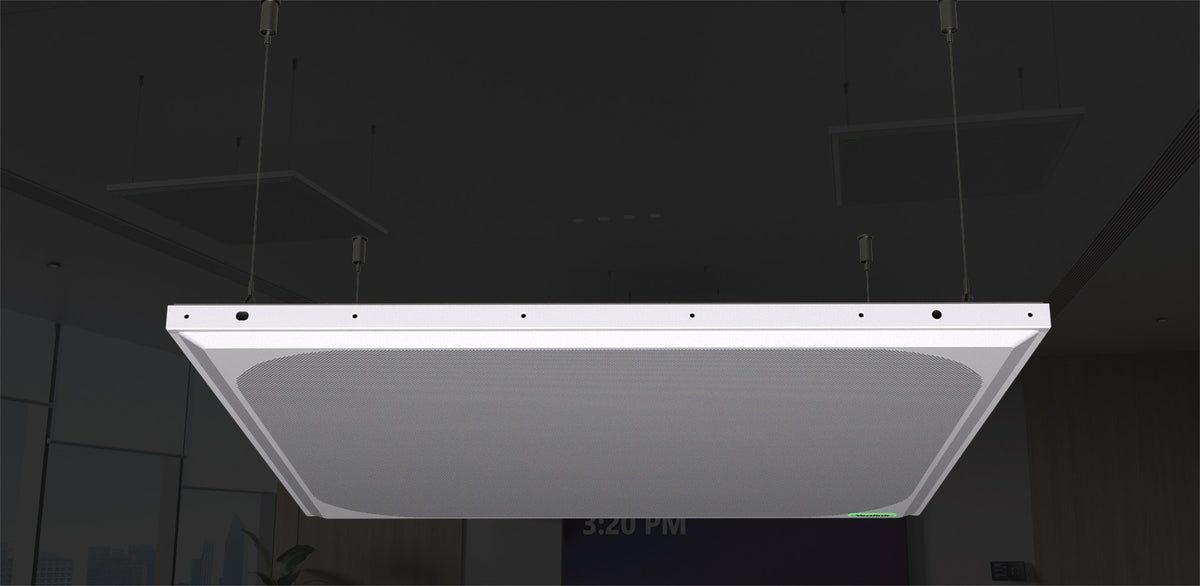

The Yealink CM50 covers a 5 m radius at premium pickup quality, measured as a speech transmission index above 0.76. It uses 127 microphone units and can be set up with 8 custom pickup areas.

It connects over Dante and locates the active talker to guide Yealink intelligent cameras, for example in the MVC S90. Pair it with the Yealink AP08 processor for rooms with several microphones.

Yealink makes RCH switches for its meeting rooms. The RCH40 has 4 Gigabit PoE+ ports and 1 uplink port, supports 802.3af and 802.3at and has a PoE budget of up to 90 W.

Larger rooms use the RCH80 with 8 ports or the RCH240 with 24 ports, both L2+ managed PoE+ AV switches. Size the switch from the PoE class of every camera, microphone and controller.

The Yealink MeetingBoard 65 Pro is a 65-inch 4K touch display with a built-in triple 50 MP camera, 16 MEMS microphones with full-duplex pickup up to 12 m and 36 W of speakers. Yealink sizes the 65-inch model for 1 to 6 people.

It is also available in 75-inch and 86-inch sizes, and it supports native Microsoft and Zoom whiteboards for collaboration during calls.

Yealink rooms can be managed through the Microsoft Teams Admin Center, the Teams Rooms Pro Management Portal, Zoom Device Management or Yealink's own management service.

These tools handle firmware updates, settings and monitoring across many rooms. The MeetingBar A40 and A50 run on the Microsoft Device Ecosystem Platform (MDEP), which Yealink describes as protecting the device against malicious attacks and data leaks.

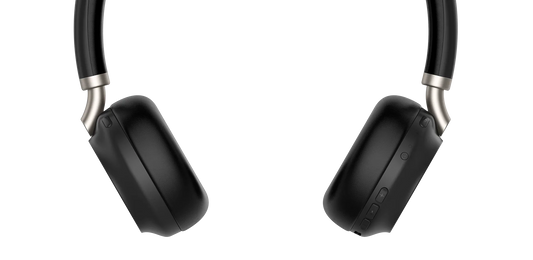

The Yealink BH72 is a Bluetooth business headset with up to 40 hours of battery life, which Yealink says covers about a week of normal work. It supports Qi wireless charging and comes with a UC Powerstation for daily charging.

Its noise-cancelling microphones sit in a retractable boom with beamforming, and Yealink USB Connect manages its settings with other Yealink USB devices.
