Biamp

Biamp TesiraCONNECT TC-5

Model 45710MPN TesiraCONNECT TC-5

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Network ports: 5 × Gigabit RJ45
  • PoE+ ports: 4 × IEEE 802.3at Class 4, 30W
  • Total PoE budget: 120W
  • Media role: AVB room connection for Tesira systems
  • Device chaining: Up to 4 supported TesiraCONNECT units

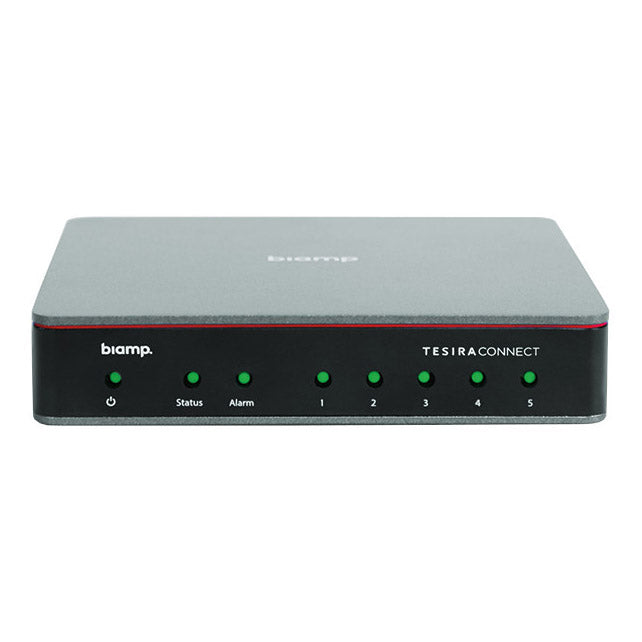

Biamp TesiraCONNECT TC-5
  • Authorized Biamp Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Biamp TesiraCONNECT TC-5?

The Biamp TesiraCONNECT TC-5 is a five-port AVB room-connection device for supported Tesira conferencing equipment. Four ports provide PoE+ to endpoints, while the fifth connects the DSP or another supported TC-5, helping carry power and media through a coordinated category-cable layout. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

TC-5 supplies the documented AVB network and power connections; it does not provide the AEC or room-audio processing of a Tesira DSP. This TC-5 listing should not be confused with the distinct TC-5D Dante-capable model.

  • Media role: AVB room connection for Tesira systems.
  • Device chaining: Up to 4 supported TesiraCONNECT units.

Use cases

Applications

  • Supported commercial meeting-room AV installations

  • UAE projects with a documented mounting, audio or media-network design

Technical details

Technical Specifications

Connectivity

Network ports
5 × Gigabit RJ45
PoE+ ports
4 × IEEE 802.3at Class 4, 30W
Total PoE budget
120W
Network ports
5 × Gigabit RJ45.
PoE+ ports
4 × IEEE 802.3at Class 4, 30W.
Total PoE budget
120W.

Power

Power supply
External universal supply included

Environmental

Operating temperature
0–40°C

Physical

Dimensions (H × W × D)
28 × 147 × 147mm

Model & Identification

Model
TesiraCONNECT TC-5
Manufacturer part number
TesiraCONNECT TC-5

General

Media role
AVB room connection for Tesira systems
Device chaining
Up to 4 supported TesiraCONNECT units

In the box

What's Included

  • One Biamp TesiraCONNECT TC-5

  • External power supply

Installation

Installation & Mounting

Recommended Compatible Equipment

Biamp TesiraFORTÉ X 400 Meeting Room DSP. Room-DSP option for the supported AVB system.

Biamp Parlé TCM-X Beamtracking Ceiling Microphone | White. AVB/PoE microphone endpoint option.

Biamp RMX 100 1RU Universal Rack Shelf For TesiraFORTÉ X. Rack-shelf option; verify the device layout and mounting hardware.

Installation

Connect the room DSP and supported endpoints using the specified port arrangement. Confirm topology and cable routes before installation; keep PoE requirements within the documented per-port limits. Choose TC-5D or another supported design if Dante bridging is required.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your TesiraCONNECT TC-5 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Biamp TesiraCONNECT TC-5 used for?

The Biamp TesiraCONNECT TC-5 is a five-port AVB room-connection device for supported Tesira conferencing equipment. Four ports provide PoE+ to endpoints, while the fifth connects the DSP or another supported TC-5, helping carry power and media through a coordinated category-cable layout.

Does TC-5 have Dante audio bridging?

The standard TC-5 is the AVB room-connection model. TC-5D is a distinct product with documented Dante functionality; confirm the exact model before specifying the network.

Does TC-5 replace the room DSP?

No. It provides network connections and PoE+ power. A supported DSP and correctly configured microphones, amplification and loudspeakers are still required.

Which equipment should I consider with TesiraCONNECT TC-5?

Biamp TesiraFORTÉ X 400 Meeting Room DSP. Room-DSP option for the supported AVB system.

Biamp Parlé TCM-X Beamtracking Ceiling Microphone | White. AVB/PoE microphone endpoint option.

Biamp RMX 100 1RU Universal Rack Shelf For TesiraFORTÉ X. Rack-shelf option; verify the device layout and mounting hardware.

What is included with TesiraCONNECT TC-5?

One Biamp TesiraCONNECT TC-5; External power supply. Confirm the exact regional pack on the quotation.

What should I check before installing TesiraCONNECT TC-5?

Connect the room DSP and supported endpoints using the specified port arrangement. Confirm topology and cable routes before installation; keep PoE requirements within the documented per-port limits. Choose TC-5D or another supported design if Dante bridging is required.

Can Corporate AV help specify TesiraCONNECT TC-5 for a UAE project?

Share your TesiraCONNECT TC-5 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Biamp TesiraCONNECT TC-5 quotation in the UAE?

Contact Corporate AV about Biamp TesiraCONNECT TC-5. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
