Bose ArenaMatch AMWG4080 80° Horizontal Waveguide for AM40 Array Module

Model AMWG4080MPN 808658-6810

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 80° horizontal waveguide calibrated for the ArenaMatch AM40 module
  • Gives the AM40 an 80° x 40° coverage pattern (AM40/80)
  • Replaceable waveguide for customising coverage and forming asymmetrical array patterns
  • Mechanical coverage accessory; loudspeaker and amplifier sold separately
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose ArenaMatch AMWG4080 80° waveguide
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose ArenaMatch AMWG4080?

The Bose ArenaMatch AMWG4080 waveguide is an 80° horizontal waveguide accessory for the ArenaMatch AM40 DeltaQ array module. Fitted to the AM40, which has 40° vertical coverage, it creates an 80° x 40° pattern, so the coverage of a module can be changed on site without replacing the loudspeaker. It is made for integrators and sound designers working on stadium, arena and outdoor venue systems in the UAE.

The Bose ArenaMatch AMWG4080 is the 80° horizontal waveguide that Bose calibrates for the ArenaMatch AM40 module. It replaces the waveguides fitted at the factory, so an AM40 supplied with a different horizontal pattern can be changed to 80°. Bose offers 60°, 80° and 100° horizontal waveguides for this module.

Why this product

Key Benefits

  • Calibrated for one module

    Each ArenaMatch waveguide is calibrated for a specific loudspeaker module, and the AMWG4080 is the 80° option for the AM40.

  • 80° horizontal coverage

    Fitting the waveguide gives the AM40 an 80° horizontal pattern, one of the three horizontal options Bose offers for this module.

  • Replaceable waveguides

    Bose designs the ArenaMatch AM40 so that its horizontal coverage can be changed by swapping waveguides, without replacing the loudspeaker module.

  • Asymmetrical array patterns

    Mixing waveguides lets designers customise coverage module by module and form asymmetrical patterns in left and right arrays.

Use cases

Applications

  • Stadium and arena arrays

    Sets the horizontal coverage of AM40 modules to match the width of the seating area each module serves.

  • Outdoor entertainment and hospitality venues

    Adapts AM40 modules used at outdoor restaurants, bars and entertainment areas to the shape of the audience area.

  • Retrofits and recommissioning

    Lets an installed AM40 array be re-aimed for a changed seating layout without buying new modules.

Technical details

Technical Specifications

Compatibility

Compatible Models

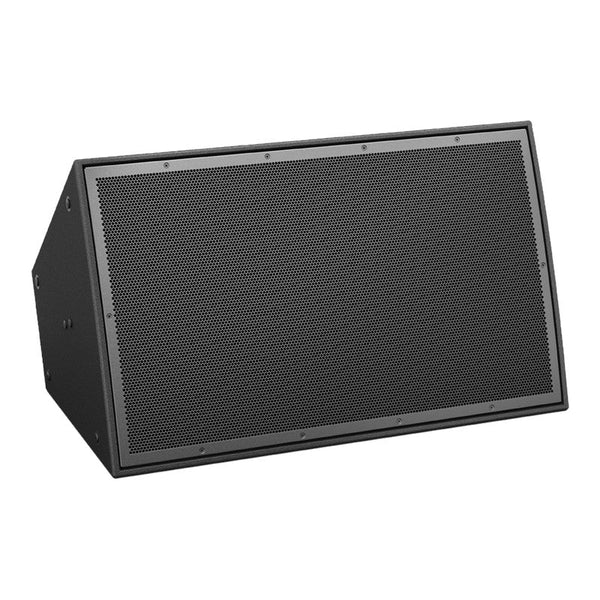

Bose ArenaMatch AM40 DeltaQ array module

Audio Performance

Horizontal Coverage
80°
Vertical Coverage
40° (set by the AM40 module)
Coverage Pattern
80° x 40° (AM40/80)
Maximum SPL
126 dB at 1 m, passive (AM40/80, calculated)
Sensitivity
97 dB SPL, 1 W at 1 m, passive (AM40/80)

Physical

Mounting
Replaces the factory-installed waveguides behind the grille

Model & Identification

Model
AMWG4080

In the box

What's Included

  • Bose AMWG4080 waveguide accessory set

Installation

Installation & Mounting

Recommended Loudspeaker Modules

The AMWG4080 fits the Bose ArenaMatch AM40 with 60° waveguide and the Bose ArenaMatch AM40 with 100° waveguide, changing either into an 80° x 40° module.

For new projects that need 80° coverage from the start, the Bose ArenaMatch AM40 with 80° waveguide is supplied with this waveguide already fitted, so a separate AMWG4080 is only needed to change the coverage of modules on site.

Installation

Bose publishes an AMWG Installation Guide for the AMWG4080 on the AM40 product page. Follow that guide for the fitting steps.

Ownership and support

Ownership & Support

Support

For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.

Complete your solution

Recommended Accessories

Expert FAQs

What does the Bose ArenaMatch AMWG4080 waveguide do?

The Bose ArenaMatch AMWG4080 waveguide sets the horizontal coverage of an ArenaMatch AM40 module to 80°. Combined with the 40° vertical coverage of the AM40, the module then has an 80° x 40° pattern, the same as the AM40/80 version.

Which loudspeaker is the AMWG4080 compatible with?

The Bose AMWG4080 is calibrated only for the ArenaMatch AM40 module. Each ArenaMatch module has its own waveguides, so the AM10, AM20 and AM40 cannot share them.

Can the AMWG4080 waveguide be changed on an installed AM40?

Yes. The Bose ArenaMatch AMWG4080 is a replaceable waveguide, and Bose describes the AM40 horizontal coverage as changeable by swapping between 60°, 80° and 100° waveguides. The fitting steps are in the AMWG Installation Guide that Bose publishes with the AM40 downloads.

Can I use different waveguides in the same ArenaMatch array?

The Bose ArenaMatch AMWG4080 can be mixed with other ArenaMatch waveguides in one array, to customise coverage module by module and to form asymmetrical patterns in left and right arrays.

Where do I find the installation guide for the AMWG4080?

The installation guide for the Bose ArenaMatch AMWG4080 is the AMWG Installation Guide, listed under User Documentation on the Bose Professional AM40 product page. The AM40 also has its own AM10/AM20/AM40 Installation Guide for the module itself, so both documents are useful on site.

Does the AMWG4080 change amplifier power or replace the AM40 loudspeaker?

No. The AMWG4080 is a mechanical waveguide accessory that changes the horizontal sound coverage of the compatible AM40 module. It is not a powered speaker or amplifier. The host loudspeaker still needs a correctly specified external amplifier, DSP preset and system design.
