Bose ArenaMatch AM40/100 Outdoor DeltaQ Array Loudspeaker, 100° x 40°

Model 794042-8880

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 100° × 40° coverage, 55 Hz to 18 kHz (-10 dB)
  • One 14 in (356 mm) LF14 woofer and six EMB2S compression drivers
  • 750 W passive continuous, 3000 W peak
  • IP55 direct-exposure outdoor rating, EN 54-24 certified, 34.9 kg
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions

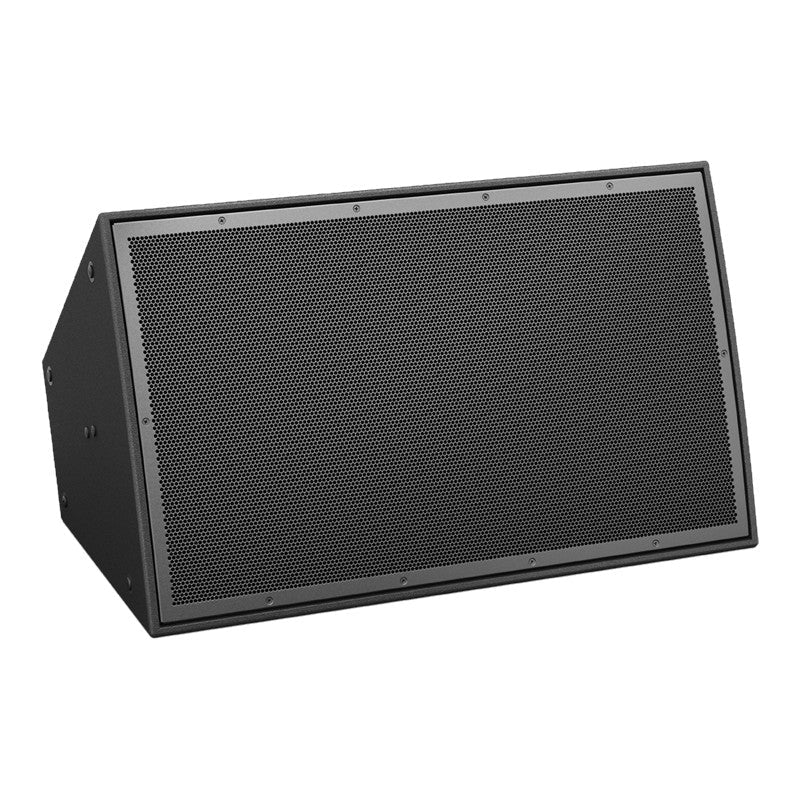

Bose ArenaMatch AM40/100 outdoor array loudspeaker module
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose ArenaMatch AM40/100?

The Bose ArenaMatch AM40/100 is an outdoor DeltaQ array loudspeaker module with a 100° × 40° coverage pattern, one 14 in woofer, six compression drivers and 750 W passive power handling. It is rated IP55 for direct outdoor exposure and certified to EN 54-24, built for music and speech in stadiums, arenas and large outdoor venues such as those in the UAE. Part code 794042-8880.

The Bose ArenaMatch AM40/100 is the 40° vertical module of the ArenaMatch DeltaQ outdoor array series, fitted with a 100° horizontal waveguide. Modules with 10°, 20° or 40° vertical coverage combine into arrays whose directivity changes from box to box to match the audience area, and Bose uses 40° modules for point-source applications as well as in line arrays.

Why this product

Key Benefits

  • DeltaQ array design

    Directivity, or Q, can vary from module to module in an array, so coverage follows the shape of the seating and listeners hear consistent, intelligible sound.

  • 40° vertical module, 100° waveguide

    The 40° vertical pattern and 100° horizontal waveguide give the widest 100° × 40° footprint, and mixing 10°, 20° and 40° modules builds arrays with fewer boxes, better sight lines and lower weight.

  • Replaceable horizontal waveguides

    The 100° waveguide can be swapped for a 60° or 80° one, and left and right arrays can use different waveguides to form asymmetrical patterns.

  • High-output transducers

    One LF14 neodymium 14 in woofer and six titanium-diaphragm EMB2S compression drivers deliver high-SPL music and clear speech.

  • Built for direct outdoor exposure

    A three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating and molded input cover give an IP55 rating.

  • Passive, bi-amp or 70 V / 100 V

    Every module ships with a passive crossover, bi-amp capability and 70 V / 100 V transformer inputs, so the same box suits low-impedance arrays or distributed lines.

Use cases

Applications

  • Professional stadiums and arenas

    The 40° module serves point-source positions and line-array slots that need wide vertical coverage.

  • Educational sports complexes

    Outdoor rating and EN 54-24 certification suit fields that also need emergency announcements.

  • Outdoor hospitality venues and restaurant and bar areas

    Weatherproof arrays carry music and speech across large terraces and event lawns.

  • Places of worship

    Arrays deliver clear speech to large outdoor congregations.

Technical details

Technical Specifications

System

System Type
Passive two-way DeltaQ array module, outdoor rated
Low-Frequency Driver
1 × Bose Professional LF14 neodymium 14 in (356 mm) woofer, 4 in (102 mm) voice coil
High-Frequency Driver
6 × Bose Professional EMB2S titanium-diaphragm neodymium compression drivers, 2 in (51 mm) voice coil
Crossover
950 Hz, internal passive or external bi-amp (ControlSpace Designer presets)

Frequency

Frequency Range
55 Hz to 18 kHz (-10 dB)

Performance & Coverage

Coverage
100° × 40° (horizontal × vertical)
Sensitivity
94 dB LF, 101 dB HF bi-amp; 96 dB passive (1 W at 1 m)
Maximum SPL
122 dB LF, 123 dB HF, 125 dB passive (calculated, at 1 m)

Power

Power Handling
Passive 750 W continuous, 3000 W peak; LF 600 W continuous, 2400 W peak; HF 150 W continuous, 600 W peak
Recommended Amplifier Power
Passive 750 W to 1500 W; bi-amp LF 600 W to 1200 W, HF 150 W to 300 W
Nominal Impedance
8 Ω passive; 8 Ω + 8 Ω bi-amp
Transformer Taps 70V
100 W, 200 W, 400 W
Transformer Taps 100V
200 W, 400 W

Physical

Grille
Three layers: perforated stainless steel, acoustic foam, stainless steel mesh, powder-coated finish
Mounting
Standard M12 threaded inserts, or Bose accessory mounting hardware
Dimensions
489 × 783 × 400 mm (19.3 × 30.8 × 15.8 in) (H × W × D)
Weight
34.9 kg (77.0 lb)

Environmental

IP Rating
IP55 per EN60529; IP33C per EN 54-24
Outdoor Rating
Rated for direct-exposure outdoor installations

Certifications & Warranty

Certifications
EN 54-24:2008 loudspeaker for voice alarm systems

In the box

What's Included

  • 1 × ArenaMatch AM40 module

  • 1 × input panel cover

  • 8 × input cover screws

  • 1 × installation guide

Installation

Installation & Mounting

Recommended Amplifiers

In passive mode, one channel of the Bose PowerShareX PSX4804D delivers 1200 W, inside Bose's recommended 750 W to 1500 W for the AM40/100, so one amplifier powers four modules. For 70 V or 100 V operation, size each channel from the total selected transformer taps, cable losses and the design headroom; verify the allocation in Bose's PowerShare Design Tool.

For bi-amp operation, a PSX4804D channel (1200 W) suits the LF section's 600 W to 1200 W range, and a channel of the Bose PowerShareX PSX1204D (300 W) suits the HF section's 150 W to 300 W range. Bose supplies presets in ControlSpace Designer software for signal processing.

Recommended Rigging

Bose lists the AMUBRKT U-bracket, AMAPSHRT array plates short kit, AMAPLONG array plates long kit, AMMCPLAT module connect plate, AMAPSPRD array spreader bar and AMPULL pullback bracket as optional accessories for this module. The standard M12 threaded inserts also accept custom array frames.

Recommended Waveguides

The AM40/100 ships with the 100° waveguide. To change coverage later without replacing the module, fit the AM40 60° waveguide or the AM40 80° waveguide.

Ownership and support

Ownership & Support

Support

For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.

Complete your solution

Recommended Accessories

Expert FAQs

What is the power rating of the Bose ArenaMatch AM40/100?

The Bose ArenaMatch AM40/100 handles 750 W continuous and 3000 W peak in passive mode. In bi-amp mode the LF section takes 600 W continuous (2400 W peak) and the HF section 150 W continuous (600 W peak).

Which amplifier works with the Bose AM40/100?

The Bose AM40/100 needs 750 W to 1500 W per module at 8 Ω in passive mode, which a single 1200 W channel of the Bose PowerShareX PSX4804D provides. For bi-amp use, Bose recommends 600 W to 1200 W for the LF section and 150 W to 300 W for the HF section, with presets from ControlSpace Designer.

Can the Bose AM40/100 run on a 70 V or 100 V line?

The Bose AM40/100 has a built-in transformer with 70 V taps of 100 W, 200 W and 400 W and 100 V taps of 200 W and 400 W. One 1200 W amplifier channel can drive three modules on the 400 W tap.

Can the Bose AM40/100 be bi-amped?

The Bose AM40/100 ships with bi-amp capability, with separate LF and HF inputs at 8 Ω each. The internal passive crossover point is 950 Hz, and in bi-amp mode Bose ControlSpace presets handle the crossover instead.

Can I change the horizontal coverage of the Bose AM40/100?

The Bose AM40/100 uses a replaceable horizontal waveguide, so its 100° pattern can be changed to 60° or 80° with a waveguide kit. Left and right arrays can also use different waveguides to form asymmetrical patterns.

Is the Bose AM40/100 suitable for direct outdoor exposure?

The Bose AM40/100 is rated for direct-exposure outdoor installations, with an IP55 rating per EN60529. It has a three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating and a molded input cover.

Is the Bose AM40/100 certified for voice alarm systems?

The Bose AM40/100 is certified to EN 54-24:2008 as a loudspeaker for voice alarm systems for fire detection and fire alarm systems in buildings. Under EN 54-24 its ingress rating is IP33C; refer to the installation guide for the certified configuration.

How much does the Bose AM40/100 weigh and how is it rigged?

The Bose AM40/100 weighs 34.9 kg and measures 489 × 783 × 400 mm. It uses standard M12 threaded inserts for Bose array accessories or custom array frames.
