JBL Professional

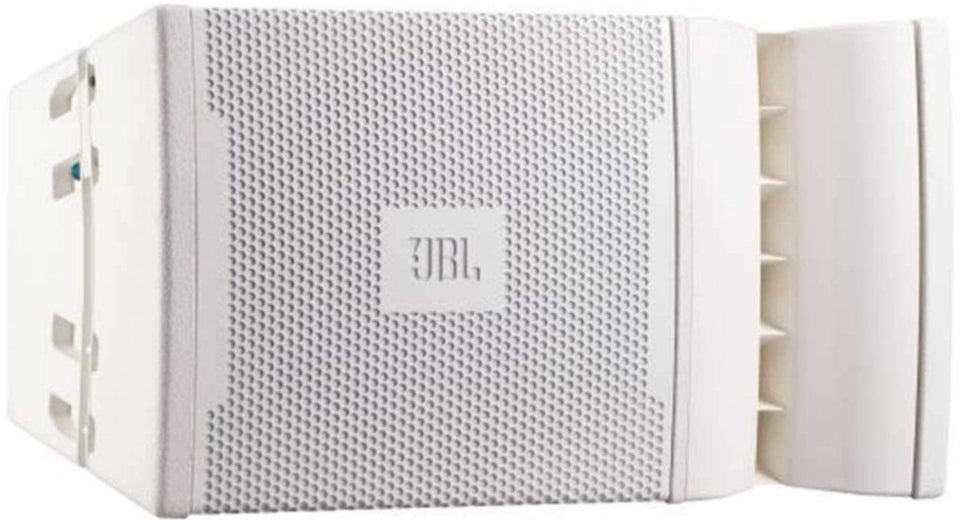

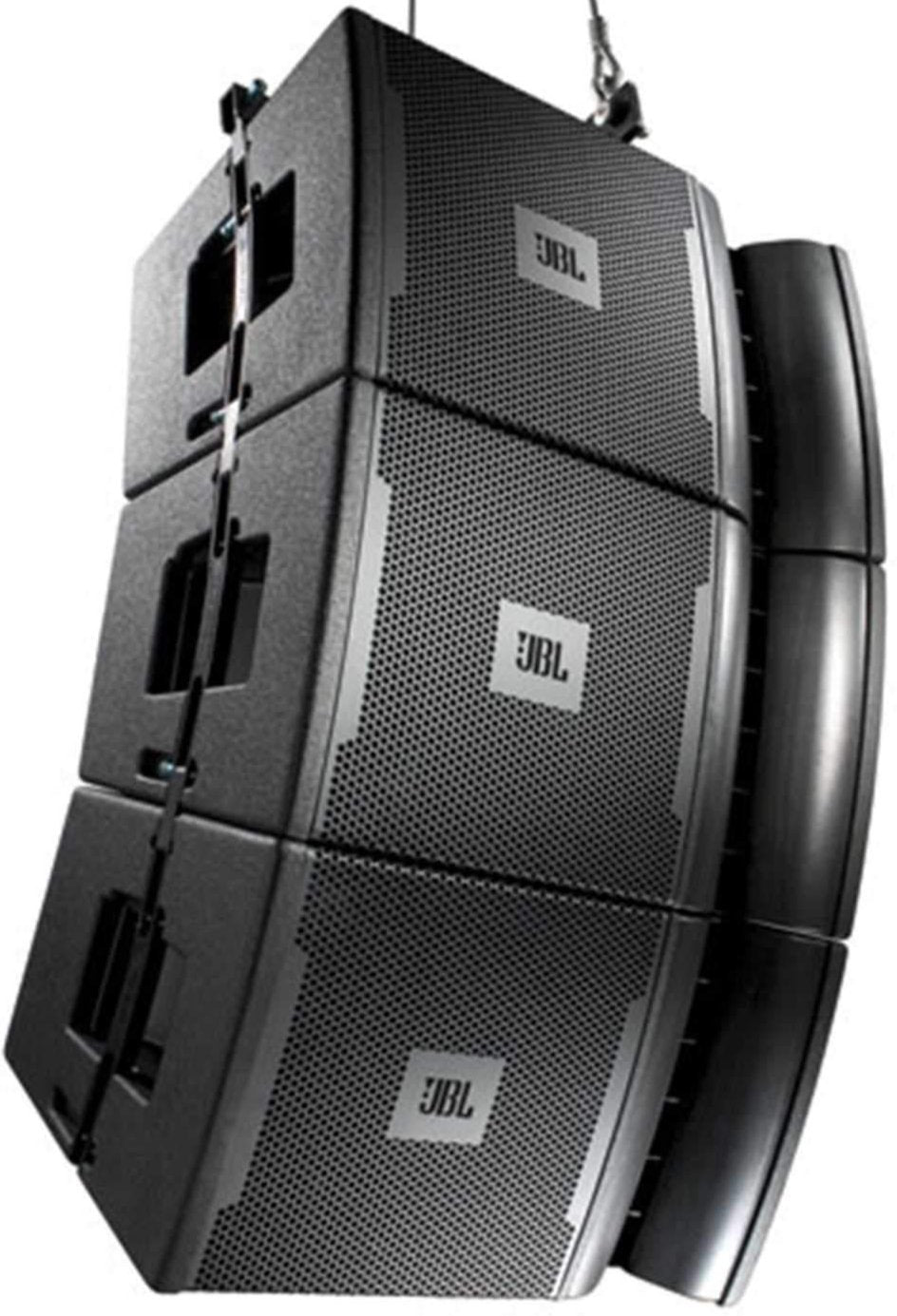

CorporateAV.ae is a supplier of genuine JBL Professional products in the UAE, and this collection lists 355 of them: Control ceiling and pendant speakers, CBT columns, AWC all-weather and AE Series installation speakers, VTX line arrays and PRX, EON, SRX, IRX and VRX portable speakers.

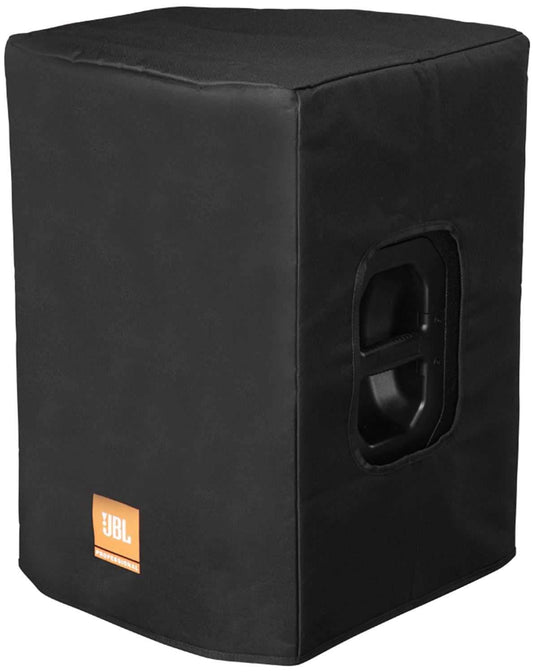

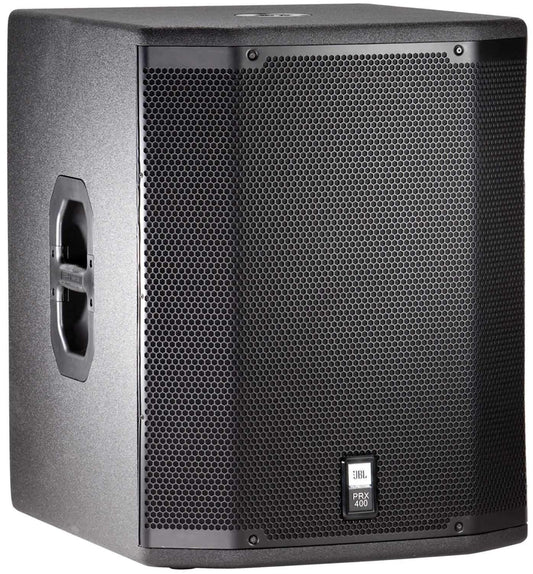

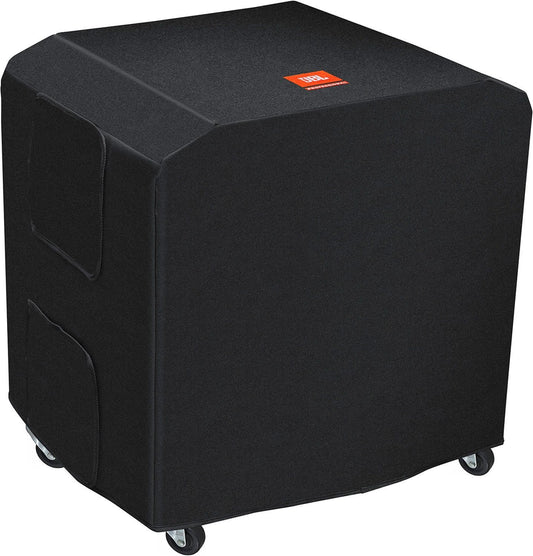

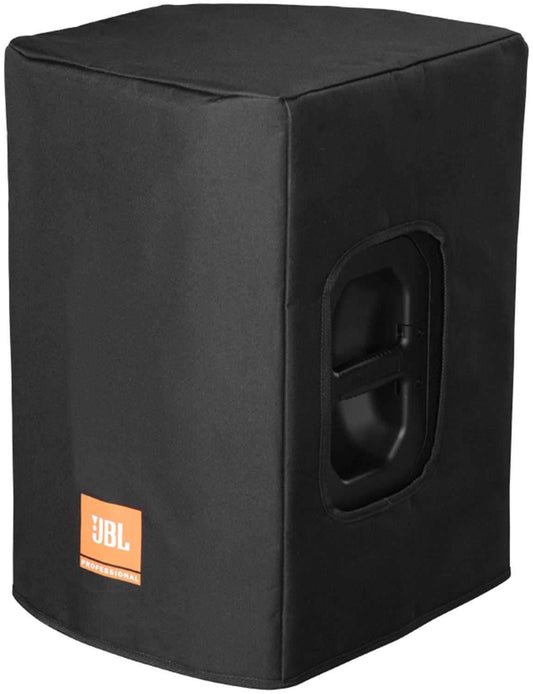

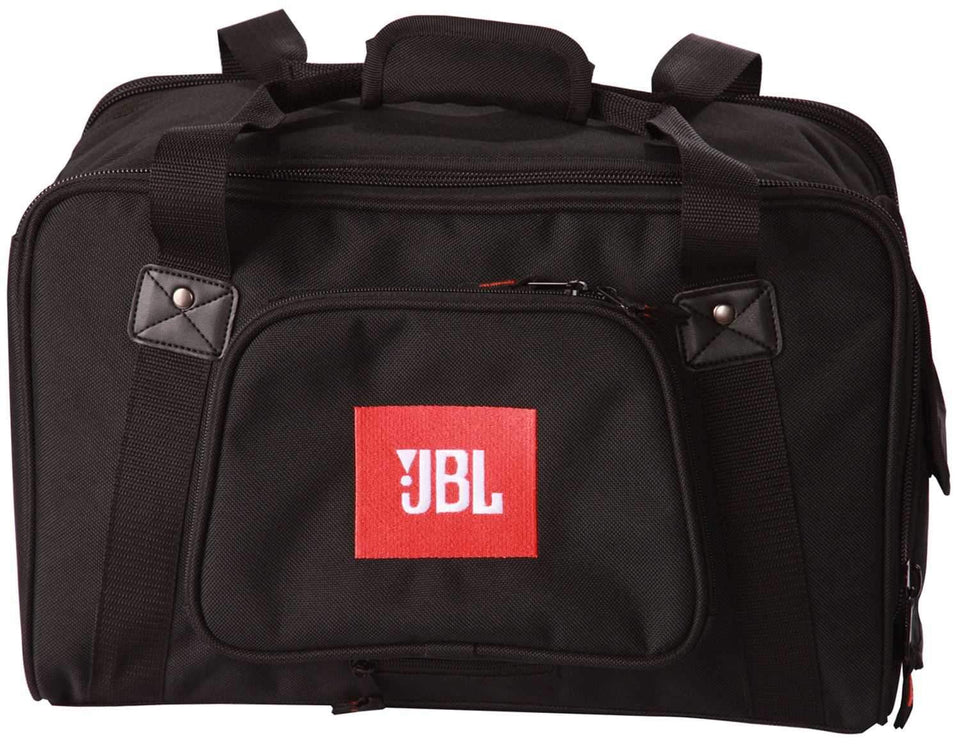

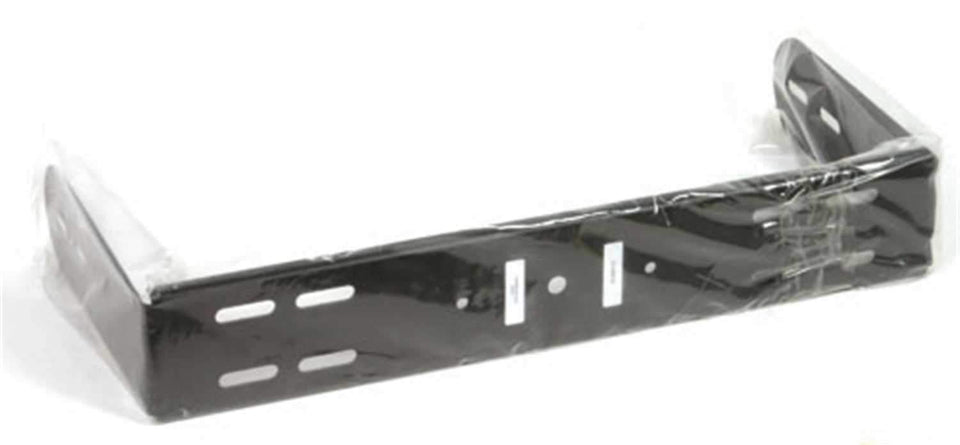

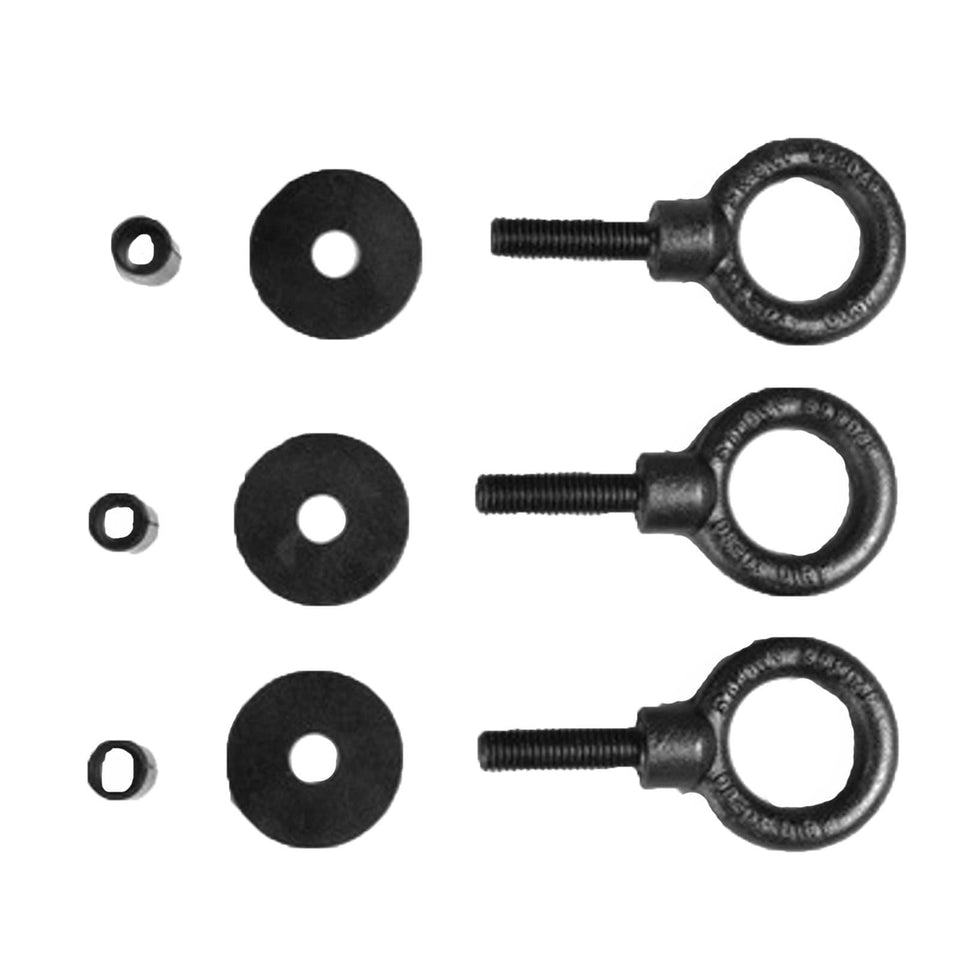

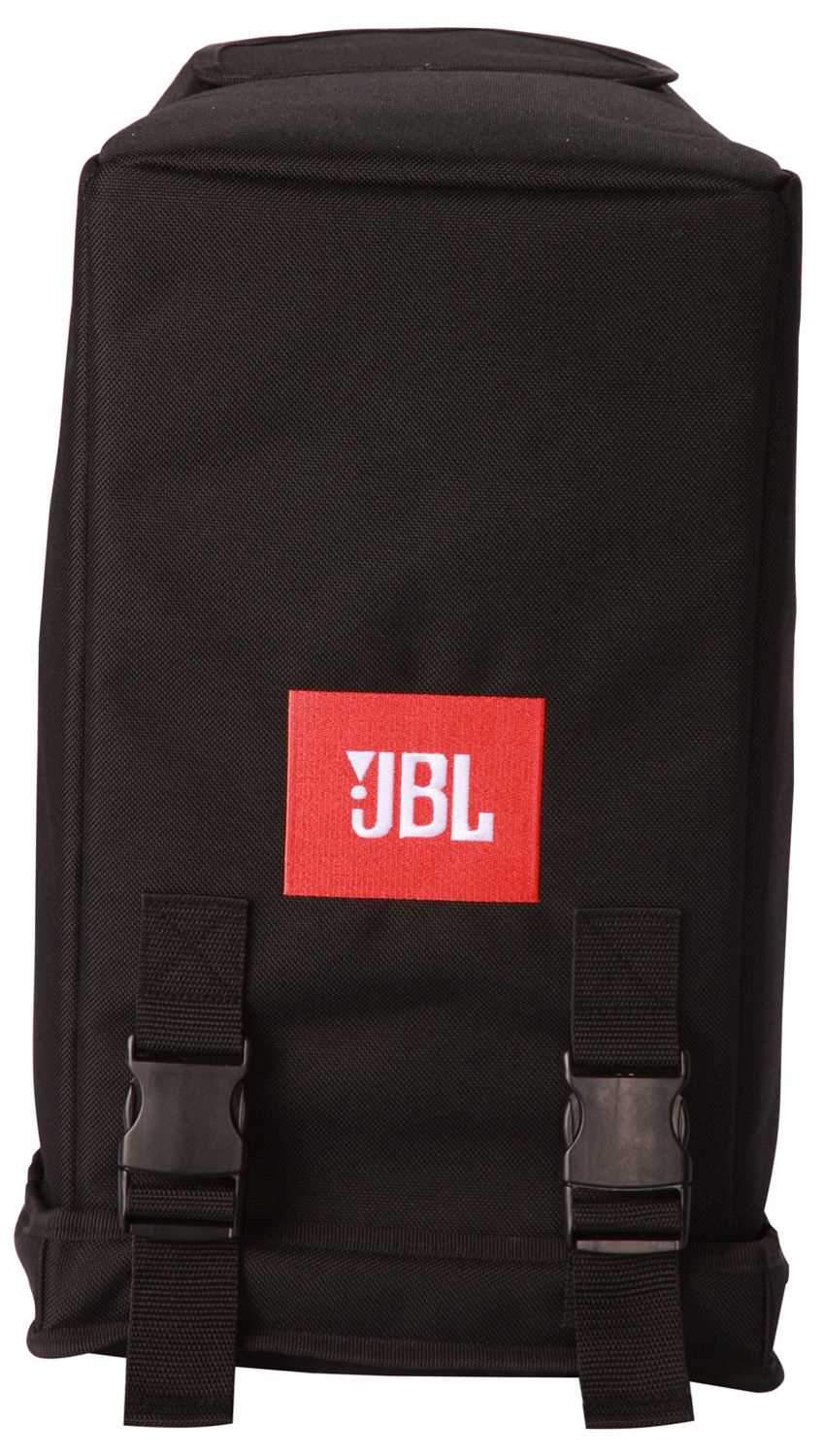

It also lists JBL subwoofers, the CSA-2120 amplifier, 104-BT studio monitors and JBL flying hardware, covers and cases.

Choose by room size and level. The JBL Control 24CT MicroPlus is a compact background music speaker with a 115 mm woofer, 150° coverage and a 25 W 70 V / 100 V transformer, with only 105 mm depth.

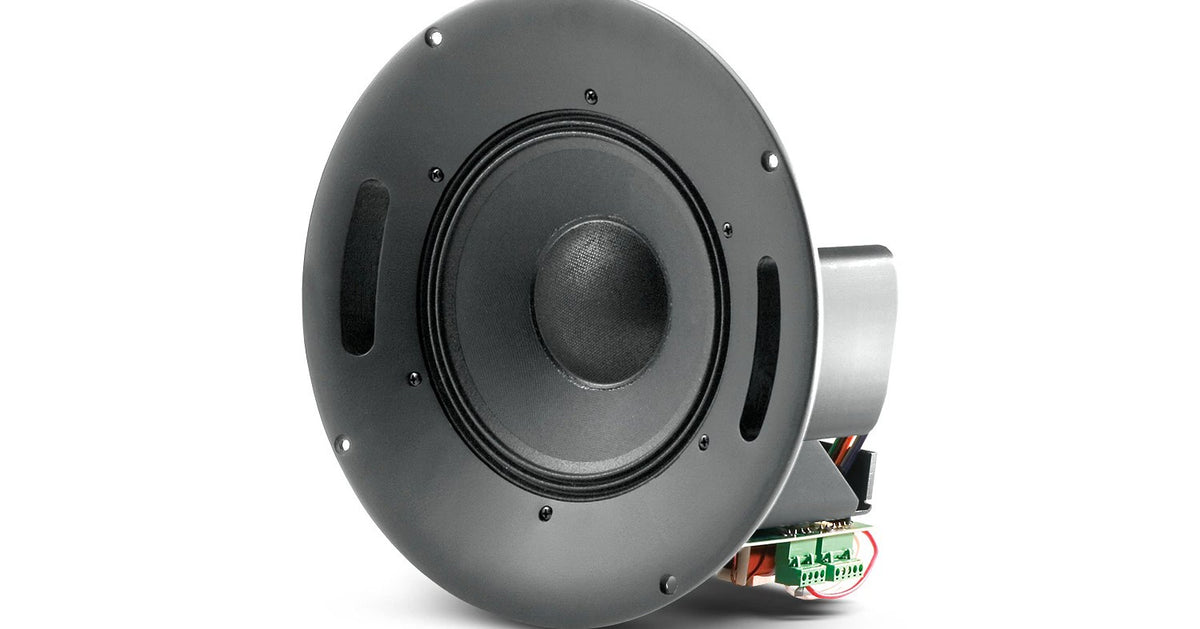

For higher levels and larger rooms, the Control 328CT 8-inch coaxial has a compression driver, 120° coverage and 250 W handling, and the Control 322C 12-inch coaxial handles 400 W with 90° coverage.

JBL CBT (Constant Beamwidth Technology) columns keep a consistent coverage pattern over frequency and let the installer set the vertical coverage, so sound reaches the audience rather than the ceiling and floor.

The CBT 70J-1 switches between 45° vertical for medium throw and 25° for long throw, the CBT 100LA-1 uses sixteen 50 mm drivers with 40° or 15° settings, and the CBT 1000 adds tapered horizontal coverage with bass below 40 Hz.

The JBL AWC (All-Weather Compact) range is designed for outdoor use. JBL rates the AWC129 IP56, with a 12-inch 2-way coaxial design, 90° × 90° coverage, 400 W handling, a 55 Hz to 20 kHz response and a 200 W 70 V / 100 V transformer.

This collection also lists the AWC159 with a 15-inch woofer, the AWC82 and AWC62 compact models and the AWC15LF low-frequency speaker.

The JBL AE (Application Engineered) Series is a range of installation loudspeakers and subwoofers with rotatable horns for fixed venues. The AC28/95, for example, is a compact dual 8-inch 2-way speaker with a 90° × 60° rotatable horn, 750 W programme rating and NL4 plus screw-terminal inputs.

The collection lists AE Series models such as the AC18/95, AC26, AC195, AM7212/66 and ASB subwoofers, which suit ballrooms, auditoriums and multi-purpose halls.

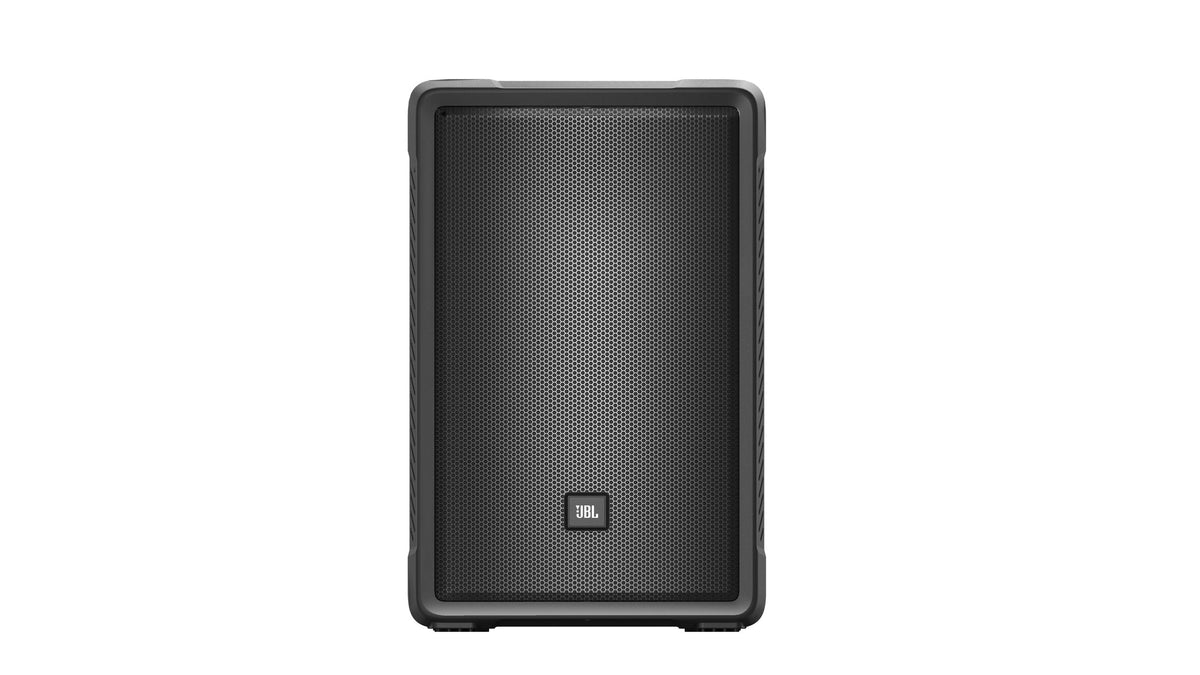

The JBL IRX112BT is a powered 12-inch portable PA speaker with Bluetooth for stereo streaming of music and backing tracks. It includes dbx AFS2 automatic feedback suppression and covers 53 Hz to 20 kHz.

The JBL 104-BT studio monitors also stream over Bluetooth 5.0, with a 60 W Class D amplifier (30 W per speaker) and 4.5-inch coaxial drivers, for edit suites and small studios.

JBL rates the PRX915 at 1,000 W RMS and 2,000 W peak, with a 133 dB maximum SPL and 90° × 50° dispersion. It is a powered 2-way 15-inch PA speaker with Class D amplification.

It includes DriveRack processing with automatic feedback suppression, a system limiter and 180 ms of speaker delay. The matching PRX918XLF subwoofer reaches 30 Hz at -10 dB with 1,000 W RMS.

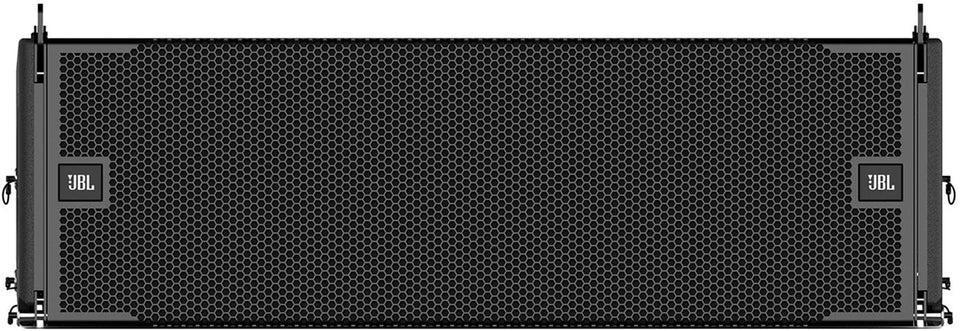

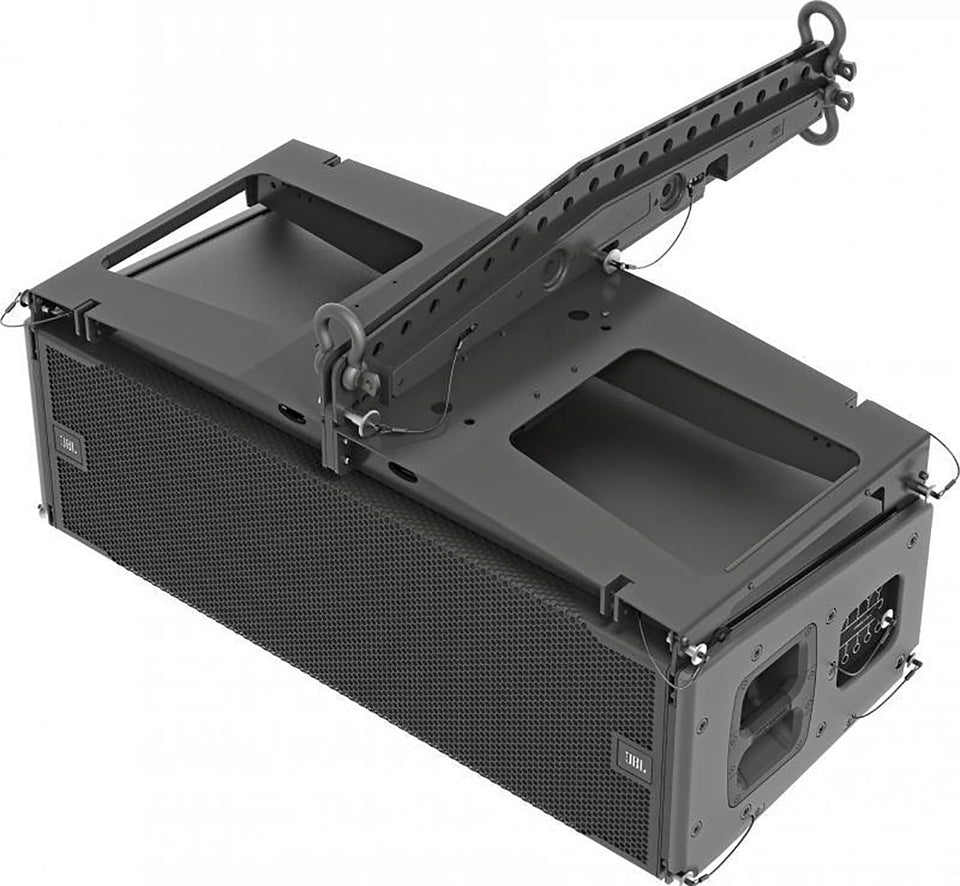

JBL VTX is JBL's touring and large-venue line array family. The VTX A12 is a dual 12-inch line array module with 90° horizontal coverage down to 250 Hz, Differential Drive woofers and integrated rigging for fast deployment.

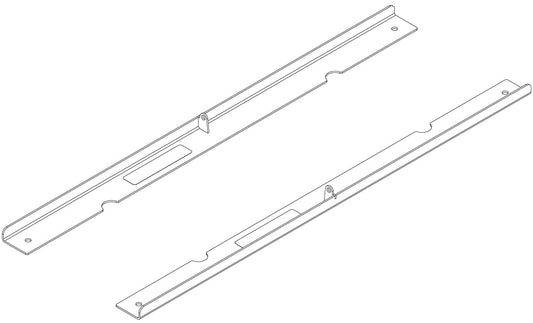

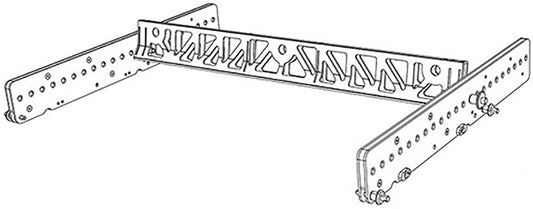

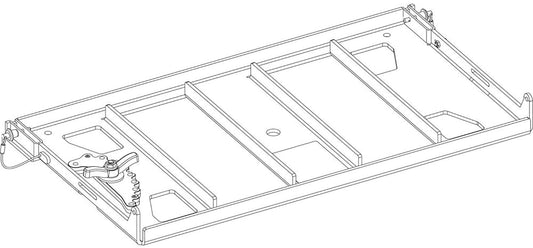

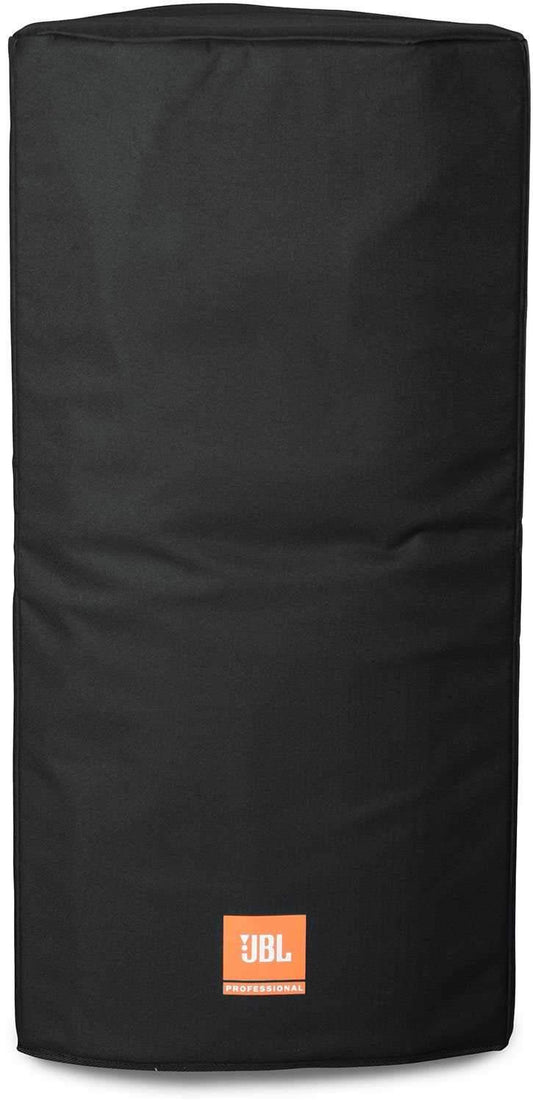

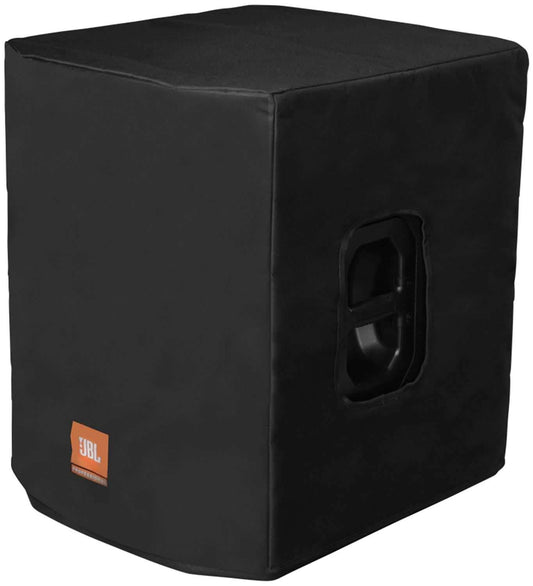

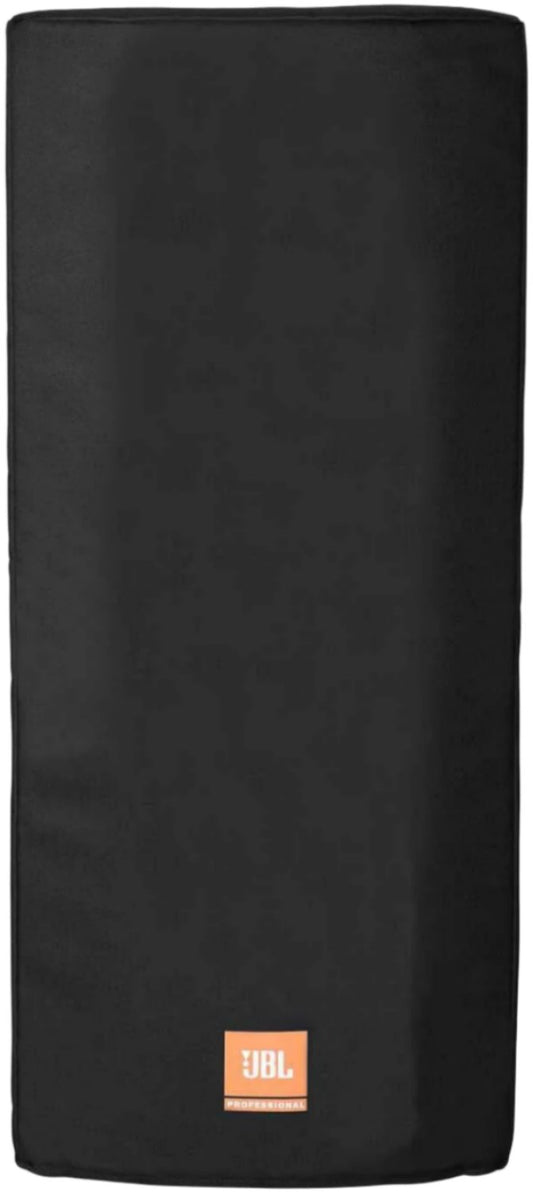

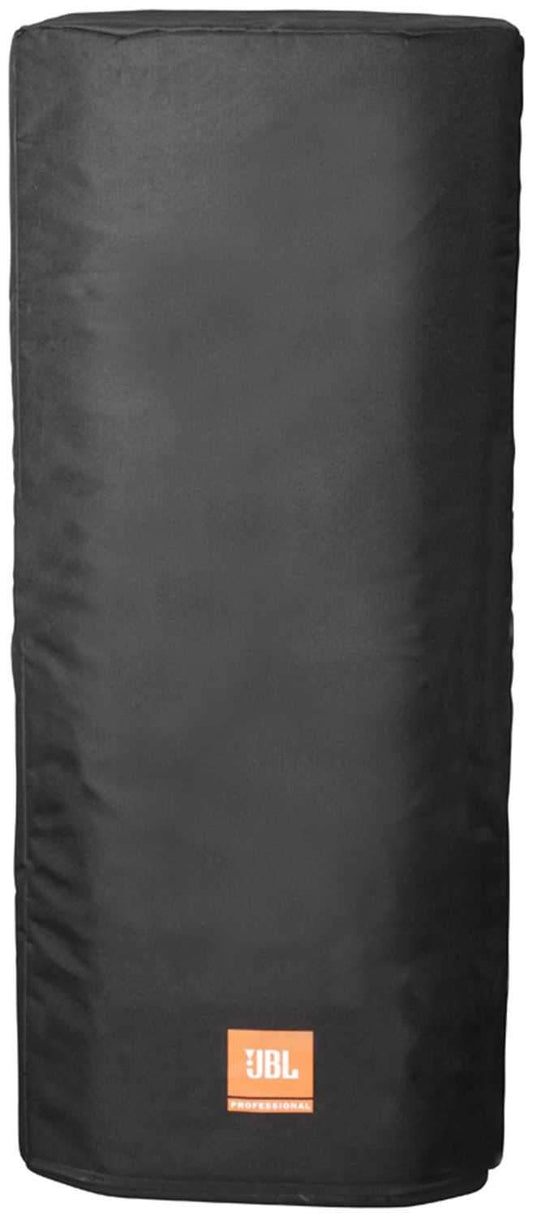

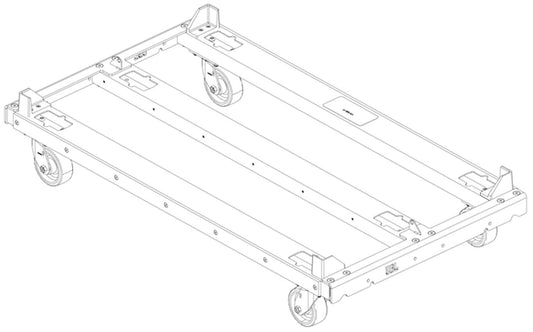

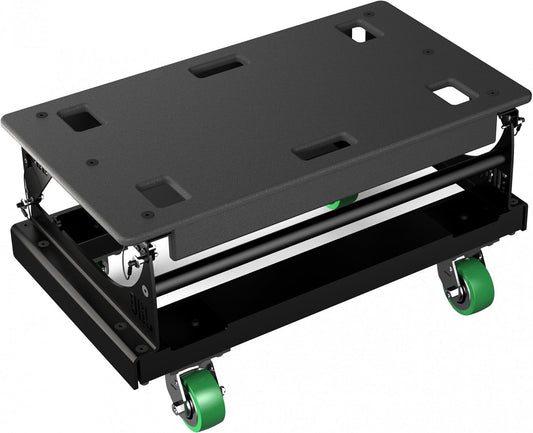

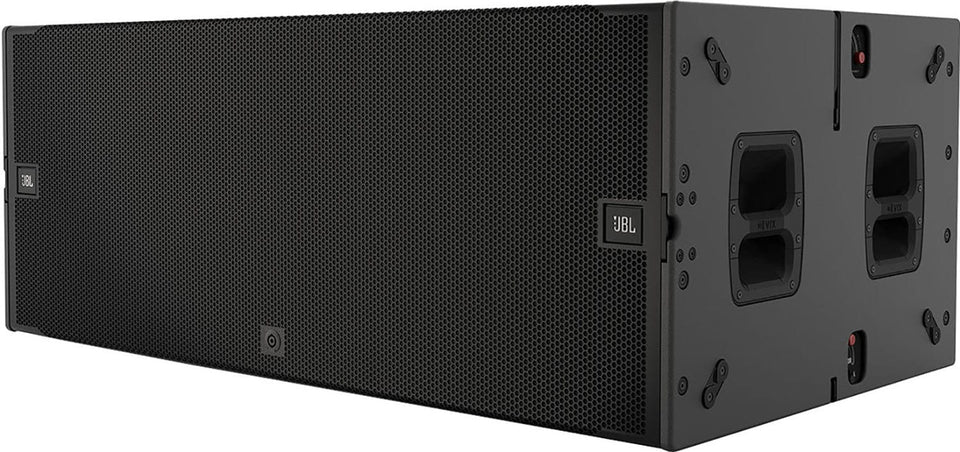

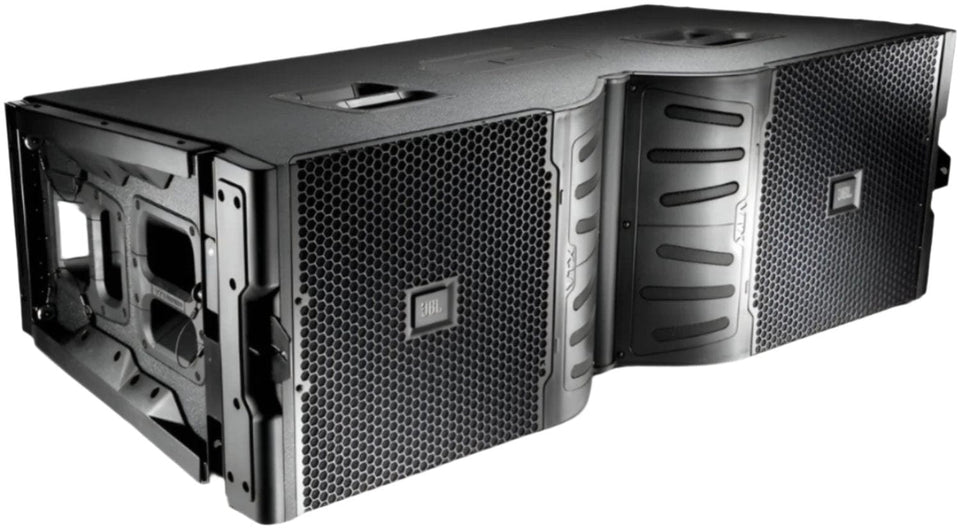

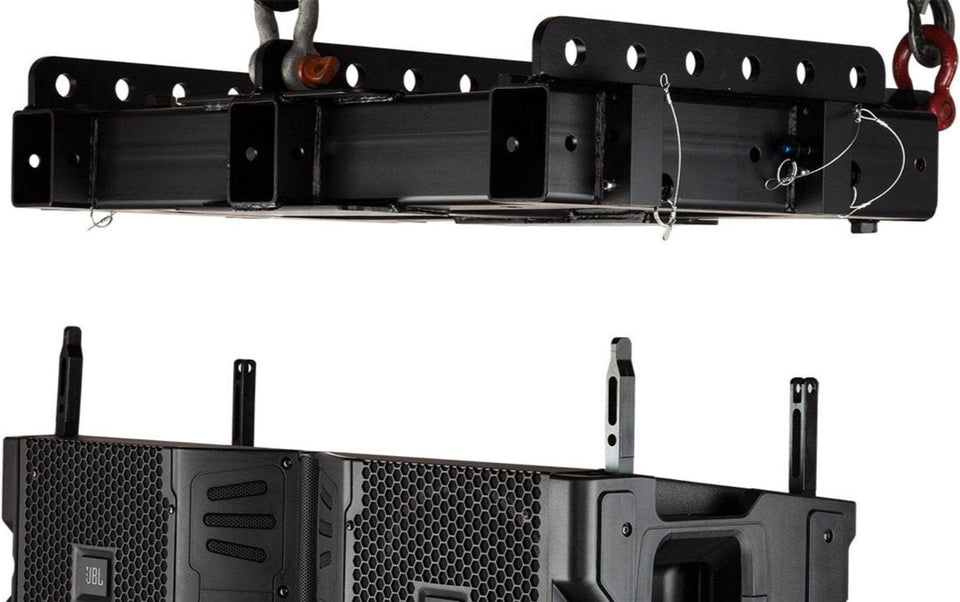

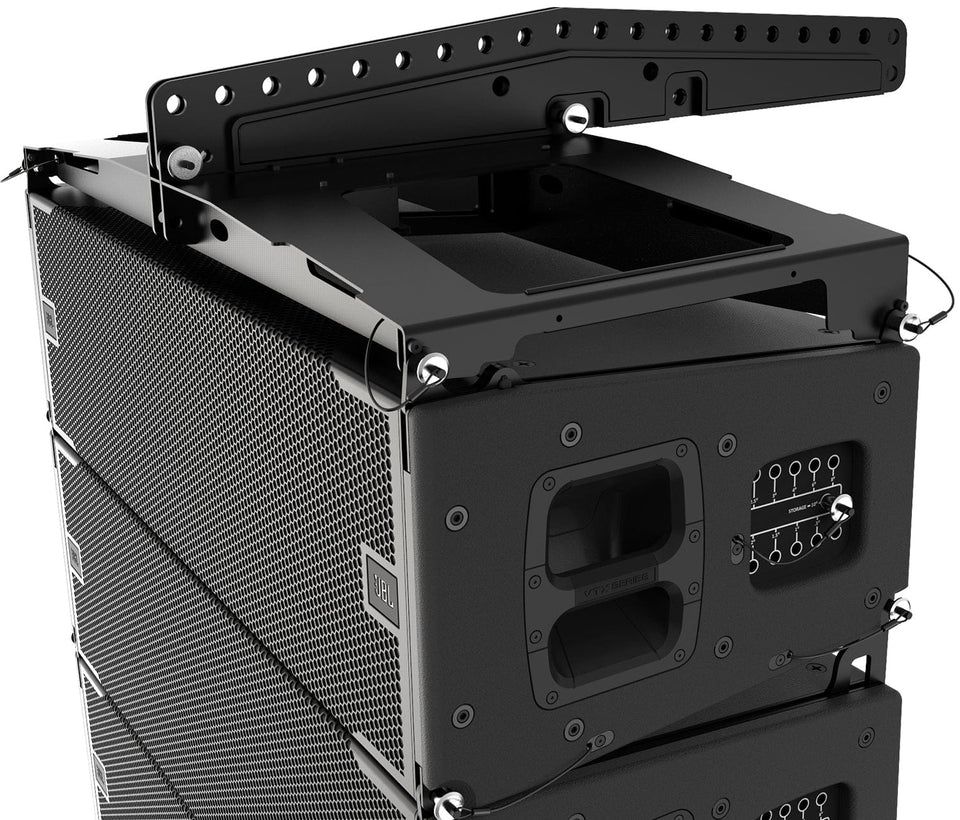

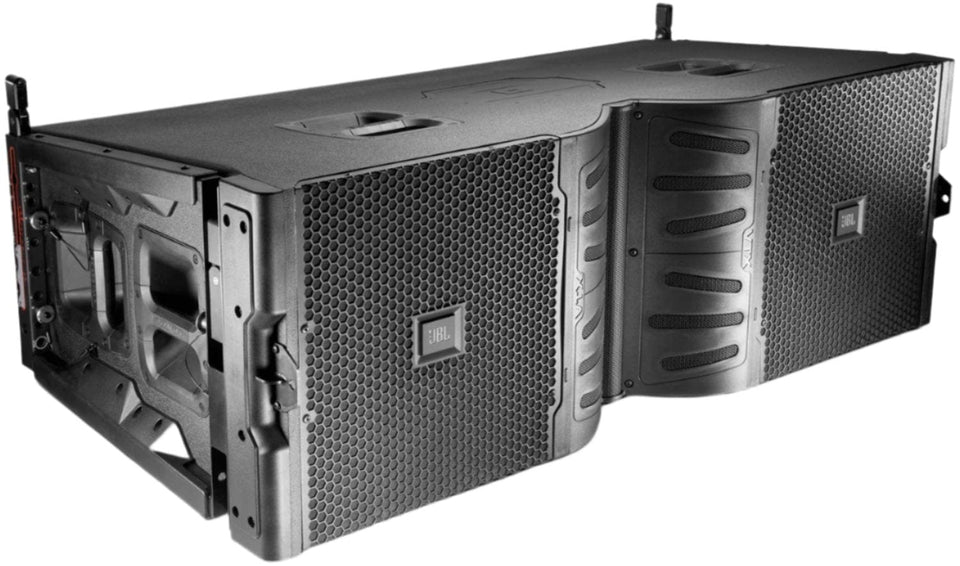

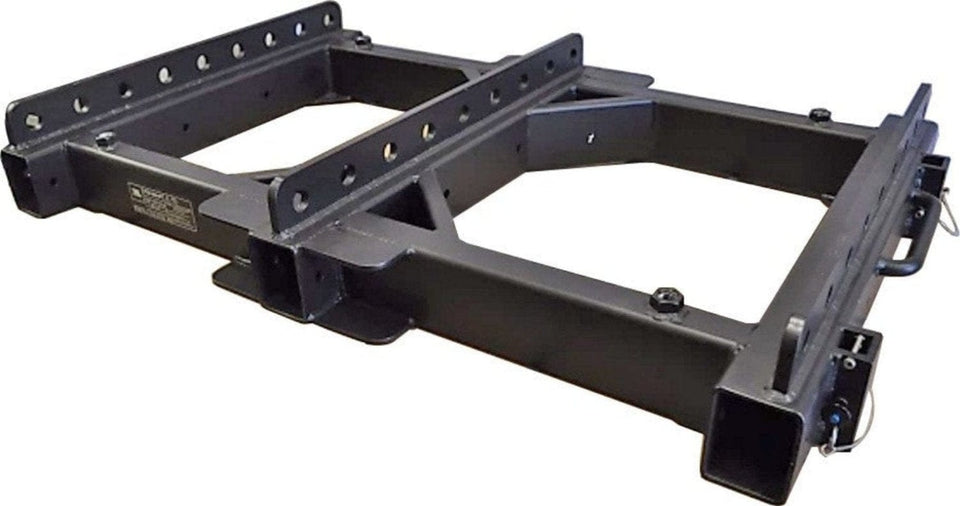

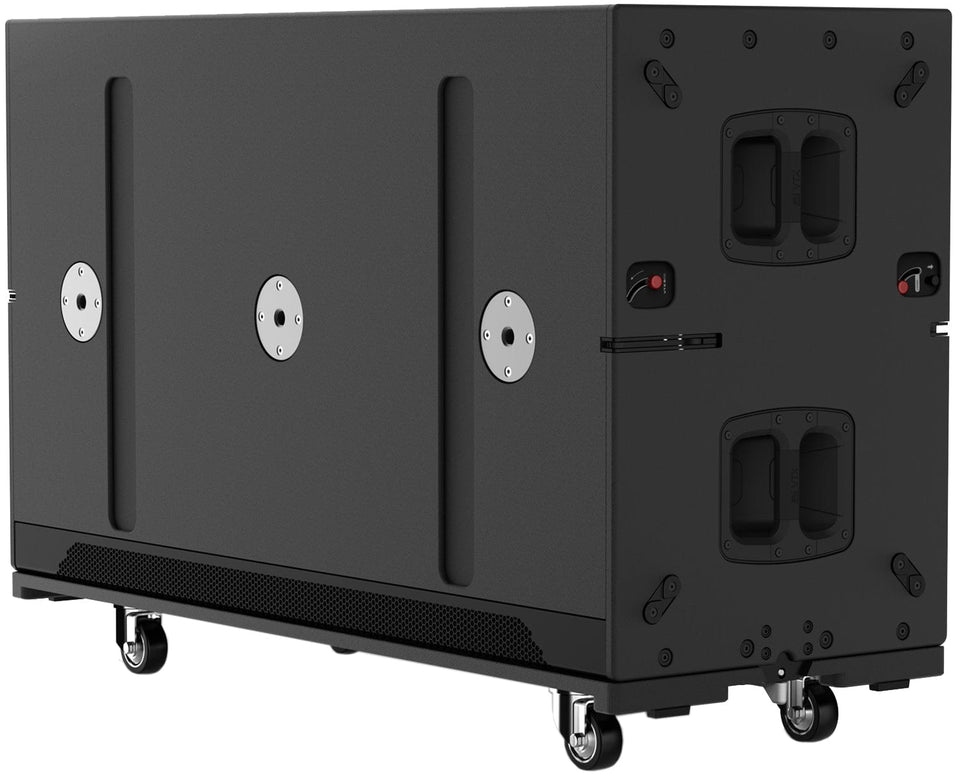

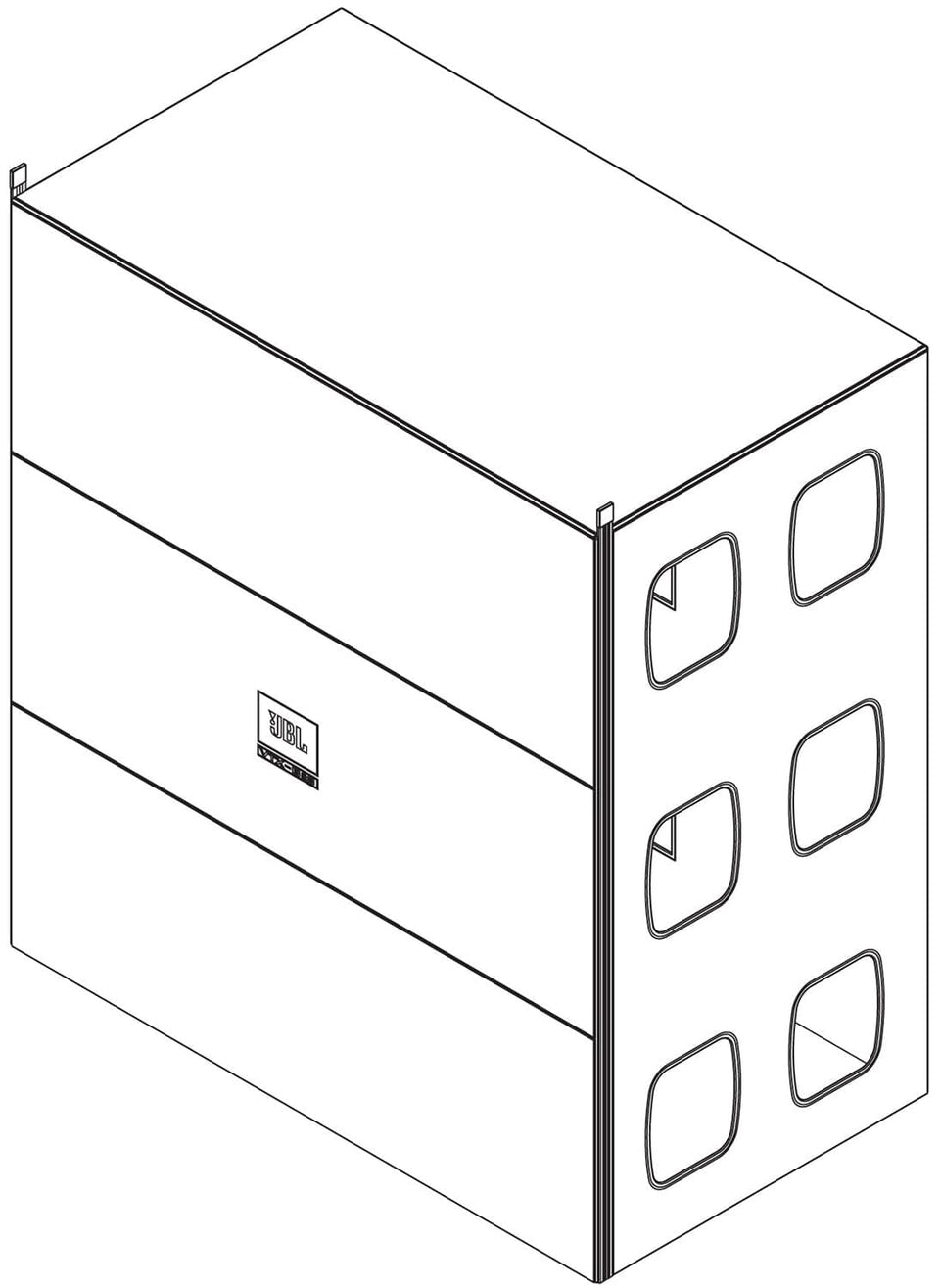

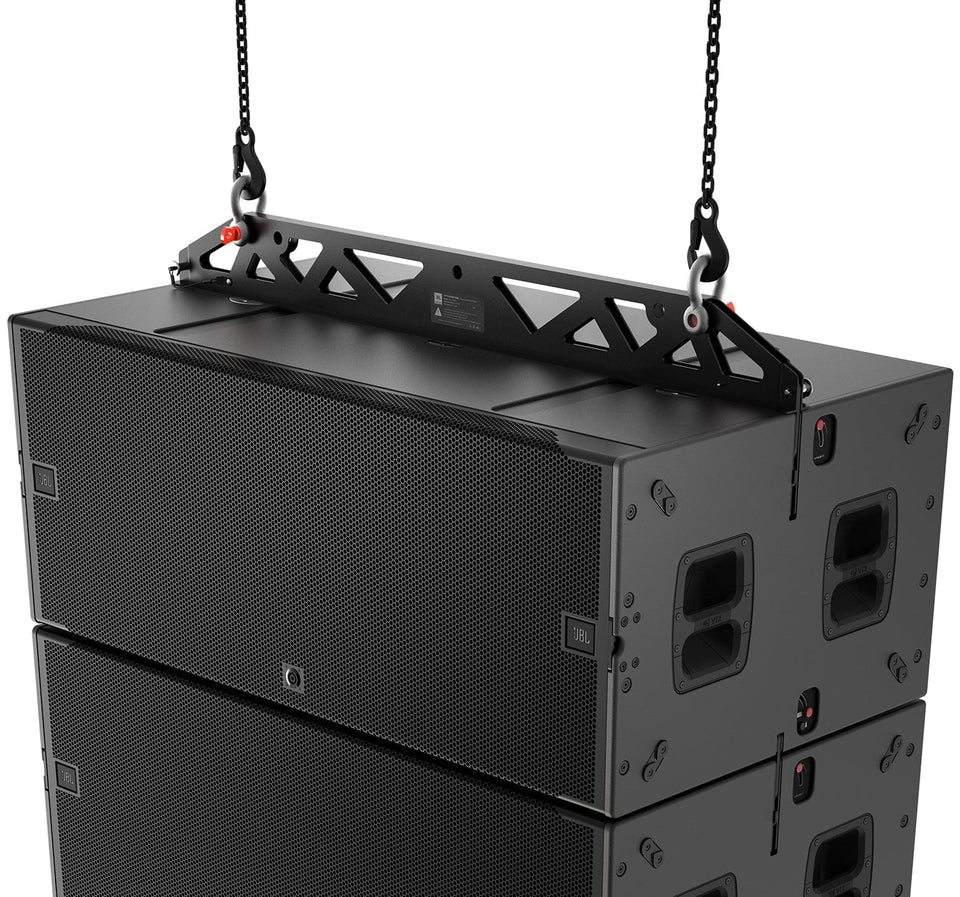

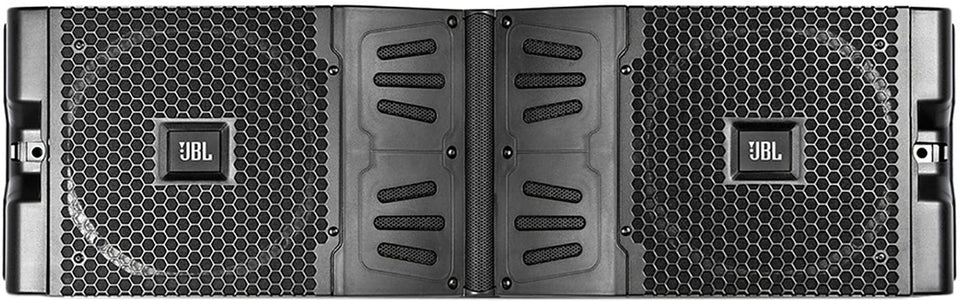

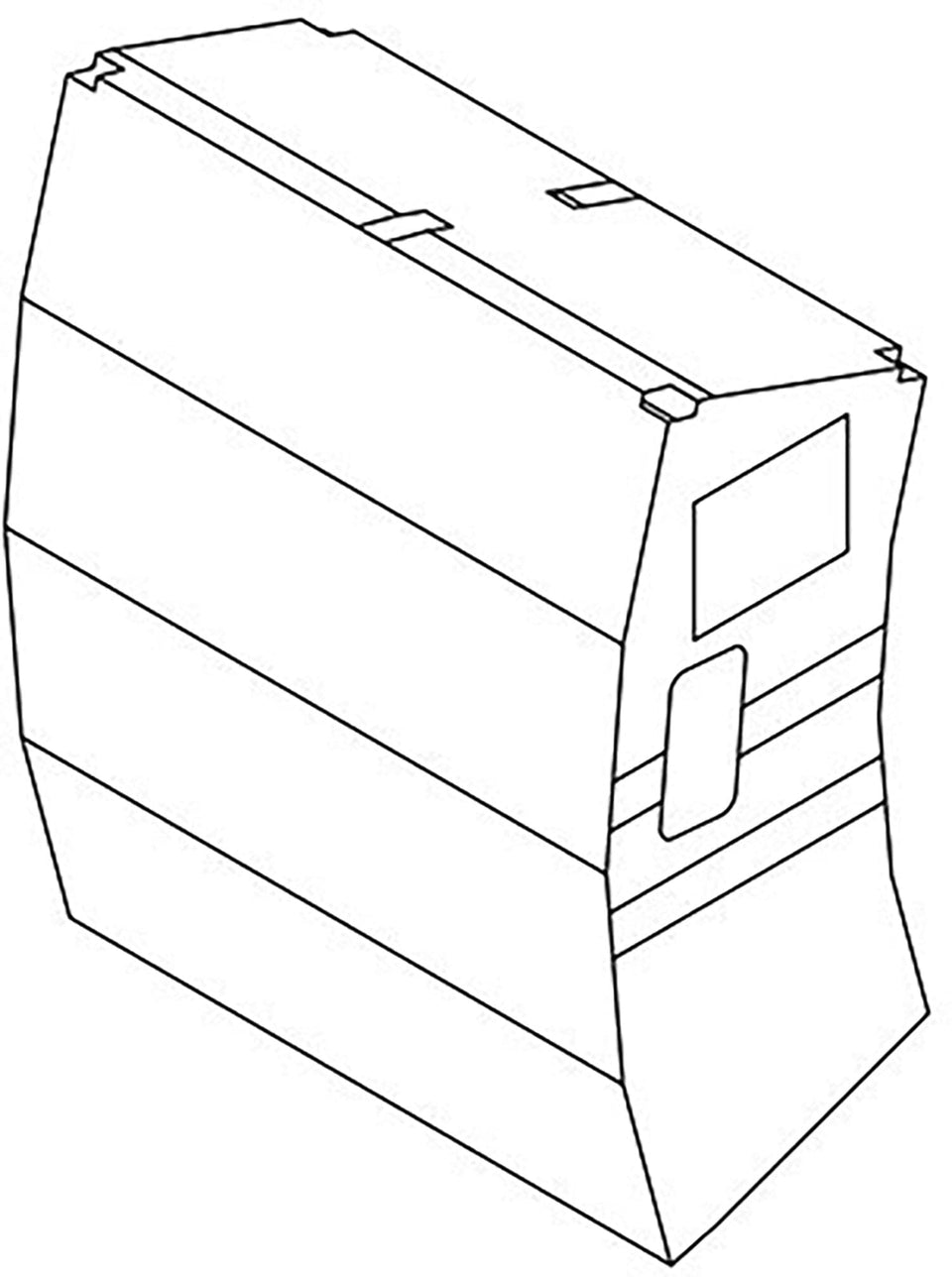

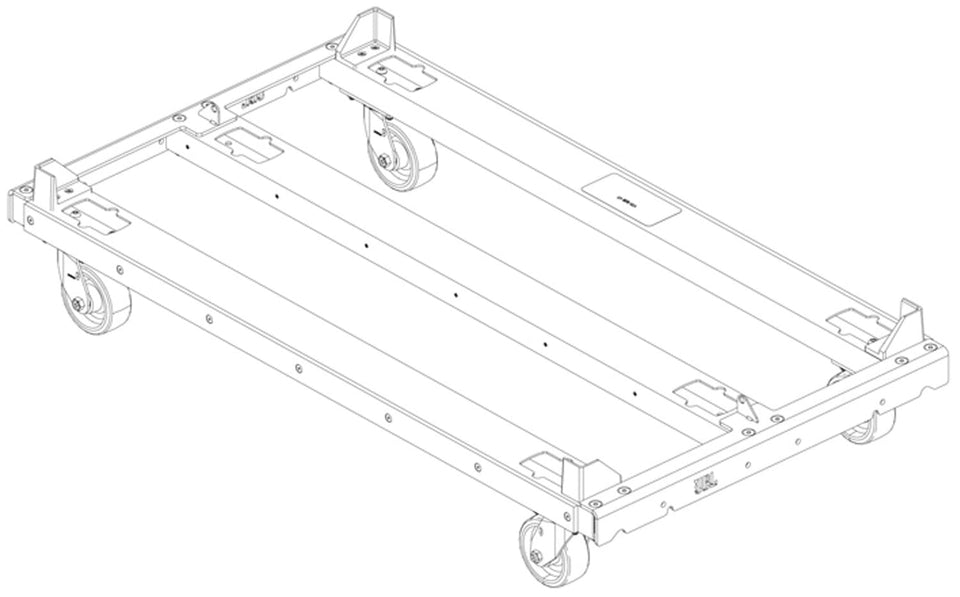

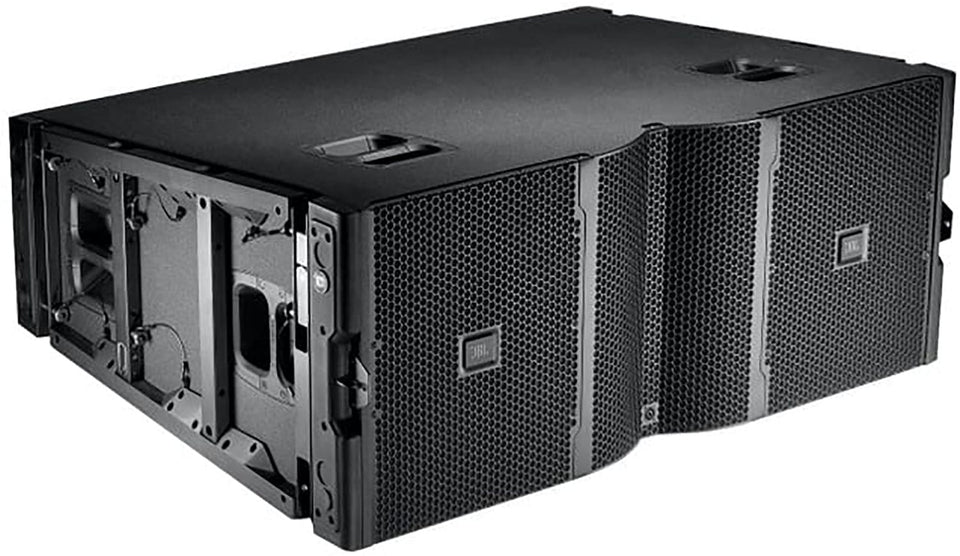

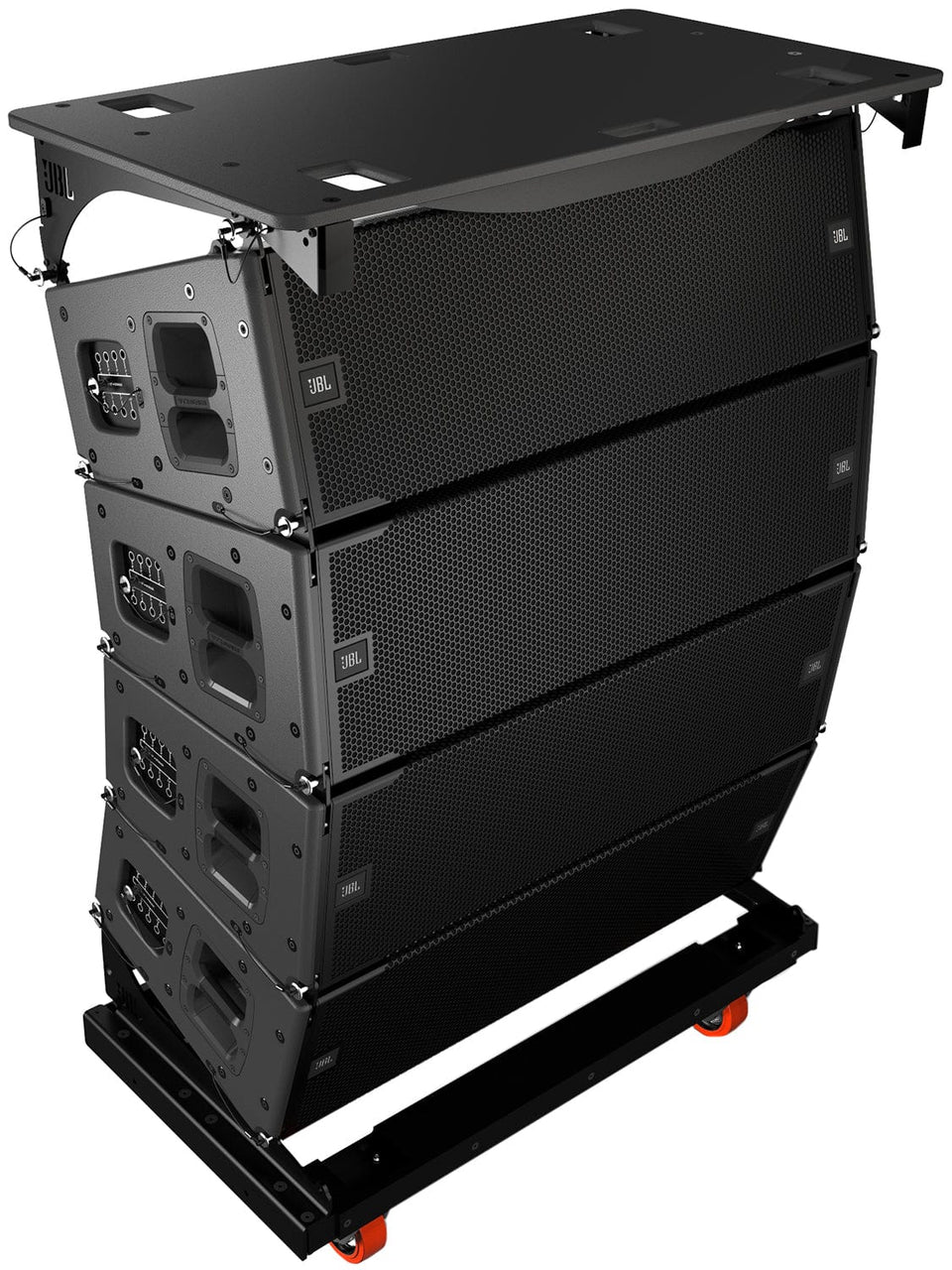

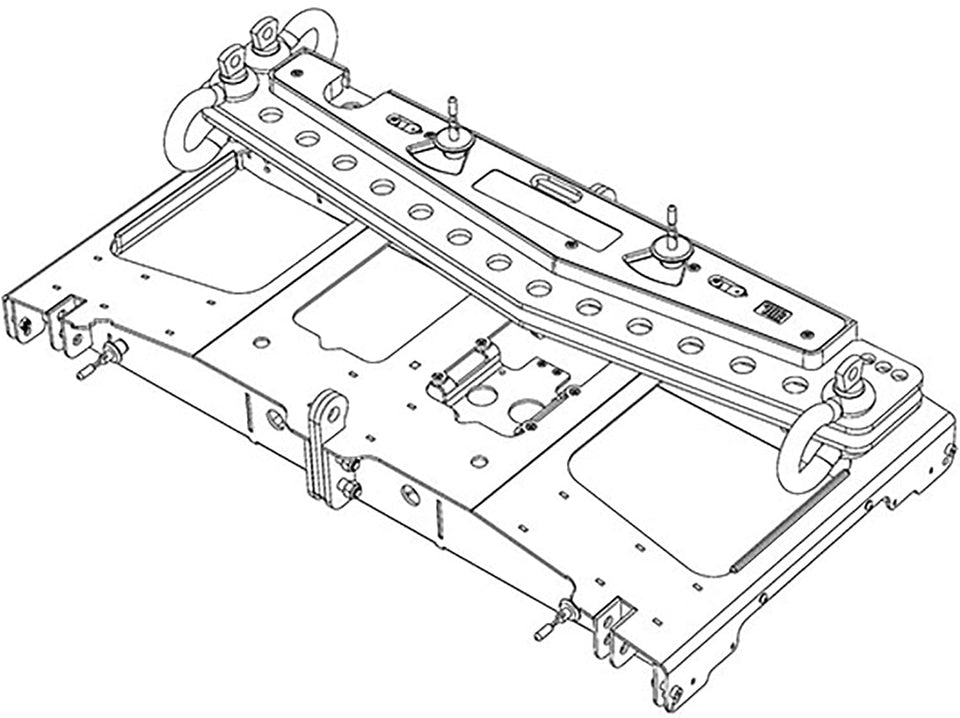

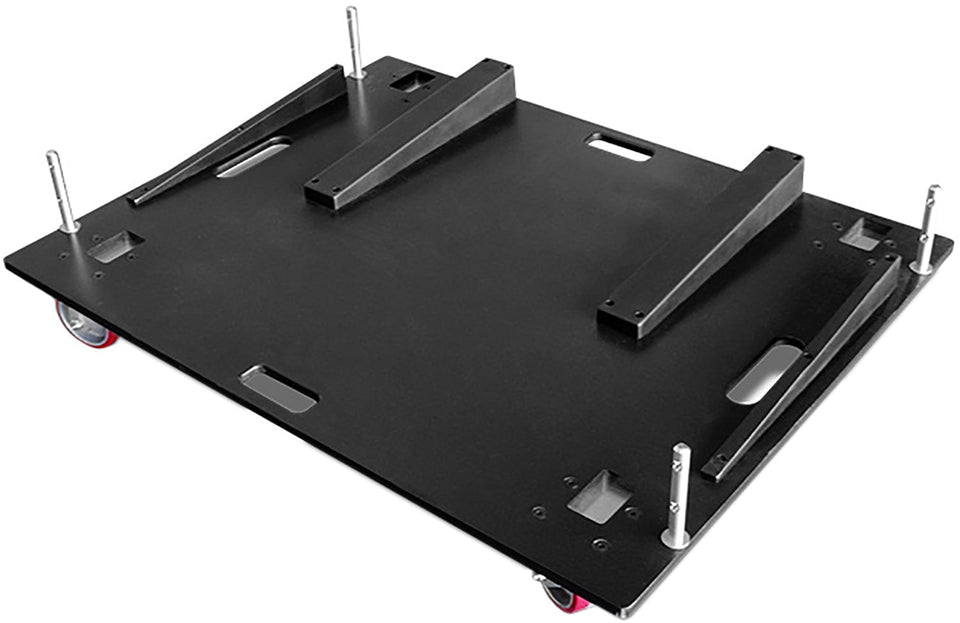

This collection lists VTX A12, V25-II and V20 modules, S28 and B28 subwoofers, and VTX array frames, covers and transport accessories. The S28 can be suspended within V25 arrays to extend low-frequency output.

Only for 70 V or 100 V systems. JBL sells several Control models in two versions: with a built-in transformer (CT) for distributed lines, or without one (C) for low-impedance amplifiers. For example, the Control 322C and 322CT, or the 227C and 227CT.

The Control 24CT MicroPlus includes a 25 W multi-tap transformer for 70 V and 100 V systems. Check the version against the wiring plan before ordering.

For small passive systems, the JBL CSA-2120 delivers 2 × 120 W at 4 or 8 Ω, is convection-cooled and plenum-rated (UL2043), with summing RCA inputs on each channel.

For larger systems with 70 V / 100 V lines or many zones, multichannel DSP amplifiers from the Power Amplifiers collection can drive JBL Control and CBT speakers; match each channel to the total speaker load.
