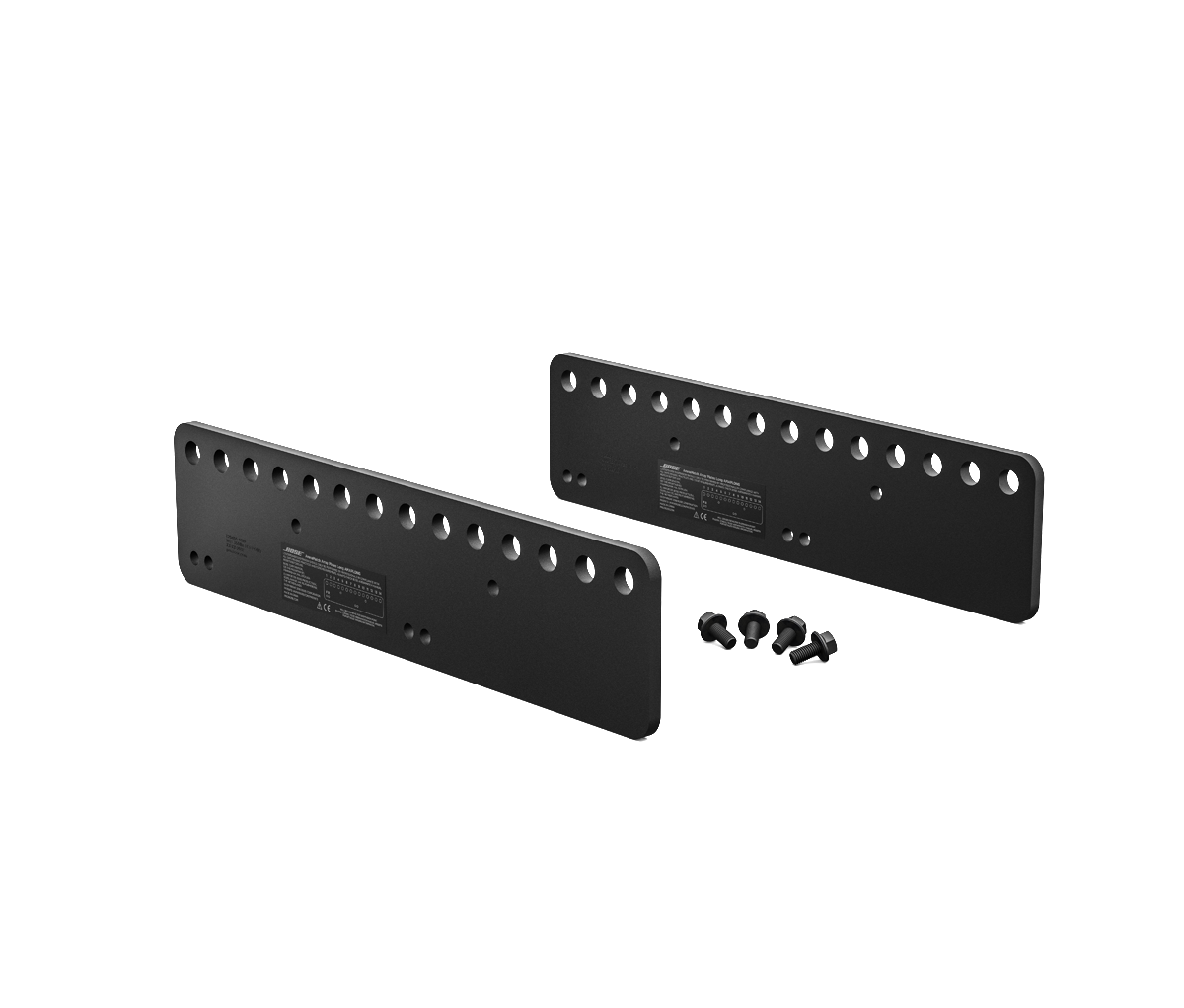

Bose ArenaMatch AMAPLONG Array Plates Long Kit for AM10, AM20 and AM40
Model 808304-0110
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Pair of long array plates, 160 kg working load limit per side
- Secures the top module of an ArenaMatch array to the building structure
- For ArenaMatch AM10, AM20 and AM40 modules only
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose ArenaMatch AMAPLONG?
The Bose ArenaMatch AMAPLONG array plates long kit is a pair of long array plates that secure the top module of an ArenaMatch array to building structures, with a working load limit of 350 lb (160 kg) on each side. It is designed for the ArenaMatch AM10, AM20 and AM40 DeltaQ loudspeakers only and ships with the fasteners it needs, for installers rigging outdoor arrays in venues across the UAE.
The Bose ArenaMatch AMAPLONG is a Bose Professional rigging accessory for the ArenaMatch AM10, AM20 and AM40 array loudspeakers. Its array plates secure the top module of an array to building structures, and all ArenaMatch accessory kits are shipped in pairs with all required fasteners.
Why this product
Key Benefits
-
Top-module array attachment
Array plates secure the top module of an ArenaMatch array to building structures.
-
Made for ArenaMatch arrays
Bose designs the ArenaMatch array rigging accessories for use with the AM10, AM20 and AM40 DeltaQ loudspeakers only.
-
Fastener-ready kit
All ArenaMatch accessory kits are shipped in pairs and include all required fasteners.
Use cases
Applications
-
Outdoor stadium and arena arrays
Rigs ArenaMatch modules into hung arrays for sports venues.
-
Educational sports complexes and outdoor hospitality venues
Supports the same array rigging at smaller outdoor sites.
Technical details
Technical Specifications
Compatibility
- Compatibility
- Bose ArenaMatch AM10, AM20 and AM40 DeltaQ array loudspeakers only
Physical
- Dimensions
- 5.7 in × 23.7 in (146 mm × 603 mm)
- Net Weight
- 37.0 lb (16.9 kg)
- Mounting Type
- Array rigging plates, supplied as a pair with fasteners and installation guide
General
- Working Load Limit
- 350 lb (160 kg), each side, single point
In the box
What's Included
-
2 × ArenaMatch AMAPLONG plates
-
4 × M12 × 30 mm screws with plastic washers
-
1 × installation guide
Installation
Installation & Mounting
Recommended Loudspeakers
Bose lists the AMAPLONG as an optional accessory for every ArenaMatch AM10, AM20 and AM40 module, whatever the waveguide. The store carries the AM20 in three versions, AM20/60, AM20/80 and AM20/100, and the AM40 in three versions, AM40/60, AM40/80 and AM40/100.
The AMAPLONG is the long array plate kit. The AMAPSHRT short array plates kit does the same job of securing the top module, so choose between them by the working load limit and plate size in the specifications of each kit. The AMAPSPRD array spreader bar adds alternate attachment points to position the array, and the AMMCPLAT module connect plate secures two modules together.
