Bose ArenaMatch AMAPSPRD Array Spreader Bar for AM10, AM20 and AM40

Model 810460-0110

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Spreader bar with 250 kg side and 476 kg center working load limits
  • Alternate attachment points to position an ArenaMatch array
  • For ArenaMatch AM10, AM20 and AM40 modules only
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions

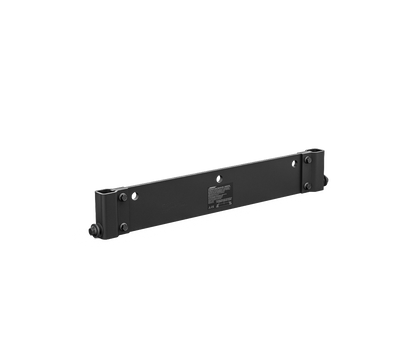

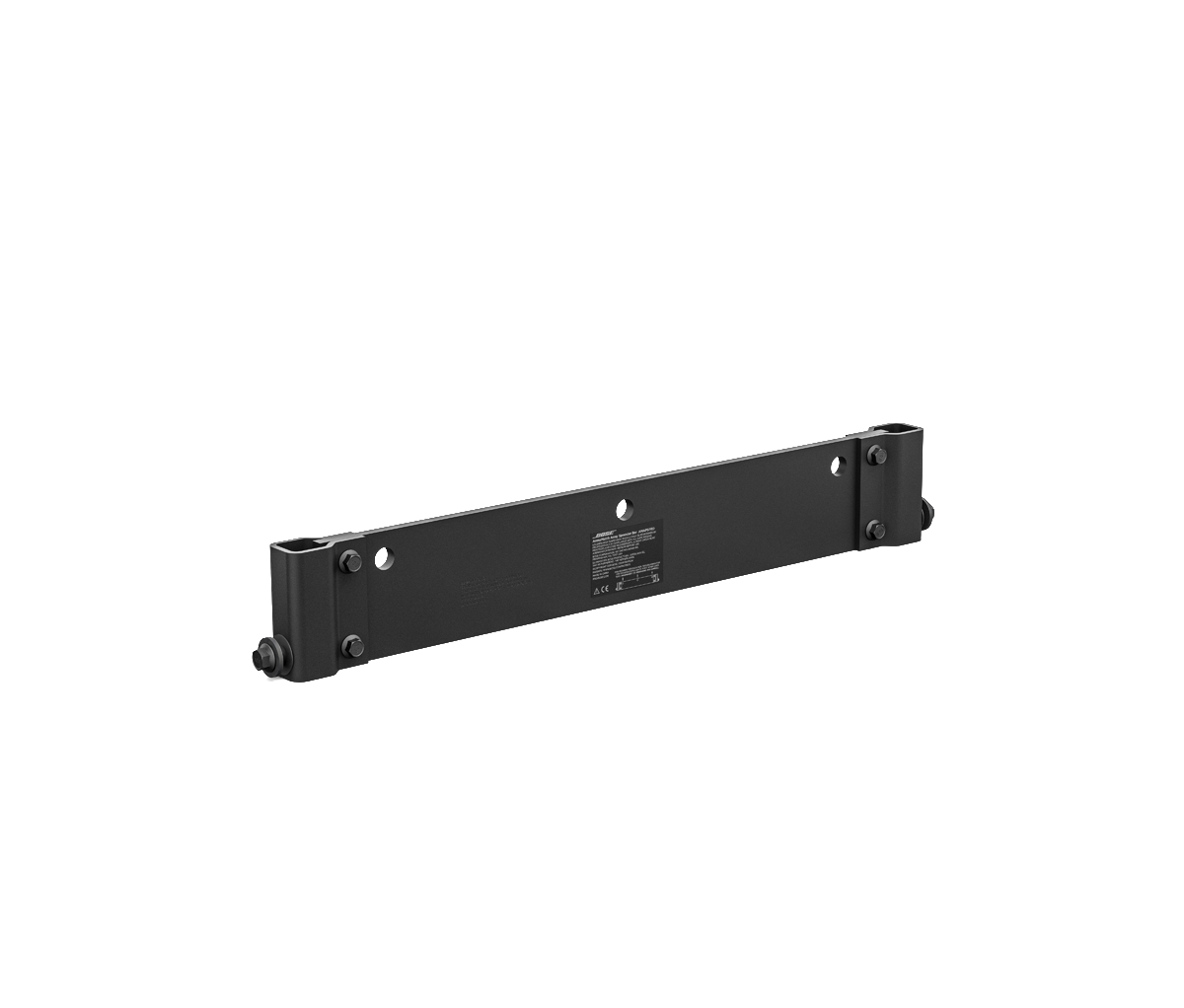

Bose ArenaMatch AMAPSPRD array spreader bar, right-facing view
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose ArenaMatch AMAPSPRD?

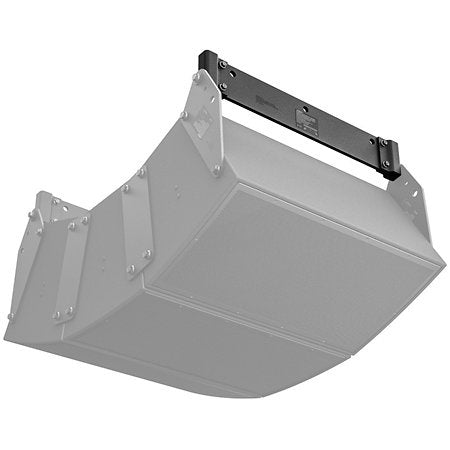

The Bose ArenaMatch AMAPSPRD array spreader bar provides alternate attachment points that help position an ArenaMatch array in its final installation location, with working load limits of 550 lb (250 kg) at each side point and 1,050 lb (476 kg) at the center point. It is designed for the ArenaMatch AM10, AM20 and AM40 DeltaQ loudspeakers only and ships with its fasteners, for installers rigging outdoor arrays in venues across the UAE.

The Bose ArenaMatch AMAPSPRD is a Bose Professional rigging accessory for the ArenaMatch AM10, AM20 and AM40 array loudspeakers. The spreader bar provides alternate attachment points to help position the array in the final installation location, and all ArenaMatch accessory kits include all required fasteners.

Why this product

Key Benefits

  • Alternate attachment points

    The spreader bar gives alternate attachment points that help position the array in the final installation location.

  • Made for ArenaMatch arrays

    Bose designs the ArenaMatch array rigging accessories for use with the AM10, AM20 and AM40 DeltaQ loudspeakers only.

  • Hardware included

    All ArenaMatch accessory kits include all required fasteners, here two M12 × 35 mm screws, two fender washers and two spacers.

Use cases

Applications

  • Outdoor stadium and arena arrays

    Positions hung ArenaMatch arrays at their final location in sports venues.

  • Educational sports complexes and outdoor hospitality venues

    Supports the same array rigging at smaller outdoor sites.

Technical details

Technical Specifications

Compatibility

Compatibility
Bose ArenaMatch AM10, AM20 and AM40 DeltaQ array loudspeakers only

Physical

Dimensions
4.7 in × 1.9 in × 31.6 in (120 mm × 47 mm × 803 mm)
Net Weight
22.7 lb (10.3 kg)
Mounting Type
Array spreader bar, supplied with fasteners and installation guide

General

Working Load Limit
550 lb (250 kg), each side point; 1,050 lb (476 kg), center point

In the box

What's Included

  • 1 × ArenaMatch AMAPSPRD array spreader bar

  • 2 × M12 × 35 mm screws

  • 2 × fender washers

  • 2 × spacers

  • 1 × installation guide

Installation

Installation & Mounting

Recommended Loudspeakers

Bose lists the AMAPSPRD as an optional accessory for every ArenaMatch AM10, AM20 and AM40 module, whatever the waveguide. The store carries the AM20 in three versions, AM20/60, AM20/80 and AM20/100, and the AM40 in three versions, AM40/60, AM40/80 and AM40/100.

The AMAPSPRD provides alternate attachment points that help position the array in its final installation location. The other ArenaMatch rigging accessories are the AMAPLONG long array plates kit and AMAPSHRT short array plates kit, which secure the top module to the building structure, and the AMMCPLAT module connect plate, which secures two modules together.

Ownership and support

Ownership & Support

Support

For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.

Complete your solution

Recommended Accessories

Expert FAQs

Which speakers does the Bose ArenaMatch AMAPSPRD fit?

The Bose ArenaMatch AMAPSPRD is designed for the ArenaMatch DeltaQ array loudspeakers AM10, AM20 and AM40 only. Bose does not list it for other loudspeaker series.

What is the working load limit of the Bose AMAPSPRD?

The Bose ArenaMatch AMAPSPRD has a working load limit of 550 lb (250 kg) at each side point and 1,050 lb (476 kg) at the center point. The bar weighs 22.7 lb (10.3 kg) and measures 4.7 in × 1.9 in × 31.6 in (120 mm × 47 mm × 803 mm).

Which load points does the AMAPSPRD rate at 250 kg and 476 kg?

The Bose ArenaMatch AMAPSPRD is rated at 550 lb (250 kg) at each side point and 1,050 lb (476 kg) at the center point. Keep each attachment within the rating of the point it uses.

How is the AMAPSPRD attached to an ArenaMatch array, and what hardware is included?

The Bose ArenaMatch AMAPSPRD spreader bar provides alternate attachment points to help position an ArenaMatch array in its final installation location. It ships with two M12 × 35 mm screws, two fender washers, two spacers and an installation guide.

What is the Bose part number of the AMAPSPRD?

The Bose part number of the ArenaMatch AMAPSPRD array spreader bar is 810460-0110.

Does an AMAPSPRD spreader bar replace the rest of the array rigging?

No. The spreader bar is part of a designed ArenaMatch suspension assembly. Select compatible plates, module connections and suspension points using the manufacturer’s rigging guidance. Its individual rating does not establish the permitted load of every possible array.
