Bose ArenaMatch AMMCPLAT Module Connect Plate for AM10, AM20 and AM40
Model 807140-0110
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Pair of connect plates, 360 kg working load limit per side
- Secures two ArenaMatch loudspeaker modules together
- For ArenaMatch AM10, AM20 and AM40 modules only
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose ArenaMatch AMMCPLAT?

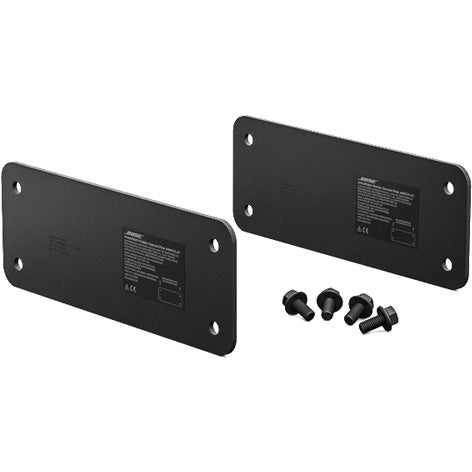

The Bose ArenaMatch AMMCPLAT module connect plate is a pair of plates that secure two ArenaMatch loudspeaker modules together, with a working load limit of 800 lb (360 kg) on each side. It is designed for the ArenaMatch AM10, AM20 and AM40 DeltaQ loudspeakers only and ships with the fasteners it needs, for installers rigging outdoor arrays in venues across the UAE.
The Bose ArenaMatch AMMCPLAT is a Bose Professional rigging accessory for the ArenaMatch AM10, AM20 and AM40 array loudspeakers. The module connect plate secures two ArenaMatch loudspeaker modules together, and all ArenaMatch accessory kits are shipped in pairs with all required fasteners.
Why this product
Key Benefits
-
Module-to-module connection
The connect plates secure two ArenaMatch loudspeaker modules together in an array.
-
Made for ArenaMatch arrays
Bose designs the ArenaMatch array rigging accessories for use with the AM10, AM20 and AM40 DeltaQ loudspeakers only.
-
Fastener-ready kit
All ArenaMatch accessory kits are shipped in pairs and include all required fasteners, here eight M12 × 30 mm screws with plastic washers.
Use cases
Applications
-
Outdoor stadium and arena arrays
Joins ArenaMatch modules into hung arrays for sports venues.
-
Educational sports complexes and outdoor hospitality venues
Supports the same array rigging at smaller outdoor sites.
Technical details
Technical Specifications
Compatibility
- Compatibility
- Bose ArenaMatch AM10, AM20 and AM40 DeltaQ array loudspeakers only
Physical
- Dimensions
- 5.2 in × 13.7 in (131 mm × 347 mm)
- Net Weight
- 9.7 lb (4.4 kg)
- Mounting Type
- Module connect plates, supplied as a pair with fasteners and installation guide
General
- Working Load Limit
- 800 lb (360 kg), each side, single point, front & rear rigging
In the box
What's Included
-
2 × ArenaMatch AMMCPLAT plates
-
8 × M12 × 30 mm screws with plastic washers
-
1 × installation guide
Installation
Installation & Mounting
Recommended Loudspeakers
Bose lists the AMMCPLAT as an optional accessory for every ArenaMatch AM10, AM20 and AM40 module, whatever the waveguide. The store carries the AM20 in three versions, AM20/60, AM20/80 and AM20/100, and the AM40 in three versions, AM40/60, AM40/80 and AM40/100.
The AMMCPLAT joins two modules together, while the array plates attach the top module of an array to the building structure: the AMAPLONG long kit and the AMAPSHRT short kit are the two plate options. The AMAPSPRD array spreader bar adds alternate attachment points to position the array.
Ownership and support
Ownership & Support
Support
For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.
