Bose ArenaMatch AM10/80 Outdoor DeltaQ Array Loudspeaker, 80° x 10°

Model 794042-6650

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 80° × 10° coverage, 55 Hz to 18 kHz (-10 dB)
  • One 14 in (356 mm) LF14 woofer and six EMB2S compression drivers
  • 750 W passive continuous, 3000 W peak (Bose test)
  • IP55 direct-exposure outdoor rating, EN 54-24 certified, 36.3 kg
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions

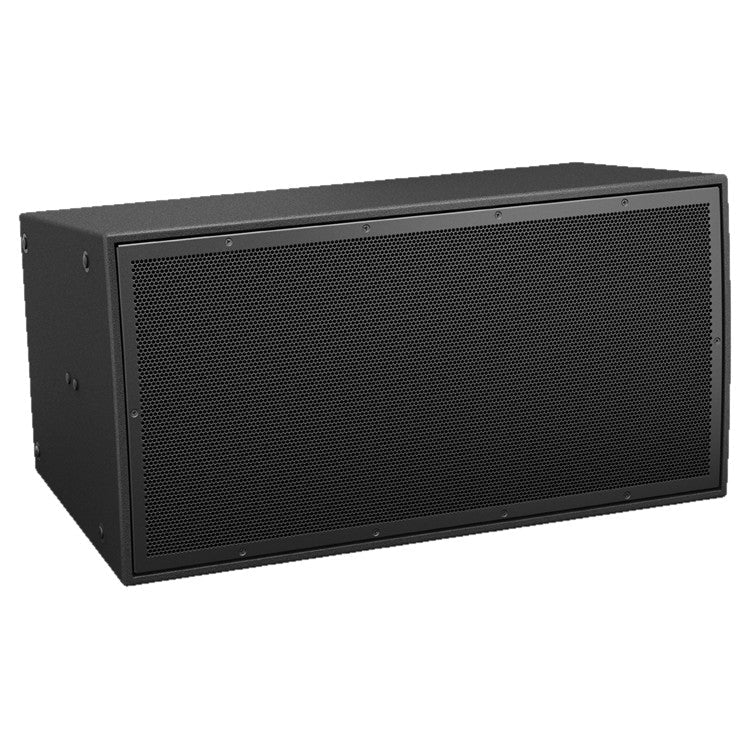

Bose ArenaMatch AM10/80 outdoor array module, front angle view, grille on
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose ArenaMatch AM10/80?

The Bose ArenaMatch AM10/80 is an outdoor DeltaQ array loudspeaker module with an 80° × 10° coverage pattern, one 14 in woofer, six compression drivers and 750 W passive power handling. It is rated IP55 for direct outdoor exposure and certified to EN 54-24, built for long-throw music and speech in stadiums, arenas and large outdoor venues such as those in the UAE. Part code 794042-6650.

The Bose ArenaMatch AM10/80 is the 10° vertical module of the ArenaMatch DeltaQ outdoor array series, fitted with an 80° horizontal waveguide. Modules with 10°, 20° or 40° vertical coverage combine into arrays whose directivity changes from box to box to match the audience area, and the AM10 is the narrow, long-throw module for the far seats.

Why this product

Key Benefits

  • DeltaQ array design

    Directivity, or Q, can vary from module to module in an array, so coverage follows the shape of the seating and listeners near and far hear consistent, intelligible sound.

  • Long throw with a mid-width pattern

    The 10° vertical pattern reaches distant seats while the 80° waveguide covers a wider block of seating than the 60° version, at 128 dB continuous at 1 m in passive mode.

  • Replaceable horizontal waveguides

    The 80° waveguide can be swapped for a 60° or 100° one, and left and right arrays can use different waveguides to form asymmetric patterns.

  • High-output transducers

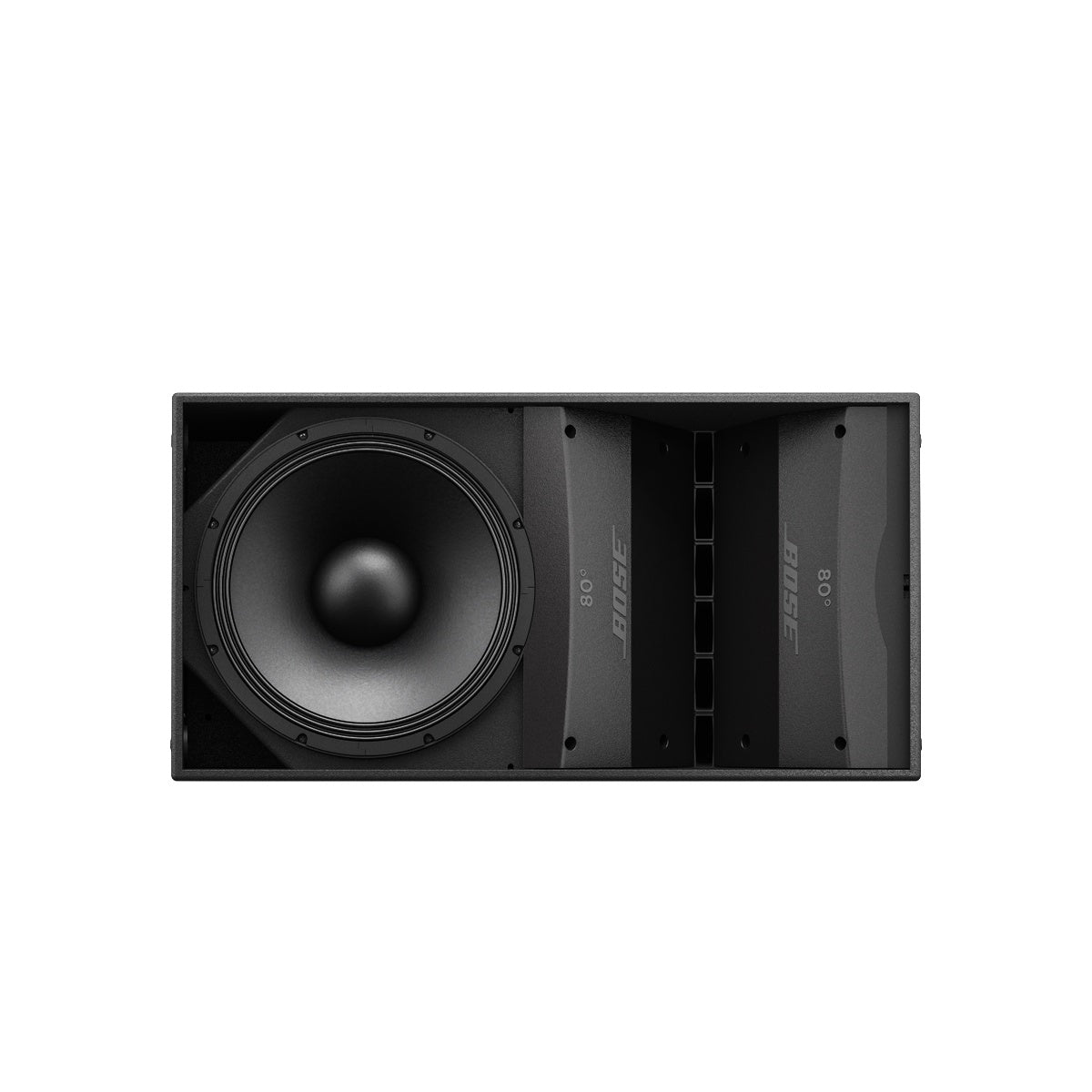

    One LF14 neodymium 14 in woofer and six titanium-diaphragm EMB2S compression drivers deliver full-range music and clear speech at stadium distances.

  • Built for direct outdoor exposure

    An exterior-grade birch plywood cabinet with polyurea coating, three-layer stainless steel grille, water-resistant woofer cone and moulded input cover give an IP55 rating.

  • Passive, bi-amp or 70 V / 100 V

    Every module ships with a passive crossover, bi-amp inputs and a 70 V / 100 V transformer, so the same box suits low-impedance arrays or distributed lines.

Use cases

Applications

  • Professional stadiums and arenas

    The 10° module covers the upper and rear seating from a main array.

  • School and university sports complexes

    Outdoor rating and EN 54-24 certification suit fields that also need emergency announcements.

  • Outdoor hospitality and dining

    Weatherproof arrays carry music and speech across large terraces and event lawns.

  • Places of worship

    Arrays deliver clear speech to large outdoor congregations.

Technical details

Technical Specifications

System

System Type
Passive two-way DeltaQ array module, outdoor rated
Low-Frequency Driver
1 × Bose Professional LF14 neodymium 14 in (356 mm) woofer, 4 in (102 mm) voice coil
High-Frequency Driver
6 × Bose Professional EMB2S titanium-diaphragm neodymium compression drivers, 2 in (51 mm) voice coil
Recommended Crossover
60 Hz high-pass, 12 dB per octave minimum
Crossover
950 Hz, internal passive or external bi-amp (ControlSpace presets)

Frequency

Frequency Response
65 Hz to 16 kHz (-3 dB)
Frequency Range
55 Hz to 18 kHz (-10 dB)

Performance & Coverage

Coverage
80° × 10° (horizontal × vertical)
Sensitivity
99 dB SPL passive (1 W at 1 m); 94 dB LF, 106 dB HF bi-amp
Maximum SPL
128 dB continuous, 134 dB peak at 1 m, passive (Bose test); 130 dB continuous (2-hour test)

Power

Power Handling
750 W continuous, 3000 W peak passive (Bose test); 1250 W, 5000 W peak (AES)
Bi-Amp Power Handling
LF 600 W, HF 150 W continuous (Bose test)
Recommended Amplifier Power
Passive 750 W to 1500 W; bi-amp LF 600 W to 1200 W, HF 150 W to 300 W
Nominal Impedance
8 Ω passive; 8 Ω + 8 Ω bi-amp
Transformer Taps 70V
100 W, 200 W, 400 W
Transformer Taps 100V
200 W, 400 W

Connectivity

Input Connector
Barrier strips: passive in/through, bi-amp and 70 V / 100 V, with cover

Physical

Enclosure
Exterior-grade birch plywood, two-part polyurea coating
Grille
Powder-coated perforated stainless steel, acoustic foam, stainless steel mesh
Mounting
8 × M12 inserts (4 per side), 2 × M10 and 2 × M6 stainless inserts, 1 × M10 rear safety point
Dimensions
409 × 783 × 420 mm (16.1 × 30.8 × 16.5 in)
Weight
36.3 kg (80 lb)
Colour
Black

Environmental

IP Rating
IP55 per EN 60529; IP33C per EN 54-24
Outdoor Rating
Rated for direct-exposure outdoor installations

Certifications & Warranty

Certifications
EN 54-24:2008 loudspeaker for voice alarm systems

In the box

What's Included

  • 1 × ArenaMatch AM10 module with 80° waveguide

  • 1 × input panel cover

  • 8 × input cover screws

  • 1 × installation guide

Installation

Installation & Mounting

Recommended Amplifiers

In passive mode, one channel of the Bose PowerShareX PSX4804D delivers 1200 W at 8 Ω, inside Bose's recommended 750 W to 1500 W for the AM10, so one amplifier powers four modules. On a 70 V or 100 V line the same 1200 W channel runs up to three AM10/80 modules on the 400 W tap.

For bi-amp operation, a PSX4804D channel (1200 W) suits the LF section's 600 W to 1200 W range, and a channel of the Bose PowerShareX PSX1204D (300 W) suits the HF section's 150 W to 300 W range. Bose's AM10 presets are loaded in ControlSpace Designer, which also programs PowerShareX amplifiers.

Recommended Rigging

For a single point-source module, the Bose ArenaMatch AMUBRKT U-bracket fixes the AM10 to a wall or structure. For arrays, Bose lists the AMAPSHRT array plates short kit, AMAPLONG array plates long kit, AMMCPLAT module connect plate, AMAPSPRD spreader bar and AMPULL pullback bracket as AM10 accessories. The M12 inserts also accept custom array frames.

Recommended Waveguides

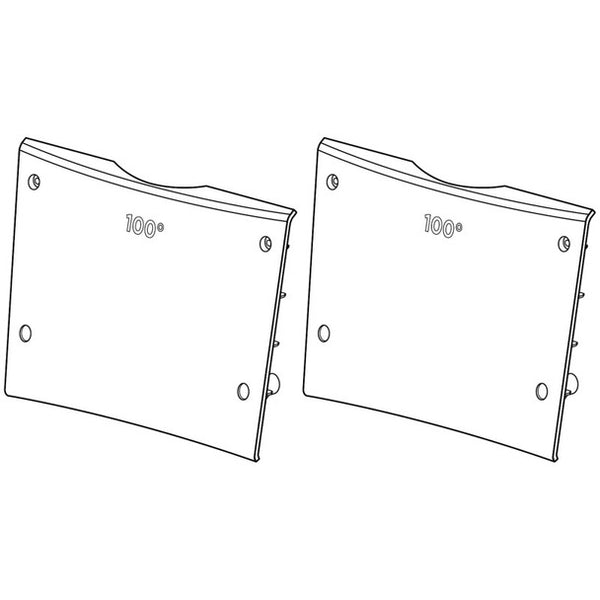

The AM10/80 ships with the 80° waveguide. To change coverage later without changing the module, fit an AM10 60° waveguide for a narrower pattern or an AM10 100° waveguide for a wider one.

Ownership and support

Ownership & Support

Support

For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.

Complete your solution

Recommended Accessories

Expert FAQs

What is the power rating of the Bose ArenaMatch AM10/80?

The Bose ArenaMatch AM10/80 handles 750 W continuous and 3000 W peak in passive mode (Bose extended-lifecycle test), or 1250 W and 5000 W peak on the AES test. In bi-amp mode the LF section takes 600 W and the HF section 150 W continuous.

Which amplifier works with the Bose AM10/80?

The Bose AM10/80 needs 750 W to 1500 W per module at 8 Ω in passive mode, which a single 1200 W channel of the Bose PowerShareX PSX4804D provides. For bi-amp use, Bose recommends 600 W to 1200 W for the LF section and 150 W to 300 W for the HF section, with presets from ControlSpace Designer.

Can the Bose AM10/80 run on a 70 V or 100 V line?

The Bose AM10/80 has a built-in transformer with 70 V taps of 100 W, 200 W and 400 W and 100 V taps of 200 W and 400 W. One 1200 W amplifier channel can drive three modules on the 400 W tap.

Can the Bose AM10/80 be bi-amped?

The Bose AM10/80 ships ready for bi-amp operation with separate LF and HF inputs at 8 Ω each. The internal crossover point is 950 Hz, and in bi-amp mode Bose ControlSpace presets handle the crossover and loudspeaker EQ instead.

Can I change the horizontal coverage of the Bose AM10/80?

The Bose AM10/80 uses a replaceable horizontal waveguide, so its 80° pattern can be changed to 60° or 100° with a waveguide kit. Left and right arrays can also use different waveguides to form asymmetric patterns.

Is the Bose AM10/80 suitable for direct outdoor exposure?

The Bose AM10/80 is rated for direct-exposure outdoor installations, tested to IP55 per EN 60529. It has a three-layer stainless steel grille, water-resistant woofer cone coating, polyurea coated birch plywood cabinet and a moulded input cover.

Is the Bose AM10/80 certified for voice alarm systems?

The Bose AM10/80 is certified to EN 54-24:2008 as a loudspeaker for voice alarm systems for fire detection and fire alarm systems in buildings. Under EN 54-24 its ingress rating is IP33C; the installation guide gives the certified configuration.

How is the Bose AM10/80 rigged?

The Bose AM10/80 has eight M12 inserts (four per side), M10 and M6 stainless inserts and an M10 rear safety point. It hangs from the AMUBRKT U-bracket as a single module or from ArenaMatch array plates and spreader bar in an array, and weighs 36.3 kg.
