MAXHUB collaboration displays, signage and UC devices

MAXHUB makes interactive displays for meeting rooms and classrooms, commercial signage displays, and video conferencing devices. This collection holds 61 MAXHUB products: interactive displays in the XBoard V7, V6 Classic, ViewPro and Transcend, V5, U and E series from 55 to 86 inches, CMA and PN signage displays from 43 to 98 inches, Ultra-Wide commercial displays, and UC video bars, cameras, speakerphones and a screen-sharing box.

CorporateAV.ae is an authorised dealer of MAXHUB in the UAE. The main choice is between an interactive display for people who write and meet at the screen, a signage display for content that people watch, and a UC device that adds video calls to an existing screen. For all brands of touch displays, see Interactive Panels.

Presenter at a MAXHUB XBoard V7 display with remote participants on screen

Choosing between MAXHUB families

XBoard V7 meeting room displays

The XBoard V7 is MAXHUB's all-in-one meeting display. The 86-inch V8650 is a 4K IPS screen rated at 350 nits with 50 touch points, a Windows PC module with a 12th Gen Intel processor, three 50 MP cameras with 5x hybrid zoom, a 16-microphone array with a 15 m pick-up range and a 2.1 speaker system. It has 2 HDMI inputs and a USB-C input with DisplayPort 1.2, and is rated for 16 hours a day, 7 days a week.

CMA signage displays

MAXHUB CMA displays are 4K signage screens from 43 to 98 inches, all rated at 500 nits and for 24/7 operation with a 50,000-hour life. The series has a full-function USB-C port with 65 W laptop charging, a non-glare coating and a conformal coating against salt, dust and humidity, and the 65 to 98-inch models add an 80-pin OPS slot. For screens of 75 inches and more, see LED & Large Format Displays.

Interactive displays for classrooms and teams

The other MAXHUB interactive series cover different budgets and rooms: V6 Classic, ViewPro and Transcend for meeting rooms, U and E series for education, the S series, and the B8610 Smart Blackboard. Most are 4K touch displays in 55, 65, 75 and 86 inches. Choose by whether the room needs a built-in camera and microphones, as on the XBoard V7, or uses a separate camera or video bar.

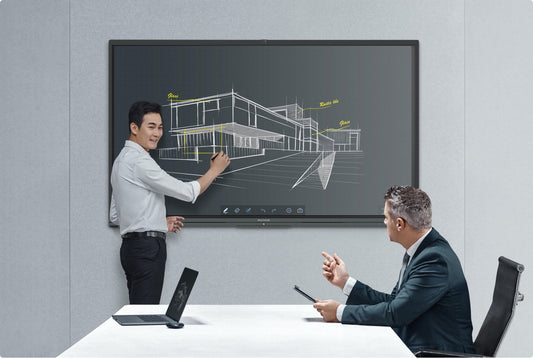

Two people writing on a MAXHUB XBoard V7 whiteboard

Video calls and sharing

UC video bars, cameras and speakerphones

MAXHUB UC devices add video calls to any screen. This collection lists the Xbar U50 and W70 video conferencing systems, the UC S07 and S15 all-in-one video bars, the UC P30 4K dual-eye camera, the UC W31 portable USB webcam, and the BM35 and BM45 speakerphones; see Video Bars & All-in-One Systems and Speakerphones.

Wireless sharing

MAXHUB Share lets laptops and phones share to MAXHUB displays without cables, by app or wireless dongle; the XBoard V7 also supports Miracast, AirPlay and Chromecast. The MAXHUB WB05 screen-sharing box adds wireless sharing to other screens. For one-button sharing systems from all brands, see Wireless Presentation & Screen Sharing.

Where MAXHUB is used

Offices use MAXHUB XBoard displays in huddle rooms and boardrooms as the screen, whiteboard and video call system in one; see Boardrooms & Meeting Rooms. Schools use the U and E series interactive displays, and retail and lobbies use CMA signage. MAXHUB rates the XBoard V7 for 0 °C to 40 °C indoor use, and the CMA conformal coating is useful in humid coastal UAE buildings.

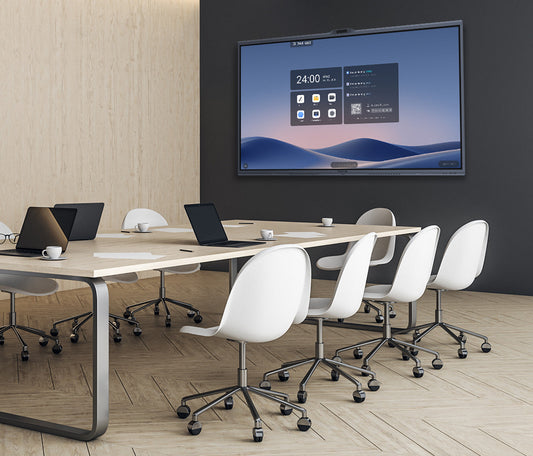

Boardroom video call on a MAXHUB XBoard V7 display at the end of a long table

Installation and planning

An 86-inch MAXHUB XBoard V8650 weighs 59.95 kg and uses an 800 × 600 mm VESA pattern; the 98-inch CMA ND98CMA weighs 69.90 kg. Before ordering, check:

Wall or stand: a wall rated for the weight, or a mobile stand for shared rooms.
Camera position: on the XBoard V7 the cameras are built in; for other series, plan where the video bar sits.
Power and network: a socket and LAN point behind the screen, and a USB-C or HDMI cable route from the table.

For wall mounts and mobile stands, the VSYS range covers displays of these sizes. The 86-inch MAXHUB XBoard V8650 (59.95 kg, VESA 800 × 600 mm) fits the VSYS VSVW13-610T push-pull wall mount, rated 130 kg for 45 to 110 inches, and the VSYS VTLX18H-610TW motorised cart, rated 120 kg for 55 to 100 inches on VESA patterns up to 1000 × 600 mm.

MAXHUB families in this collection

The 61 MAXHUB products fall into three groups.

Interactive displays: MAXHUB XBoard V7 V8650, MAXHUB V6 Classic C8630 and the U, E, S and V5 series.
Signage displays: MAXHUB ND86CMA and other CMA, CMA-T and PN models from 43 to 98 inches, plus the UW92NA and UW105NA Ultra-Wide displays.
UC and sharing: MAXHUB Xbar U50, MAXHUB UC S15, cameras, speakerphones and the MAXHUB WB05 sharing box.

To plan a MAXHUB meeting room or classroom, use Request a Project Quote with the room size, number of seats and the video call platform you use.

Applications and technical planning

All-in-one meeting rooms

Huddle rooms and boardrooms use the MAXHUB XBoard V7 as the screen, whiteboard and video call system in one, with three 50 MP cameras and a 16-microphone array built in.
Explore Boardrooms & Meeting Rooms
Classrooms

Schools use MAXHUB U and E series interactive displays for lessons, with multi-touch writing and wireless sharing from student devices.
Explore Education & Training Spaces
Lobby and retail signage

Lobbies and shops use MAXHUB CMA signage, 4K and 500 nits, rated for 24/7 operation, in sizes from 43 to 98 inches.
Explore Digital Signage Displays

Frequently asked questions

Is CorporateAV.ae an authorised MAXHUB dealer in the UAE?

Yes. CorporateAV.ae is an authorised dealer of MAXHUB in the UAE and supplies MAXHUB interactive displays, CMA and PN signage displays, Ultra-Wide commercial displays, and UC video bars, cameras and speakerphones.

This collection holds 61 MAXHUB products, including the XBoard V7 series, V6 Classic, ViewPro and Transcend, U and E education series, CMA signage from 43 to 98 inches and the Xbar U50 and W70 video systems.

What is the MAXHUB XBoard V7?

The MAXHUB XBoard V7 is an all-in-one meeting room display with a built-in Windows PC module, cameras, microphones and speakers. The 86-inch V8650 is a 4K IPS screen rated at 350 nits with 50 touch points and a 2.5 ms touch response.

It has three 50 MP cameras with 5x hybrid zoom and a 99° field of view, a 16-microphone array with a 15 m pick-up range and a 2.1 speaker system rated 2 × 10 W plus 20 W, so a room needs no separate camera or soundbar.

Which MAXHUB display should I choose for a meeting room?

For rooms that hold video calls from the screen, choose the XBoard V7, which has cameras, a 16-microphone array and a Windows PC module built in. For rooms that only present and whiteboard, a V6 Classic, ViewPro or Transcend display is enough.

Choose 65 inches for huddle rooms, 75 inches for mid-size rooms and 86 inches for larger rooms. If a room already has a video bar, a display without a camera avoids paying twice for the same function.

What is the MAXHUB CMA series?

The MAXHUB CMA series is a range of 4K commercial signage displays from 43 to 98 inches, all rated at 500 nits and for 24/7 operation with a 50,000-hour life. They support portrait and landscape installation.

They have a full-function USB-C port for screen sharing with 65 W laptop charging, a non-glare coating and a conformal coating against salt, dust and humidity. The 65 to 98-inch models also have an 80-pin OPS slot for a plug-in computer.

How heavy are large MAXHUB displays?

The 86-inch MAXHUB XBoard V8650 weighs 59.95 kg and uses an 800 × 600 mm VESA pattern. In the CMA signage range, the ND75CMA weighs 34.65 kg, the ND86CMA 43.15 kg and the ND98CMA 69.90 kg.

The VSYS VSVW13-610T wall mount (130 kg) and VTLX18H-610TW cart (120 kg) take the XBoard's weight and 800 × 600 mm pattern; for any model, use a mount rated above its weight and check the wall construction. Plan two or more people for handling 86-inch and larger screens.

Can laptops share to a MAXHUB display without cables?

Yes. MAXHUB Share lets laptops and phones share to MAXHUB displays by app or with a wireless dongle, and the XBoard V7 also supports Miracast, AirPlay and Chromecast.

For a wired connection, the XBoard V7 V8650 has a USB-C input that carries DisplayPort 1.2 video, and 2 HDMI inputs with 4K at 60 Hz. The MAXHUB WB05 sharing box in this collection adds wireless sharing to other screens.

Which MAXHUB UC devices are in this collection?

This collection lists the MAXHUB Xbar U50 and W70 video conferencing systems, the UC S07 and S15 all-in-one video bars, the UC P30 4K dual-eye camera, the UC W31 portable USB webcam and the BM35 and BM45 speakerphones.

They add cameras, microphones and speakers to screens that do not have them. Check the platform support of each model with your video call provider before choosing, because MAXHUB offers versions for different platforms.

How long can MAXHUB displays run each day?

MAXHUB rates the CMA signage displays for 24/7 operation with a 50,000-hour life, and the XBoard V7 V8650 for 16 hours a day, 7 days a week, also with a 50,000-hour life.

Choose CMA signage for screens that run day and night in lobbies and shops, and use the scheduled power settings on meeting room displays so they sleep outside office hours.

Does the MAXHUB XBoard V7 run Windows?

Yes. The XBoard V7 V8650 runs MAXHUB OS on a Windows PC module, the MT71 series with a 12th Gen Intel processor, so Windows meeting and whiteboard software runs on the display itself.

The PC module has Wi-Fi 6, its own USB and HDMI ports and a LAN port. The touch return also works with Windows, Mac OS, Android, Linux and Chrome OS laptops connected by cable.

How much power does a MAXHUB XBoard V7 use?

MAXHUB rates the 86-inch XBoard V7 V8650 at 175 W typical and 465 W maximum, with 0.5 W in standby, from a 100 V to 240 V supply.

That input range covers UAE mains at 230 V. Plan a dedicated socket behind the display and allow for the maximum figure when several displays share one circuit.

For help confirming the technical requirements for your project, contact CorporateAV: Call +971 56 498 8088, WhatsApp +971564988088, or email info@corporateav.ae.
